MULTICOMP PRO MP002546 Circular Connectors

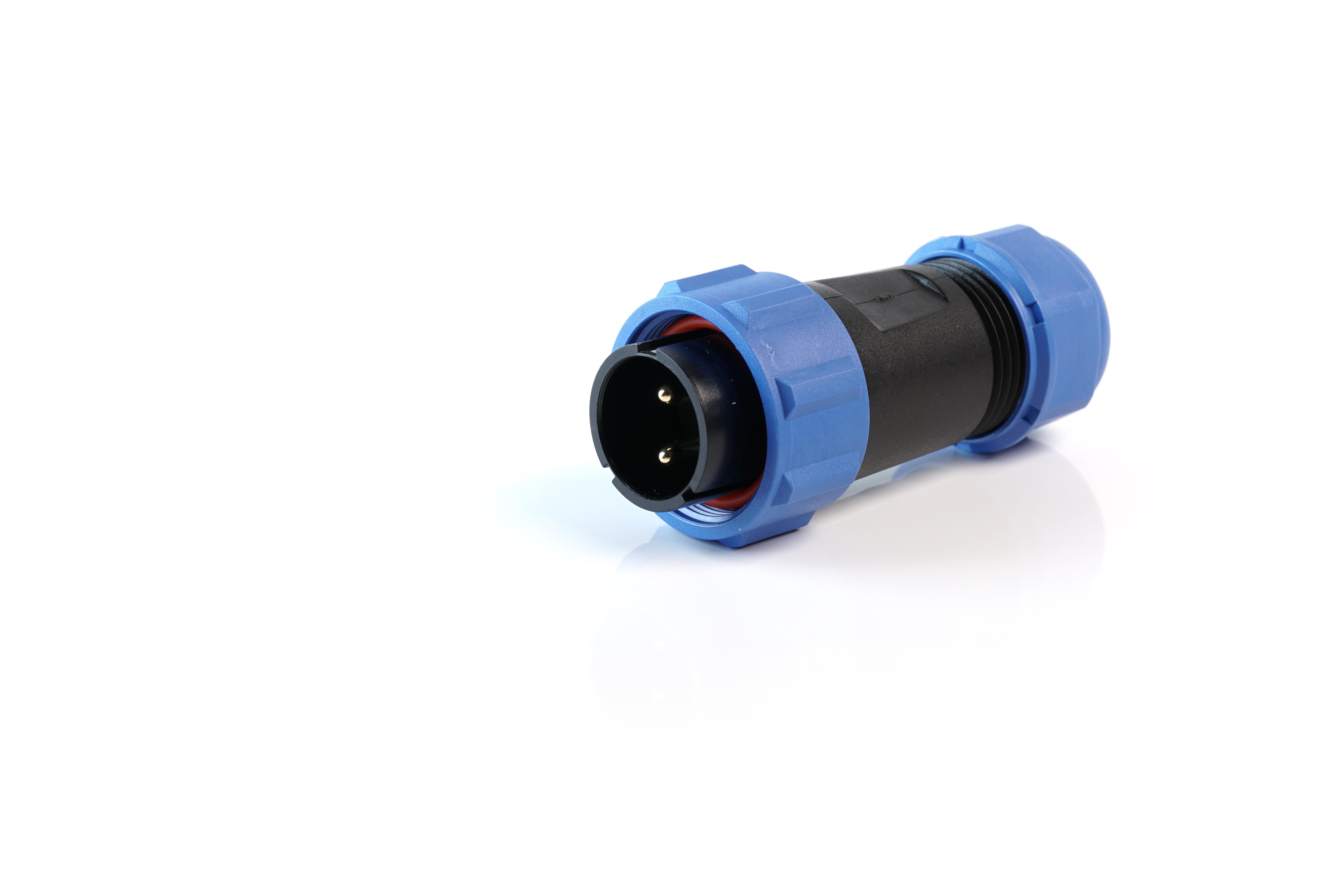

The MP-T21 IP68 series connectors are robust, weatherproof, and durable, designed for indoor and outdoor use with threaded coupling and IP68 sealing. They are available in panel, cable, and inline configurations with solder and screw termination options. With a 21mm panel cut-out, they accommodate 2 to 12 poles, offering reliable electrical connections for automation, medical devices, security, and industrial automation applications. An IP68 cap enhances protection against environmental elements, ensuring long-term performance and safety in demanding industrial environments.
MULTICOMP PRO MP002546 Circular Connectors Specifications:
- IP Rating: IP68
- Material: Nylon66 (shell, locking nut, back shell, compressing nut, retaining nut), Brass with gold plating (contacts), PPS (insert)
- Fire Resistance: V-O0
- Temperature Range: -40°C to +85°C
- Rated Current (A): 30, 15, 5 depending on contact
- Rated Voltage (AC V): up to 500V
- Test Voltage (AC V): 1500V for 1 min
- Contact Resistance: 1 mΩ (for 2-5 contacts), 2.5-5 mΩ (for 7-12 contacts)
- Termination: Solder or Screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12 poles
- Mating Cycle: 500
- Dimensions: Fits 21mm panel cutout, cable outer diameter range 7-12mm
- Additional features: Rubber O-rings, retaining nut, lock, and back shells for secure connection
Buy the Buy multicomp:ro Circular Connectors Part Number MP002546 Online
Secure your connections with multicomp:ro Circular Connectors MP002546. Designed for durability and rugged environments, these IP68-rated connectors ensure reliable performance in industrial automation, medical, and security applications. With multiple configuration options, including panel, cable, and inline mounts, and various pole counts, they provide flexible, high-quality solutions for complex electronic systems. Invest in proven industrial connectors today for long-lasting, environmental resistance and a secure connection in harsh conditions.
Buy multicomp:ro MP002546 now and experience unmatched reliability and industrial-grade performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002546?
You can click on the BUY or RFQ button to purchase MP002546 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002546?
You can download the MP002546 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002546?
MULTICOMP PRO
