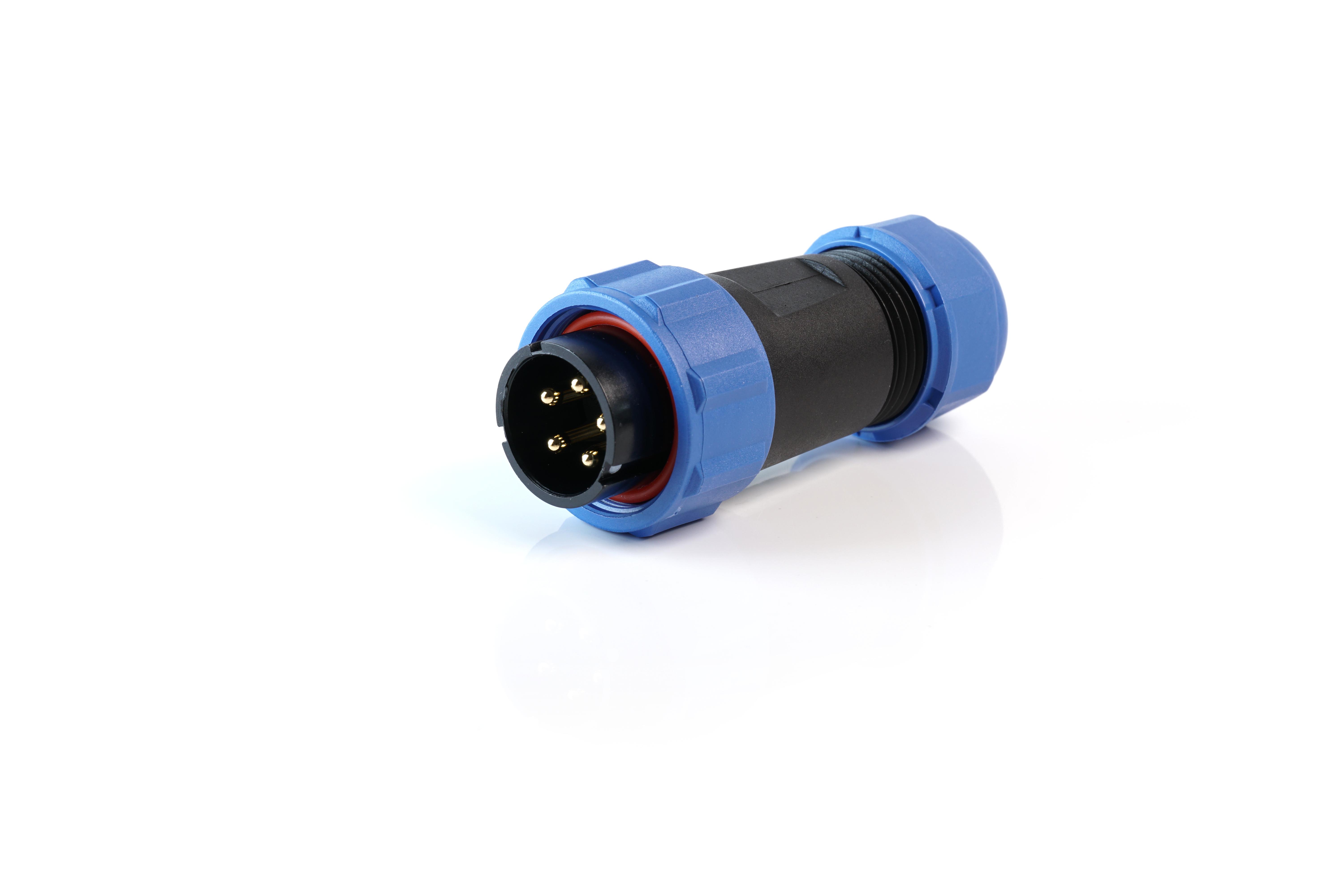

MULTICOMP-PRO MP002553 IP68 Connector
The MP-T21 IP68 series offers a highly durable set of connectors tailored for challenging environments. These connectors feature threaded coupling mechanisms and IP68 weatherproof sealing, making them suitable for outdoor and industrial applications. They support cable-to-panel or cable-to-cable connections, with options for solder or screw terminations. Available in various pole configurations from 2 to 12 poles, they facilitate secure, waterproof connections for automation, medical, security, and measurement systems. An IP68 dust cap provides extra environmental protection, ensuring reliable performance in harsh conditions.
MULTICOMP-PRO MP002553 IP68 Connector Specifications:
- IP68 rated weatherproof sealing
- Threaded coupling connector
- Panel mount, cable mount, inline configurations
- Supports 2, 3, 4, 5, 7, 9, 12 poles
- Supports solder and screw terminations
- Maximum cable diameter: 12mm
- Operating temperature: -40°C to +85°C
- Rated current: 30A (2-4 poles), 15A (5 poles), 5A (7-12 poles)
- Rated voltage: 500V AC
- Dimensional compatibility: 21mm panel cut-outs
- Includes IP68 dust cap for extra protection
- Material: Nylon66 shell, brass contacts with gold plating
- Insert Material: PPS, max temperature 260°C
- Contact Resistance: 1-5 mΩ
- Mating cycle: 500 cycles
- Certification: RoHS compliant
Buy the multicomp Series IP68 Connector: MP002553
Order the multicomp Series IP68 Connector MP002553 online now for reliable, waterproof, and durable connections suitable for industrial automation, outdoor installations, and harsh environment applications. These connectors are designed with threaded coupling, support multiple configurations from 2 to 12 poles, and provide screw or solder termination options. They feature an IP68 sealing rating, ensuring protection against dust and water ingress. Including an IP68 dust cap, they are ideal for indoor and outdoor applications requiring high durability and environmental resistance. Buy now for long-lasting, secure connections.
Get multicomp Series IP68 connector MP002553 today—designed for durable, waterproof performance in industrial and outdoor environments.
