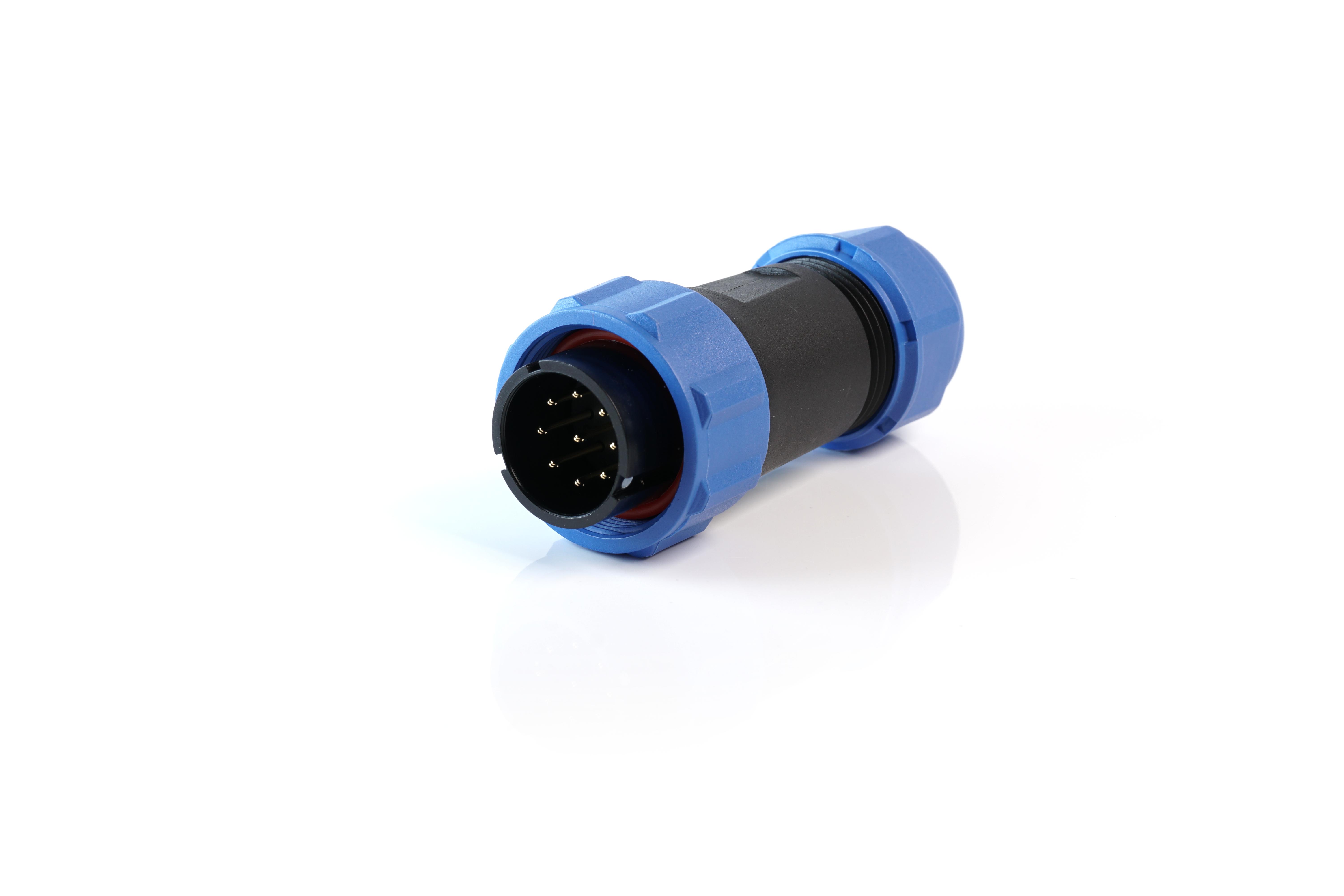

MULTICOMP PRO MP002559 Circular Connectors
The MP-T21 IP68 series offers highly durable connectors suitable for harsh environments, featuring threaded coupling and weather sealing to IP68. Designed for indoor and outdoor applications, they come in panel, cable, and inline types for flexible installation. Available with 2 to 12 poles and options for solder or screw termination, these connectors are ideal for automation, industrial control, medical devices, security systems, and testing equipment. An IP68 dust cap is also available, ensuring reliable sealing. Their robust construction and high IP rating guarantee long-term performance in demanding settings.
MULTICOMP PRO MP002559 Circular Connectors Specifications:
- Protection Rating: IP68 for dust and water ingress protection
- Material: Nylon66 shell, insert made of PPS with max. temperature 260°C
- Contacts: Brass with gold plating, available in 2, 3, 4, 5, 7, 9, 12 poles
- Termination: Solder and screw options, wire size typically 0.75/18 AWG
- Coupling: Threaded for secure connection
- Operating Temperature Range: -40°C to +85°C
- Rated Current: Up to 30A depending on contact configuration
- Rated Voltage: 500V AC for most contact configurations, 400V for 9-pin
- Mating Cycle: 500 times
- Dimensions: Compatible with cable diameters from 7mm to 12mm, panel cutout details vary
- Insulation Resistance: 2000 MQ
- Fire Resistance: V-0 flammability rating according to UL 94
- RoHS Compliant
Buy the Buy multicomp:ro IP68 Circular Connectors Part Number MP002559 Online
Purchase the multicomp:ro MP002559 IP68 circular connector online today to benefit from its robust construction, weatherproof sealing, and versatile configurations. Designed for demanding environments, this connector features threaded coupling, high IP ratings, and options for solder or screw termination, making it ideal for industrial automation, security, medical, and testing applications. Its durable materials, high current capacity, and long operational lifespan ensure reliable connectivity in challenging conditions. Get your connector now and elevate your project’s performance with trusted quality and fast delivery.
Order your multicomp:ro MP002559 IP68 connector today and ensure reliable performance in rugged environments for your industrial and automation projects.
