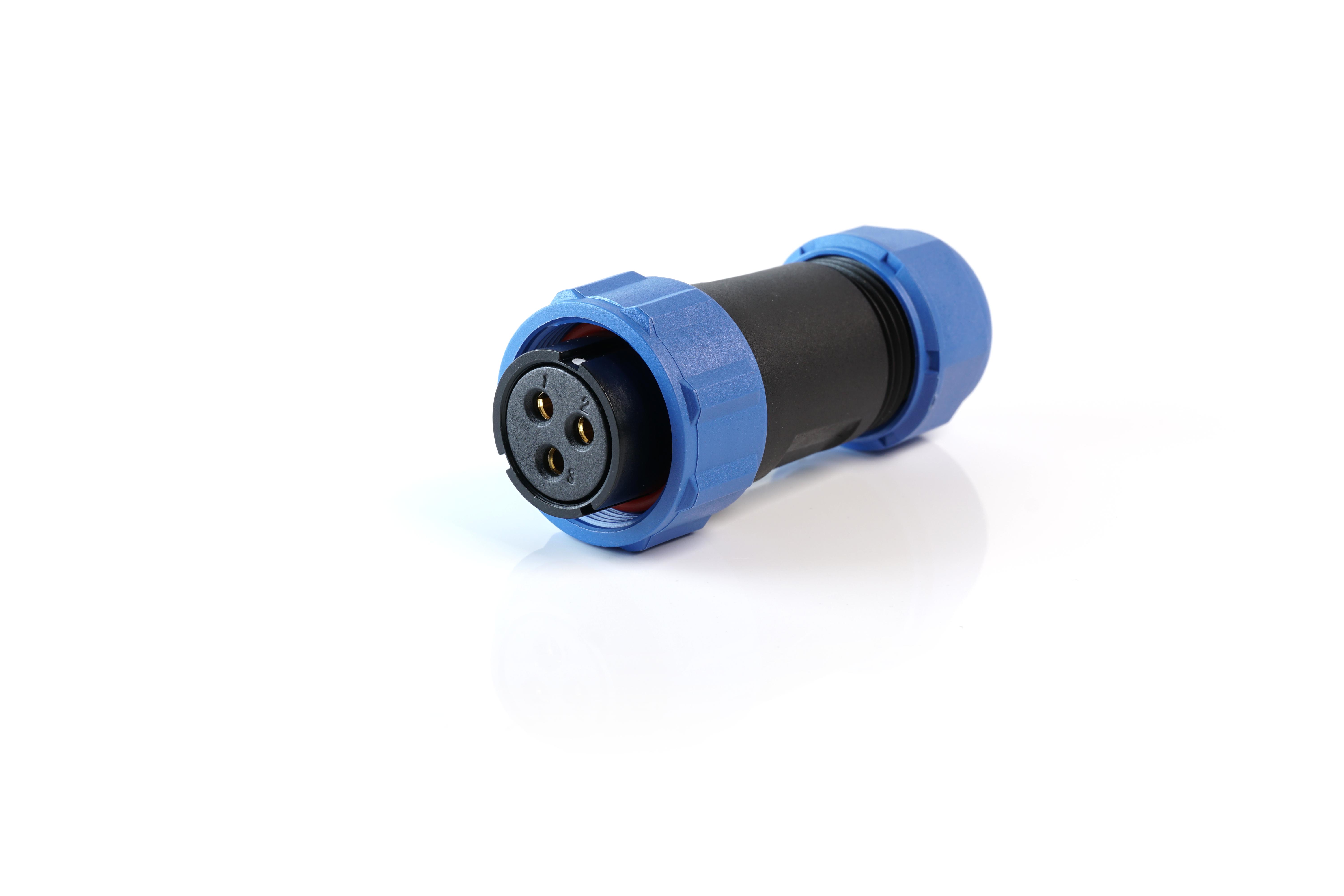

MULTICOMP-PRO MP002563 Weatherproof Circular Connector
The MP-T21 IP68 series connectors offer robust, weatherproof connections suitable for harsh environments. Featuring threaded coupling, these connectors come in diverse configurations including panel, cable, and inline mounts. They support multiple pole counts from 2 to 12, with solder or screw terminations. Made from nylon66 shells, brass contacts with gold plating, and PPS inserts rated up to 260°C, they ensure durability and reliable performance in industrial automation, medical, security, and measurement applications. An IP68 protective cap enhances outdoor protection, making them ideal for demanding environments requiring secure, dust-tight, and waterproof connections.
MULTICOMP-PRO MP002563 Weatherproof Circular Connector Specifications:
- Material: Nylon66 shell, brass contacts with gold plating, PPS insert rated up to 260°C
- Protection: IP68 waterproof, dust-tight
- Coupling: Threaded
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Voltage Rating: Up to 500 V AC
- Current Rating: Up to 30 A per contact
- Cable Outer Diameter Range: 7mm to 12mm
- Panel Cutout: 21 mm
- Contact Terminations: Solder or screw
- Configurations: 2, 3, 4, 5, 7, 9, and 12 poles
- Certifications: RoHS compliant
- Protection Cap: Available for outdoor environments
Buy the Multicomp Pro MP002563 – Reliable Waterproof Circular Connectors for Industrial Applications
Order the Multicomp Pro MP002563 waterproof circular connector online today and ensure your industrial, medical, or security project benefits from a highly durable, IP68-rated, weather-sealed connection system. Designed for rugged environments, these connectors support various configurations with solder or screw terminations and are compatible with 7mm to 12mm diameter cables. They feature robust nylon66 shells, brass contacts with gold plating, and a temperature rating up to 85°C, making them ideal for outdoor and harsh conditions. Secure your reliable connection now with our easy online ordering process.
Buy Multicomp Pro MP002563 now and experience unmatched reliability and performance in harsh industrial environments with weatherproof sealing and secure connections.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002563?
You can click on the BUY or RFQ button to purchase MP002563 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002563?
You can download the MP002563 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002563?
MULTICOMP-PRO
