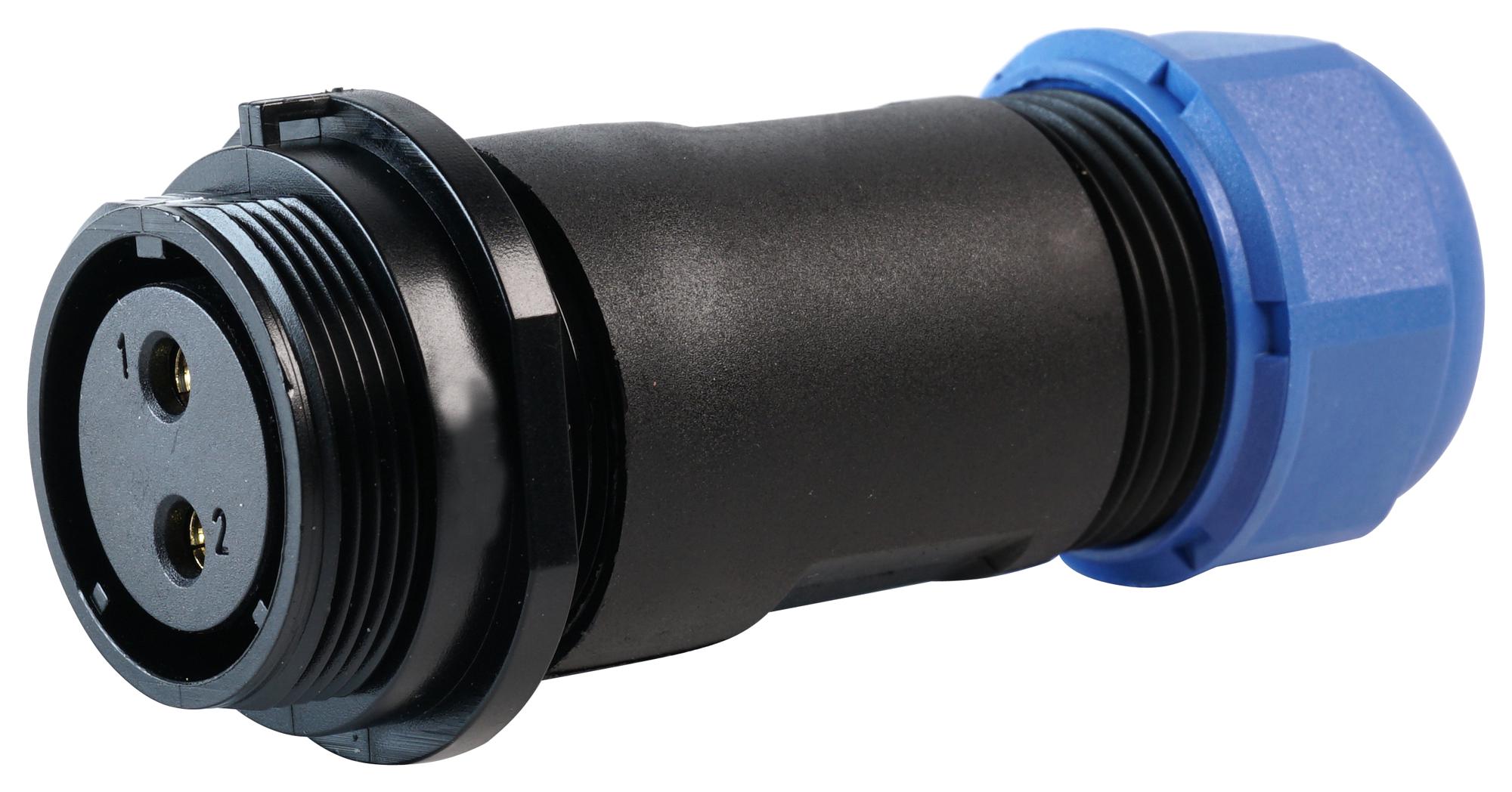

MULTICOMP PRO MP002579 Circular Connectors
The MP-T21 IP68 series connectors are rugged, weatherproof solutions suitable for industrial automation, process control, medical devices, and security systems. They feature threaded coupling, IP68 protection, and are available in various configurations including panel, cable, and in-line mountings with solder or screw terminations. Designed for cable diameters from 7mm to 12mm, these connectors support multiple poles ranging from 2 to 12 for versatile wiring options. They are made with durable materials, including nylon66 shells, brass contacts with gold plating, and PPS inserts rated at 260°C, ensuring long-lasting performance. An optional protective cap enhances environmental sealing, making these connectors ideal for demanding outdoor or harsh environments.
MULTICOMP PRO MP002579 Circular Connectors Specifications:
- Material: Nylon66 shell, brass contacts with gold plating, PPS insert rated at 260°C
- Protection: IP68 weatherproof, dust-tight and water-resistant
- Coupling: Threaded connection with locking nut
- Temperature Range: -40°C to +85°C
- Rated Current: Up to 30A depending on contact configuration
- Rated Voltage: 400V to 500V AC
- Contact Resistance: 1mΩ for solder, 2.5 to 5mΩ for screw contacts
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycle: 500
- Wire Size: 4/11 mm² for solder, 1.5/15 mm² for screw termination
- Cable Diameter Range: 7mm to 12mm
- Protection Cap: Included for dust and water seal
- Dimensions: Suitable for 21mm cut-out panel mounting
- Fire Resistance: V-0 (UL 94V-0 compliance)
Buy the Buy multicomp IP68 Circular Connectors Part Number MP002579 Online
Secure your projects with multicomp Series IP68 circular connectors, featuring threaded coupling and robust materials suitable for outdoor and industrial applications. These connectors support multiple poles and come with solder or screw termination options, providing flexibility for various wiring needs. They are rated for -40°C to +85°C and include an IP68 dust-tight and water-resistant sealing. Easy to install with panel, cable, and inline configurations, and equipped with protective caps. Trust these durable, weatherproof connectors for long-term reliability in demanding environments.
Order your multicomp Series MP002579 IP68 cable and panel connectors today and ensure reliable, weatherproof connections in outdoor or harsh environments.
