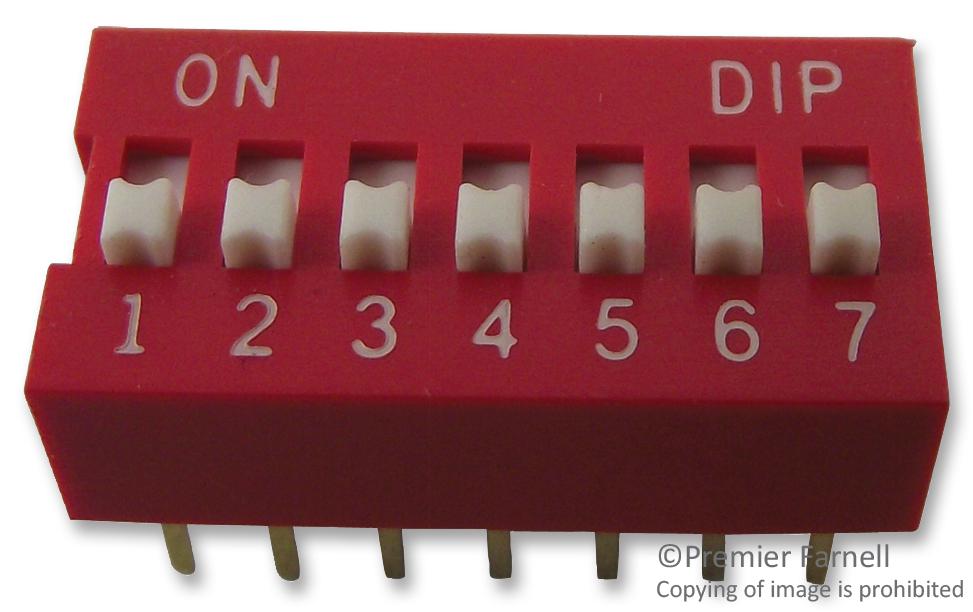

MULTICOMP PRO MCNDS07V Slide Switch
This high-quality slide type DIP switch offers 7 positions with SPST-NO configuration, made with thermoplastic PBT UL 94V-0, featuring a raised actuator in red for clear operation. The switch incorporates gold-plated copper alloy contacts, brass terminals, and a black PA66 base. It supports a current rating of 100mA, 50V DC for non-switching, and 25mA, 24V DC for switching. Designed for industrial control and various function controls, it withstands operating temperatures from -40°C to +85°C, with a tested operating life of 2000 cycles, certified RoHS compliant.
MULTICOMP PRO MCNDS07V Slide Switch Specifications:
- Material: Thermoplastic PBT UL 94V-0 (body), PA66 UL 94V-0 (base), Brass (terminals), Copper alloy (contacts), Gold plated
- Number of Positions: 7
- Configuration: SPST-NO (Single Pole Single Throw - Normally Open)
- Actuator: Raised, white plastic for easy identification
- Current Rating: Non-switching 100mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: Max. 50mΩ (initial), Min. 100MΩ insulation resistance
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: Max. 1000 gf (9.8 N)
- Travel: 2 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Operating Life: 2000 cycles
- Soldering Temperature: Max 350°C, Max 5 seconds
- Vibration Resistance: Following MIL-STD-202F Method 201A, 10-55-10 Hz, 1 min/cycle, 2 hours each direction
- Shock Resistance: Following MIL-STD-202F Method 213B, 50G, 11+1 ms, 6 sides, 3 cycles each
- RoHS Compliant
Buy the Multicomp Series Slide DIP Switch: MCNDS07V
Order the Multicomp MCNDS07V slide type DIP switch online today. This dependable component features 7 positions, gold-plated contacts, and a robust thermoplastic body designed for industrial control applications. It supports a maximum of 2000 operational cycles, operating reliably from -40°C to +85°C, making it suitable for various electronics and control systems. Easy to install with precise switching action, this RoHS compliant switch offers excellent durability and performance, ensuring your projects stay efficient and reliable over time.
Get Multicomp MCNDS07V today—built for precise control and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDS07V?
You can click on the BUY or RFQ button to purchase MCNDS07V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS07V?
You can download the MCNDS07V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDS07V?
MULTICOMP PRO
