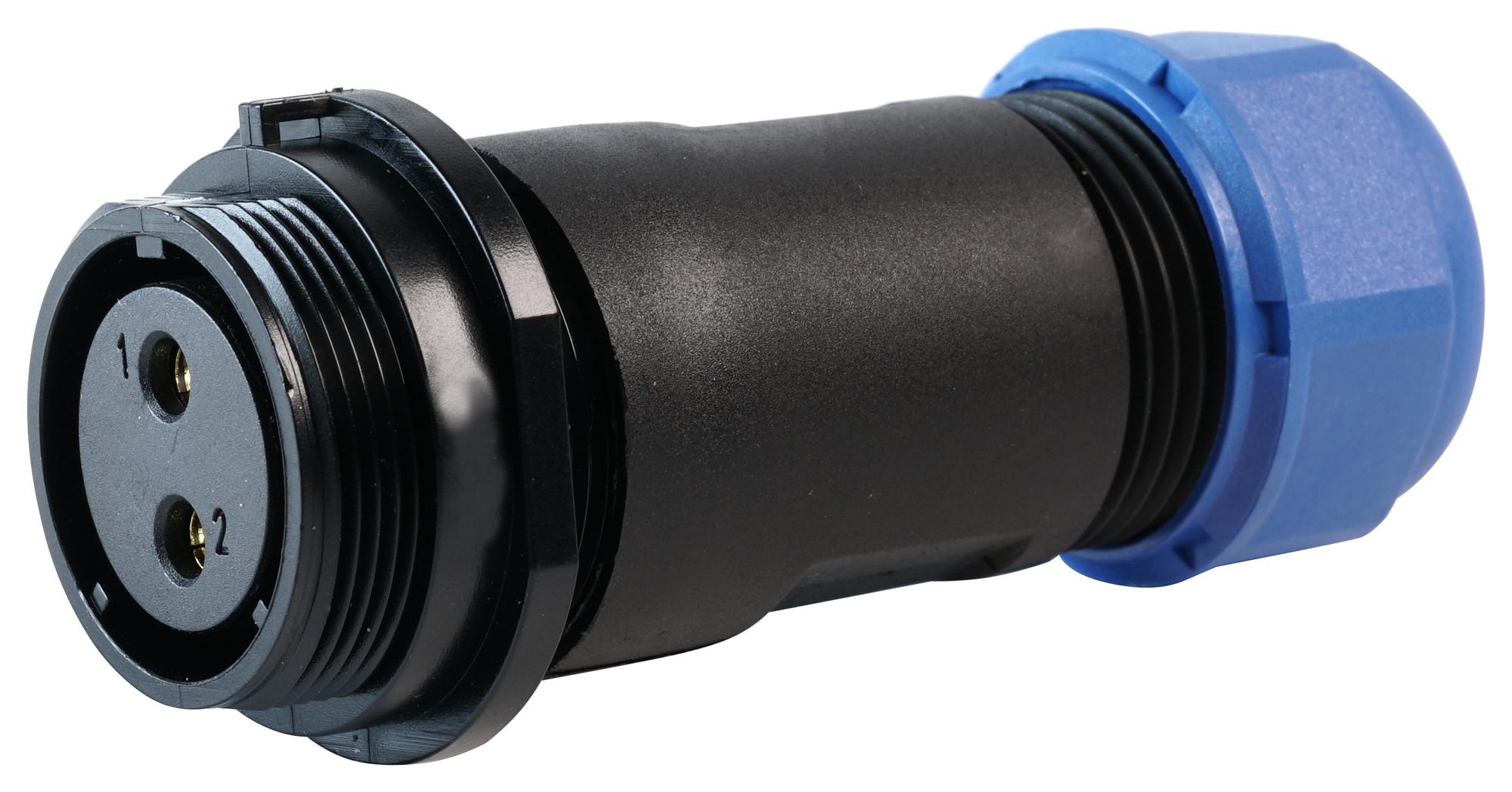

MULTICOMP-PRO MP002580 Waterproof Circular Connector
The MP-T21 IP68 series connectors are robust, weatherproof devices designed for harsh environments, offering threaded coupling and sealing to IP68 standards. Suitable for panel, cable, and inline mountings, these connectors support solder and screw terminations, accommodating various cable sizes and configurations from 2 to 12 poles. Made from durable nylon66 shells and brass contacts with gold plating, they withstand temperatures from -40°C to +85°C. These connectors are ideal for industrial automation, medical equipment, security systems, and test measurement applications, providing reliable and waterproof connections in outdoor or demanding indoor settings.
MULTICOMP-PRO MP002580 Waterproof Circular Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling Type: Threaded
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Termination: Solder and screw
- Contact Diameter: 1 to 3 mm
- Rated Current: 5 to 30 A depending on contact
- Rated Voltage: 400 to 500 V
- Test Voltage: 1200 to 1500 V
- Cable Outer Diameter Range: 7mm to 12mm
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- RoHS Compliant
- Dimensions: Suitable for 21mm panel cutouts
- Mating Cycles: 500
Buy the Multicomp Series IP68 Connectors: MP002580
Enhance your project with the waterproof and durable IP68 circular connector from the MP-T21 series. Featuring robust nylon66 shells, brass contacts with gold plating, and support for both solder and screw terminations, these connectors ensure reliable and waterproof connections in outdoor, industrial, or demanding environments. Available in multiple configurations, including 2 to 12 poles, and compatible with cables ranging from 7mm to 12mm, they excel in industrial automation, medical, security, and test systems, providing dependable performance and easy installation.
Order your Multicomp Series IP68 connector MP002580 today and ensure reliable waterproof connections for outdoor and industrial projects.
