MULTICOMP PRO MP002581 Circular Connectors

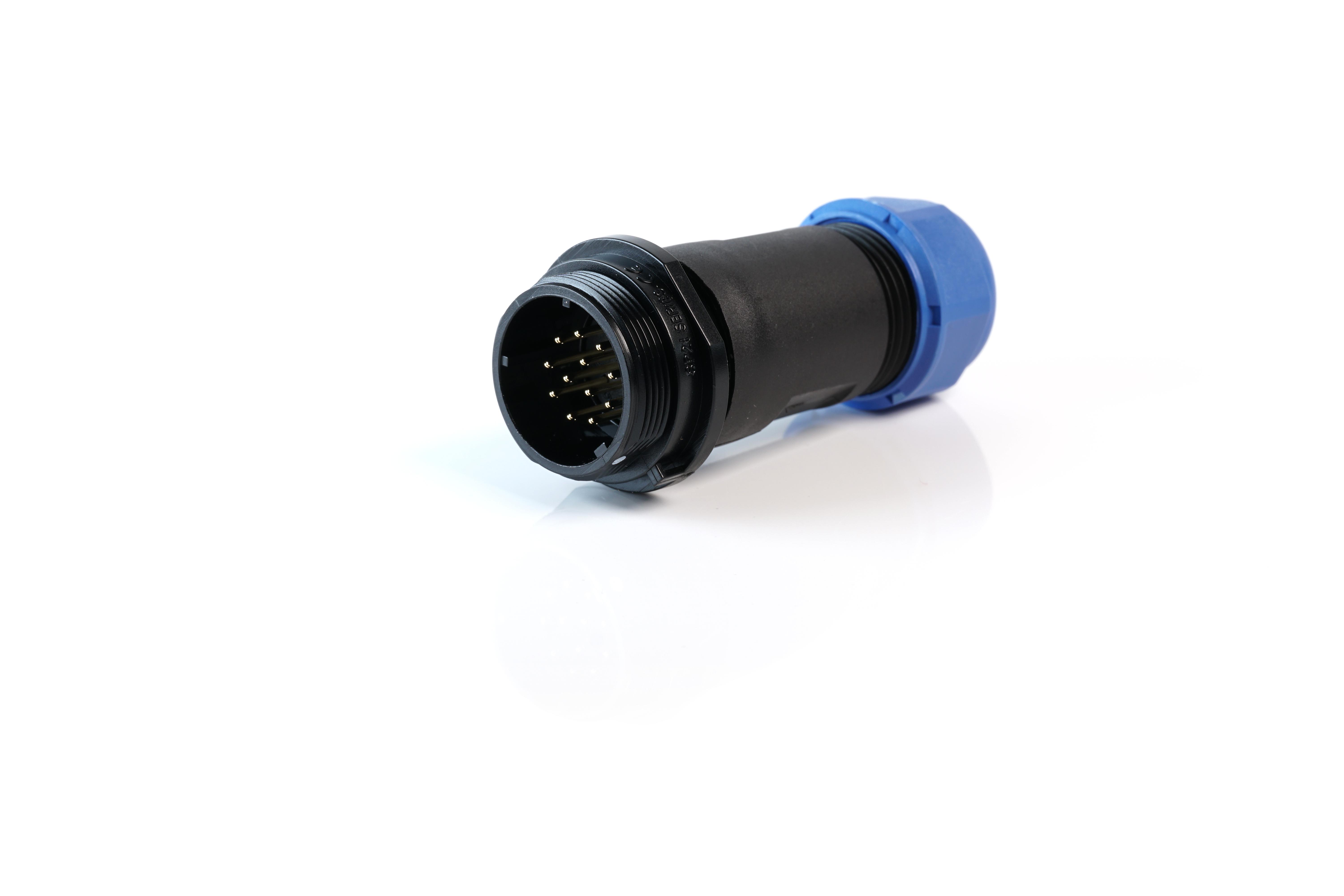

The MP-T21 IP68 series connectors are highly durable, weather-resistant devices designed for rugged applications. Featuring threaded couplings and an IP68 rating, these connectors provide reliable sealing for outdoor and harsh environments. They are available in panel mount, cable mount, and inline configurations, suitable for various installation needs, with options accommodating 21mm panel cut-outs. Termination options include solder and screw connections, supporting multiple contact configurations from 2 to 12 poles. Ideal for automation, industrial, medical, and security applications, these connectors ensure long-lasting performance and easy installation with robust locking mechanisms.
MULTICOMP PRO MP002581 Circular Connectors Specifications:
- IP Rating: IP68
- Material (Shell, Locking Nut, Back Shell, Compressing Nut, Retaining Nut): Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and Screw
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500
- Cable Outer Diameter Range: 7mm to 12mm
- Dimensions: Suitable for 21mm panel cut-out, locknut and rubber seal included
- Contact configuration: 2, 3, 4, 5, 7, 9, 12 poles
- Rated Current: 5A to 30A depending on contact
- Rated Voltage: 400V to 500V
- Sealing: Weatherproof, dustproof, suitable for outdoor use
- RoHS Compliant
Buy the Buy multicomp:ro Circular Connectors Part Number MP002581 Online
Order the multicomp:ro Circular Connectors MP002581 online now for reliable, weatherproof connections suitable for industrial automation, security systems, and medical equipment. These IP68-rated connectors feature threaded coupling for secure attachment and support both solder and screw termination methods, ensuring versatile installation options. Available in multiple configurations with 2, 3, 4, 5, 7, 9, and 12 poles, they are ideal for harsh environments. Enhance your projects with durable, weather-resistant connectors designed for long-lasting performance and ease of use in outdoor and industrial applications.
Get multicomp:ro MP002581 today—built for rugged durability and reliable outdoor sealing, perfect for harsh environments and easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002581?
You can click on the BUY or RFQ button to purchase MP002581 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002581?
You can download the MP002581 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002581?
MULTICOMP PRO
