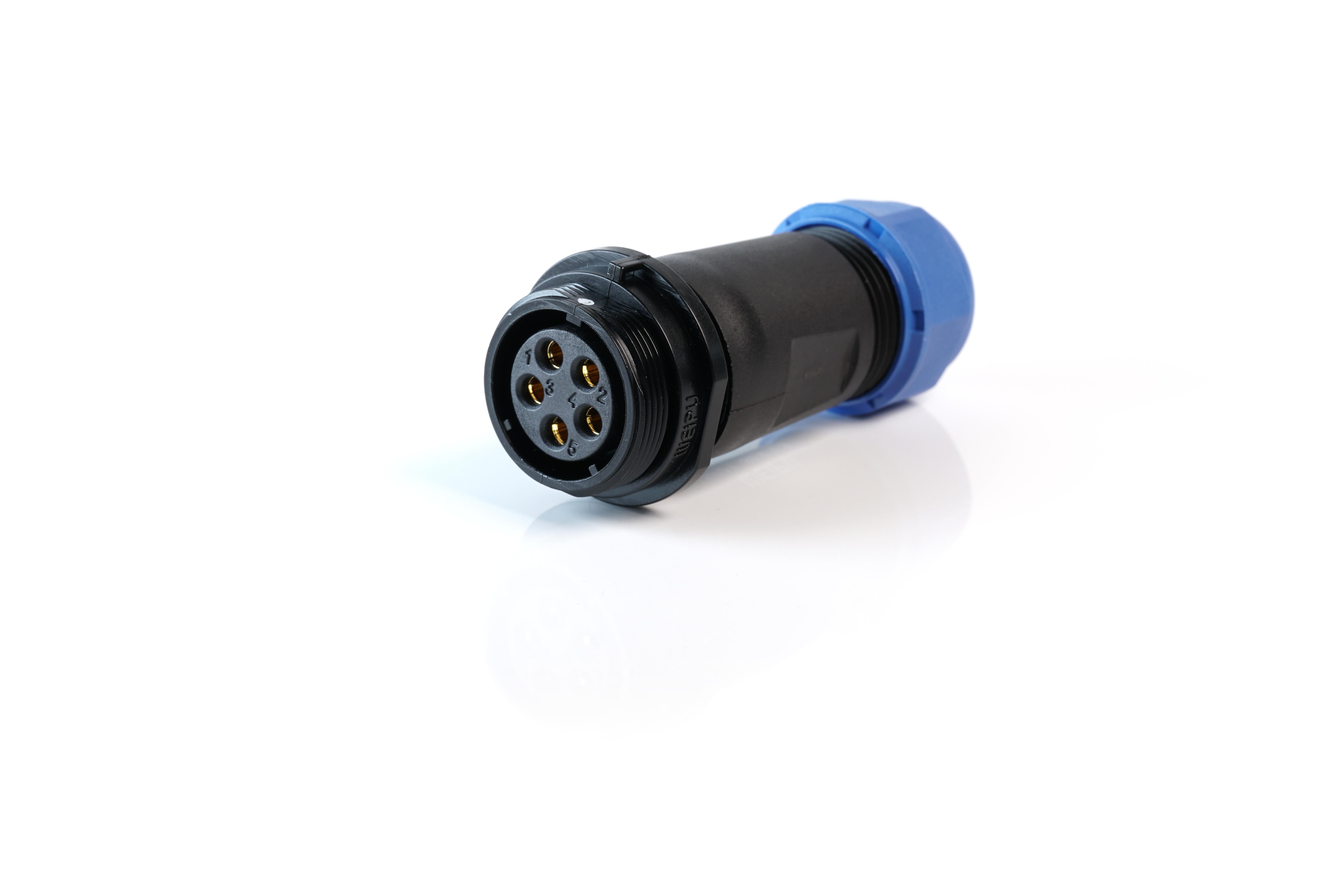

MULTICOMP-PRO MP002589 IP68 Circular Connectors
The MP-T21 IP68 series connectors offer robust, weatherproof solutions with threaded coupling, suitable for indoor and outdoor use across industrial automation, medical, and security. They feature panel, cable, and inline mount options, with solder or screw termination. Available in 2 to 12 pole configurations, these connectors support up to 30A rated current and 500V rated voltage, with IP68 protection ensuring durability against dust and water ingress. Made with nylon66 shells, PPS insert materials, and brass contacts with gold plating, they provide reliable electrical performance, easy installation, and high mating cycle durability for demanding environments.
MULTICOMP-PRO MP002589 IP68 Circular Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Threaded
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Contact Resistance: 1 mΩ
- Rated Current: 30A (2-4 contacts), 15A (5 contacts), 5A (7-12 contacts)
- Rated Voltage: 500V (up to 7 contacts), 400V (12 contacts)
- Termination: Solder and Screw
- Wire Range for Solder: 4/11 mm²/AWG
- Wire Range for Screw: 1.5/15 mm²/AWG
- Connector Types: Cable Mount, Inline, Panel Mount
- Protection: IP68 rated for dust and water ingress
- Cable Outer Diameter: 7mm to 12mm
- Connector Configurations: 2, 3, 4, 5, 7, 9, 12 poles
- Dust Cap: Available for receptacle and plug
- Compliance: RoHS
Buy the Multicomp Series IP68 Connectors: MP002589
Secure your applications with the high-quality IP68 Circular Connectors from Multicomp. Designed for harsh environments, these connectors feature threaded coupling and multiple mounting options, supporting up to 12 poles. Crafted from nylon66 shells with brass contacts, and plated with gold for enhanced conductivity, they provide dependable electrical performance. Easy to install with solder or screw terminations and rated for up to 30A and 500V, ensuring safety and durability in industrial automation, medical, and security systems. Buy online now for fast delivery and trusted quality.
Order your Multicomp Series IP68 connector MP002589 today and ensure reliable, waterproof connections for your industrial and outdoor projects.
