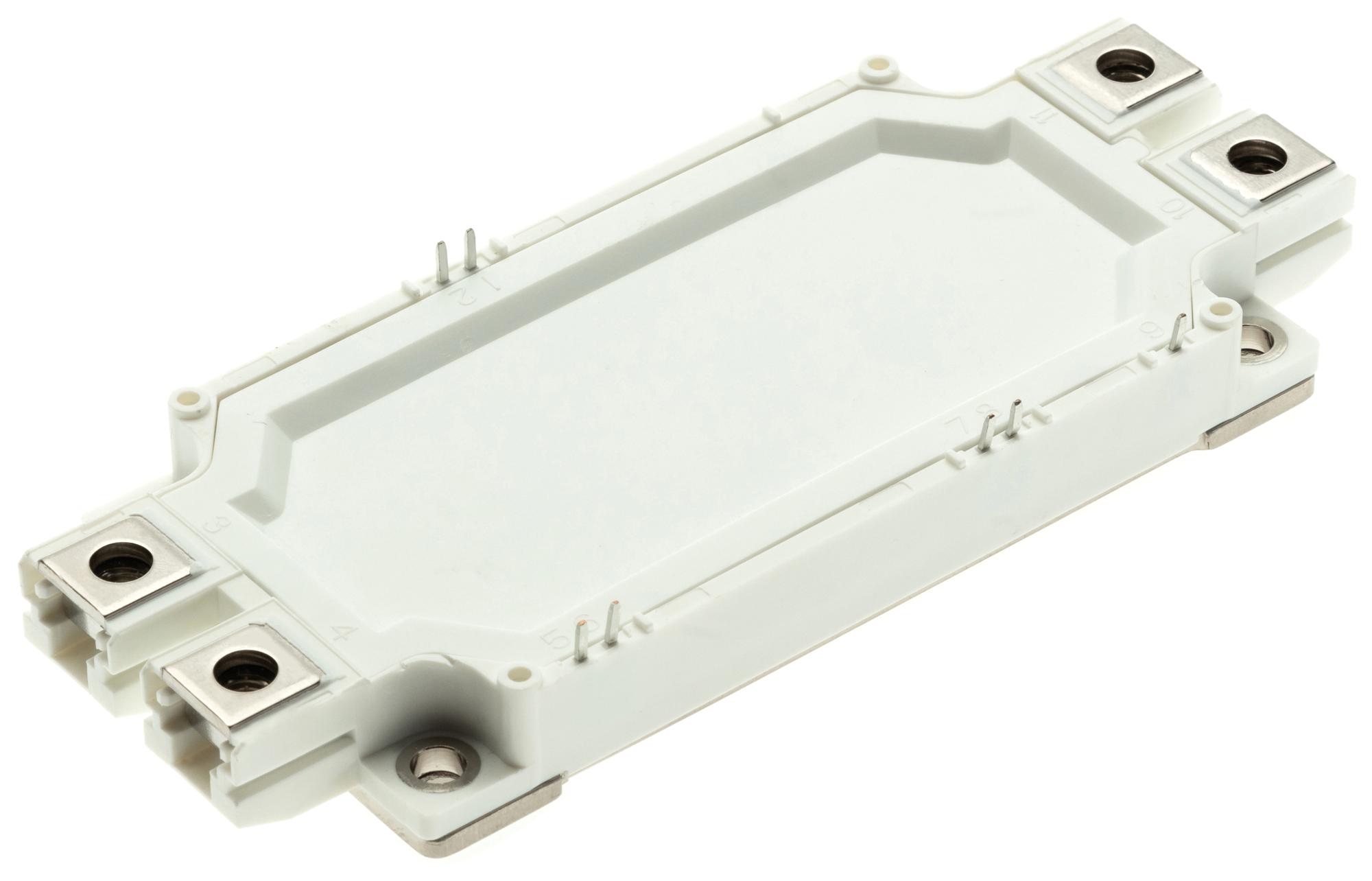

MULTICOMP PRO MPIM600M112TG5 IGBT Module
The Half Bridge IGBT Module offers reliable performance with 1200V, 600A ratings, optimal for motor drives, power conversion, and renewable energy applications. Featuring trench gate, generation 5 TMOS IGBT technology, enhanced Al2O3 insulation, and Cu baseplate for efficient heat dissipation. It withstands 10us short circuits, has low inductance, and supports high thermal cycling, making it suitable for inverters and traction drives. The module incorporates isolated base plate, RoHS compliance, and high safety margins, ensuring high durability and safety in demanding industrial environments.
MULTICOMP PRO MPIM600M112TG5 IGBT Module Specifications:
- Collector-emitter voltage VCES: 1200 V
- Gate-emitter voltage VGE: +20 V
- Continuous collector current IC: 600 A at 88°C
- Peak collector current IC(PK): 1200 A at 133°C
- Max. power dissipation Pmax: 3 kW at 25°C
- Diode forward current IF: 600 A
- Diode maximum forward current: 1200 A
- Diode forward voltage: 2.4 V at 600 A and 125°C
- Gate threshold voltage VGE(TH): 5 - 7 V
- Collector-emitter saturation voltage VCE(sat): 2 V at 600A
- Junction temperature Tj: -40°C to +150°C
- Thermal resistance (case to heatsink): 0.77°C/W
- Insulation voltage: AC RMS 2500 V, 1 min
- Creepage distance terminal to heatsink: 14.5mm
- Creepage distance terminal to terminal: 13mm
- Module inductance: 22 nH
- RoHS compliant, RoHS
- Dimensions: Nominal weight 345g
- Mounting torque: 5 Nm
