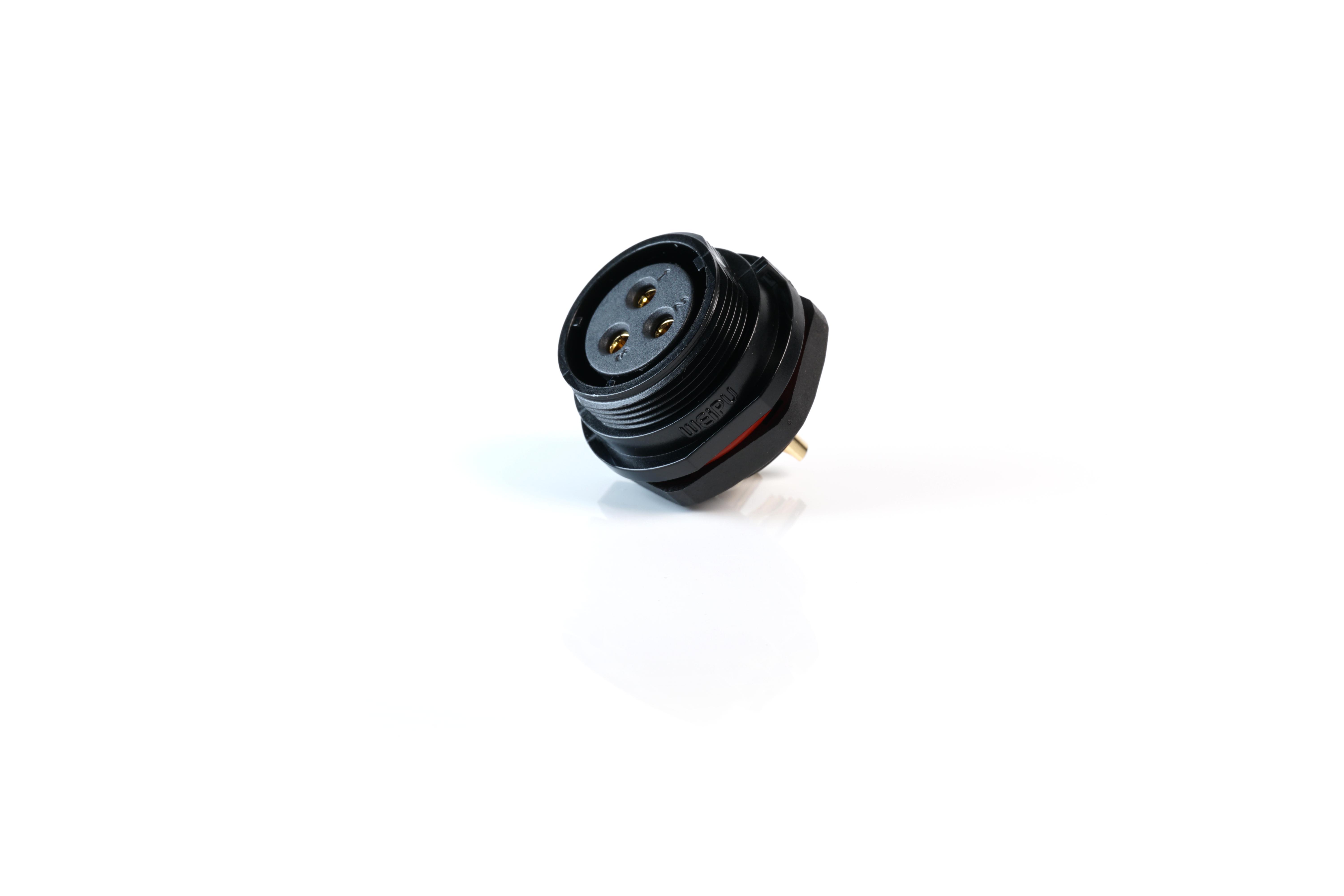

MULTICOMP PRO MP002611 Weatherproof Circular Connector
The MP-T21 IP68 series connectors are robust, weatherproof solutions designed for outdoor and indoor applications. Featuring threaded coupling and sealing to IP68 standards, they ensure reliable connections in harsh environments. The series includes panel, cable, and inline cable mount variants, accommodating 2 to 12 contacts with solder or screw terminations. Made from Nylon66 and brass with gold plating, these connectors resist fire (V-0) and operate at temperatures from -40°C to +85°C. They support mating cycles up to 500, making them ideal for automation, industrial, and security applications. Dust caps are available for protection when disconnected.
MULTICOMP PRO MP002611 Weatherproof Circular Connector Specifications:
- Material: Nylon66 shell, brass with gold plating contacts
- Sealing: IP68 rated for waterproof and dustproof protection
- Temperature Range: -40°C to +85°C
- Fire Resistance: V-0
- Coupling: Threaded
- Mating Cycle: Up to 500
- Insert Material: PPS, Max. Temperature 260°C
- Termination: Solder and screw options
- Connector Variants: Panel, cable, inline cable mount
- Cable Outer Diameter Range: 7mm to 12mm
- Contact Configuration: 2, 3, 4, 5, 7, 9, 12 poles
- Rated Current: 30A for 2-4 poles, 15A for 5 poles, 5A for 7-12 poles
- Rated Voltage: Up to 500V (AC)
- Contact Resistance: 1-5 milliohms
- Certifications: RoHS compliant
Buy the Multicomp Series IP68 Connectors: MP002611
Purchase the Multicomp IP68 weatherproof circular connector MP002611 online today. These durable connectors feature threaded coupling and sealing to IP68 standards, ensuring waterproof and dustproof performance. Available in panel, cable, and inline mount configurations, with solder or screw termination options. Suitable for demanding industrial environments, automation, security, and outdoor use, the connectors support up to 12 contacts with high current ratings. Invest in reliable connectivity solutions and enhance your project’s robustness and longevity.
Buy Multicomp IP68 connectors MP002611 now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002611?
You can click on the BUY or RFQ button to purchase MP002611 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002611?
You can download the MP002611 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002611?
MULTICOMP PRO
