MULTICOMP PRO MP002619 Circular Connector
The MP-T21 IP68 series is a durable range of connectors featuring threaded coupling and weatherproof sealing rated at IP68. These connectors are available in panel mount, cable mount, and in-line configurations, allowing for cable-to-panel or cable-to-cable connections. Designed for both indoor and outdoor applications, they support a 21mm panel cut-out and offer solder and screw termination options. The series includes versions with 2, 3, 4, 5, 7, 9, and 12 poles. An IP68-rated protective cap is also available. Suitable for use in automation, medical, security, test and measurement, and industrial automation applications.
MULTICOMP PRO MP002619 Circular Connector Specifications:
- IP68 sealing rating ensures protection against water and dust
- Material: Nylon66 shell, insert made of PPS with max. 260°C temperature resistance
- Contact material: Brass with gold plating for reliable conductivity
- Coupling: Threaded for secure connection
- Terminations: Solder or screw termination options available
- Temperature range: -40°C to +85°C
- Mating cycle: 500
- Electrical ratings: 30A rated current, rated voltage 500V (AC), test voltage 1500V, contact resistance 1mΩ
- Configuration: Available in 2, 3, 4, 5, 7, 9, 12 poles
- Connections: Suitable for cable outer diameter range 7mm to 12mm

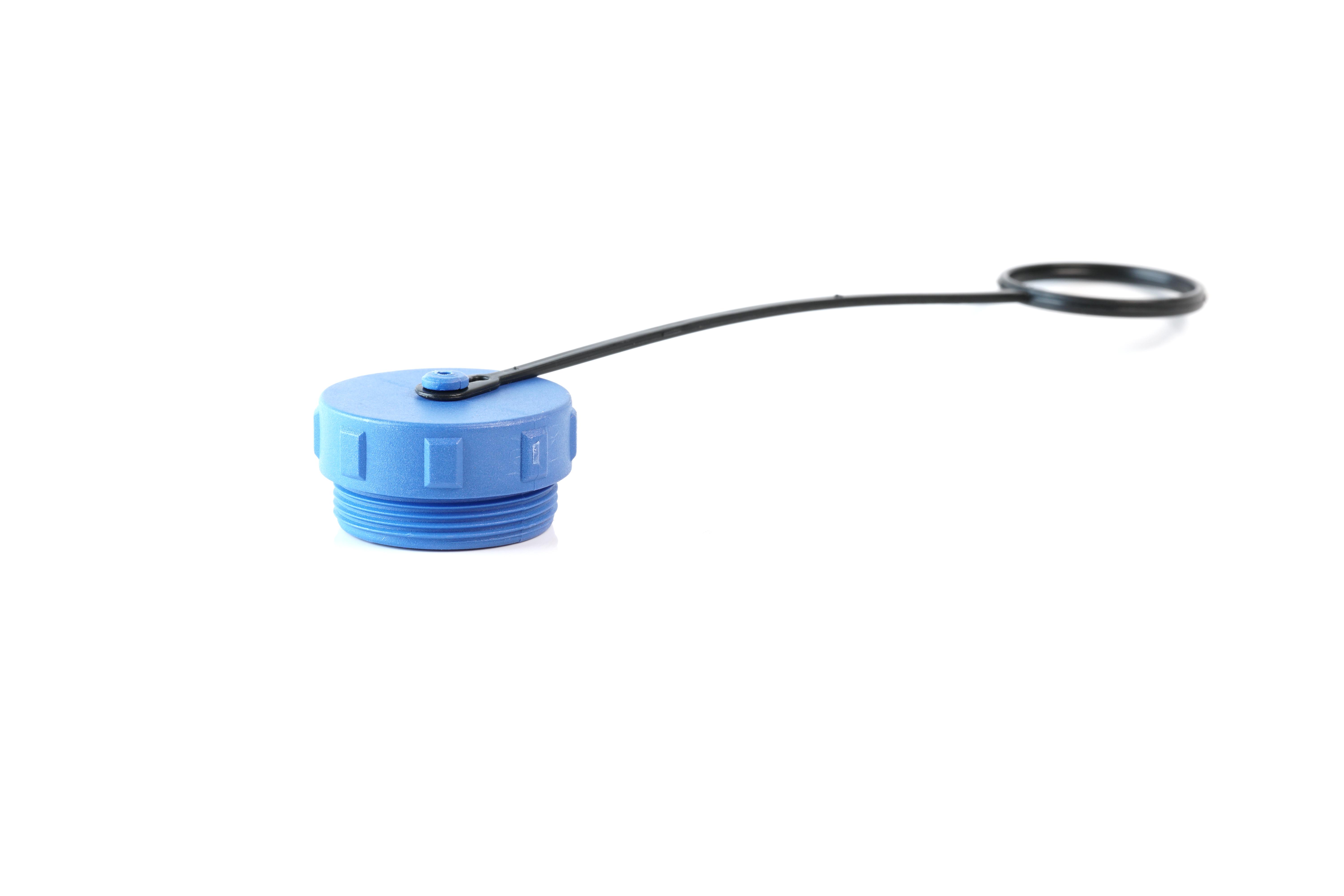

- Protection: IP68 rating with optional dust caps
- Application: Suitable for automation, medical, security, industrial environments
Buy the Buy Multicomp IP68 Circular Connectors Part Number MP002619 Online
Experience dependable, weatherproof connectivity with the Multicomp IP68 Circular Connector series. Perfect for outdoor and harsh environments, these connectors feature rugged nylon shells, gold-plated brass contacts, and versatile termination options. Available in multiple configurations with 2 to 12 poles, they support high current and voltage ratings suitable for automation, medical, and industrial applications. Easy to install with threaded coupling and IP68 sealing, ensuring long-lasting performance. Purchase MP002619 online now for secure, reliable, and weatherproof connections in your projects.
Get Multicomp IP68 Circular Connector MP002619 today—designed for water resistance and durable connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002619?
You can click on the BUY or RFQ button to purchase MP002619 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002619?
You can download the MP002619 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002619?
MULTICOMP PRO
