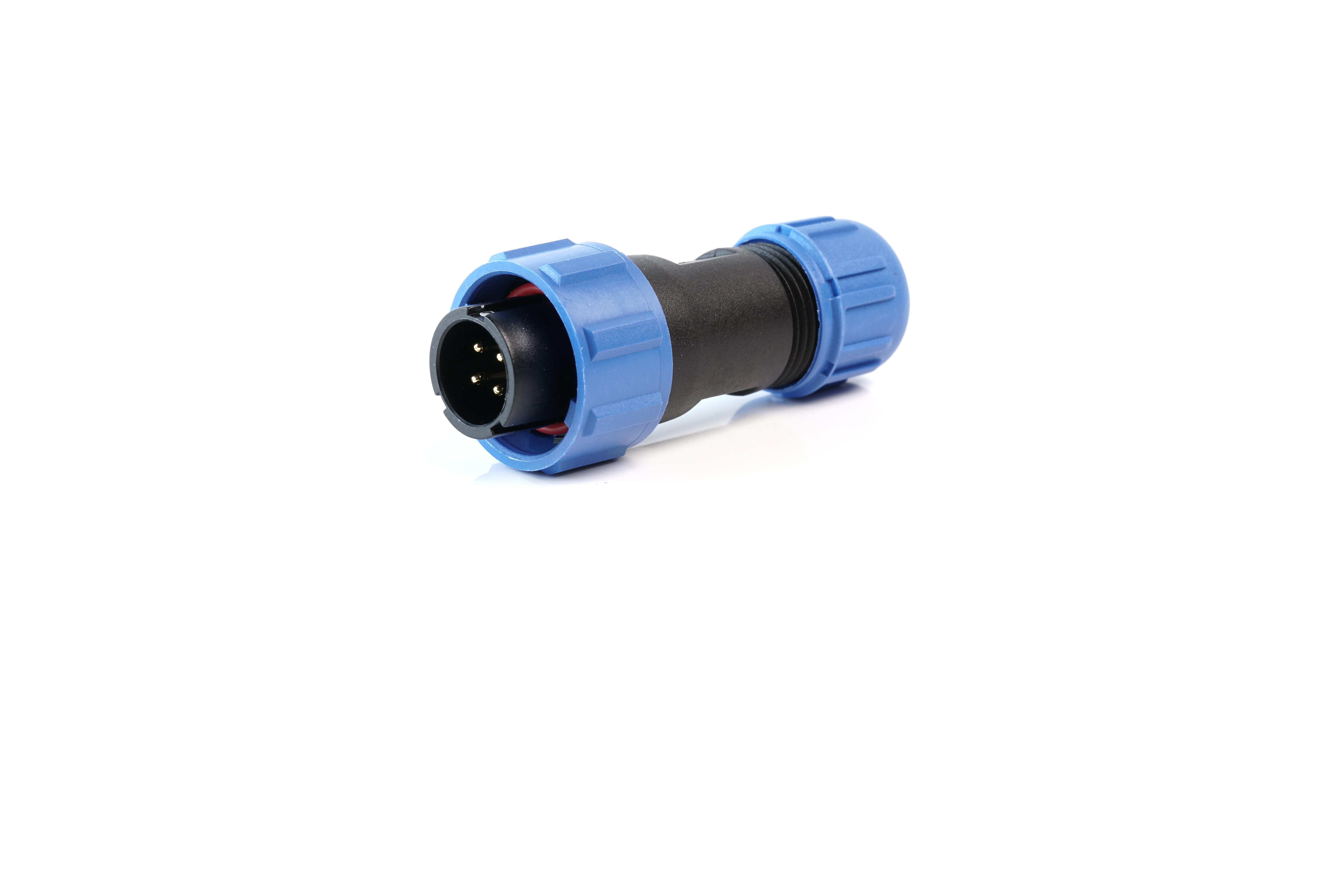

MULTICOMP-PRO MP002623 waterproof connector set
The MP-T13 IP67 series is a robust collection of connectors featuring bayonet couplings for quick and secure connection and disconnection. These connectors are available in various mounting options, including panel mount, cable mount, and in-line cable mount, allowing for flexible cable-to-panel or cable-to-cable connections. Designed to withstand harsh environments, they are weather-sealed to IP67 standards, making them suitable for both indoor and outdoor applications. Key features include compatibility with 13mm panel cut-outs, solder termination, multi-pole configurations (2, 3, 4, 5, and 7 poles), and optional IP67 caps for added protection.
MULTICOMP-PRO MP002623 waterproof connector set Specifications:
- IP67 rated for dust and water resistance
- Coupling: Bayonet closure for quick connect/disconnect
- Material: Nylon66 shell, PPS insert material, Brass contacts with gold plating
- Contact Diameter: 1mm to 2mm based on pole number
- Rated Current: 13A for 2-pole, 5A for 3-7 poles
- Rated Voltage: Up to 250V AC
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Termination: Solder
- Contact Resistance: 2.5mΩ to 5mΩ
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Suitable for panel cutouts of 13mm, various body lengths
Buy the Buy Multicomp Pro IP67 Waterproof Quick-Connect Connectors Part Number MP002623 Online
Purchase the Multicomp Pro IP67 waterproof connector set today for secure, weather-resistant connections suitable for harsh outdoor and indoor environments. Featuring bayonet coupling for easy connection, multiple mounting styles including panel, cable, and inline options, and multi-pole configurations up to 7 poles, this connector ensures durability and reliable performance. Designed with rugged nylon66 shells and brass contacts with gold plating, it provides excellent conductivity and corrosion resistance. Ideal for industrial, automation, and outdoor equipment, order now for quick delivery and enhanced connection security.
Get Multicomp Pro IP67 waterproof connector today—designed for reliable outdoor and industrial applications with quick bayonet coupling and multi-pole options.
