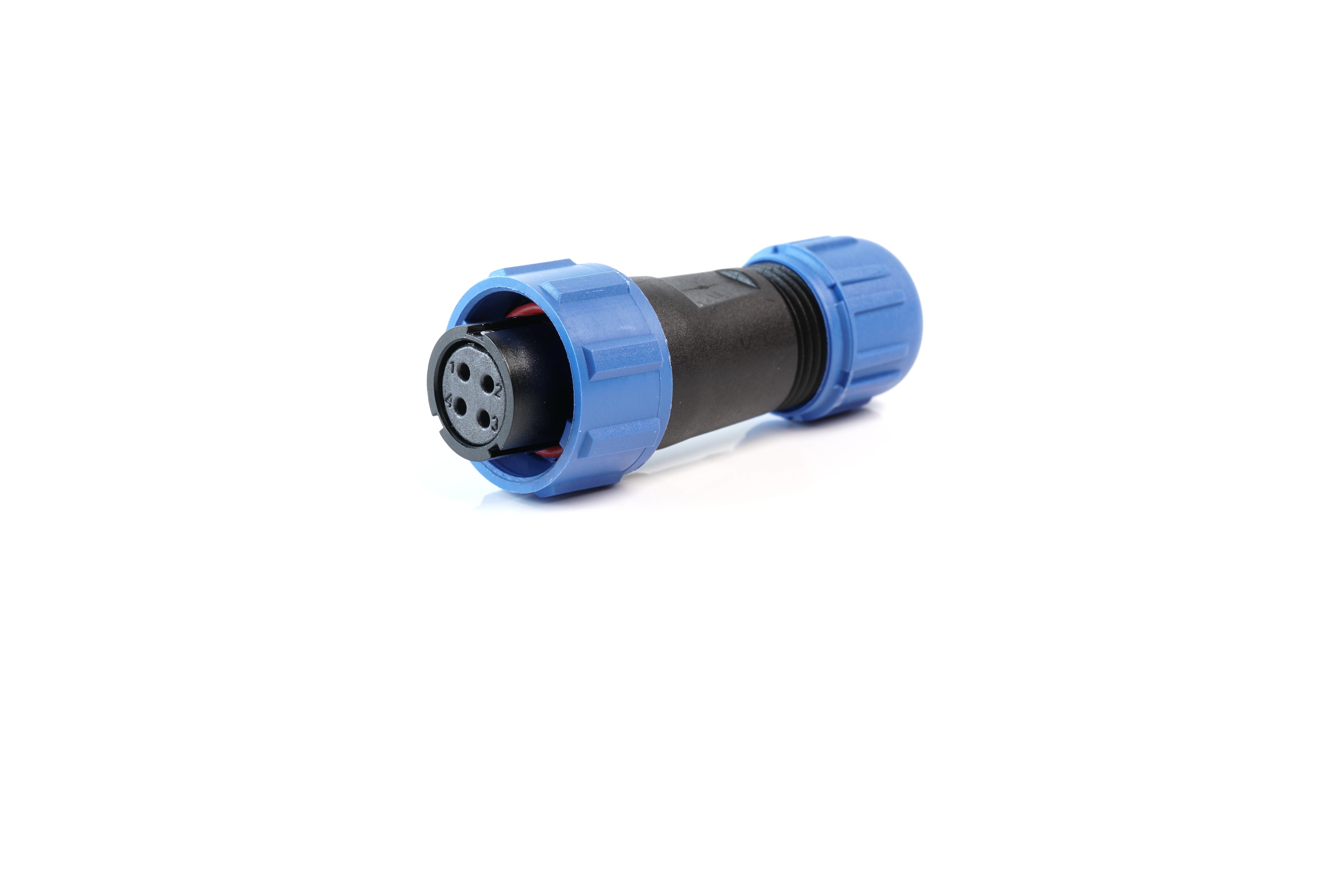

MULTICOMP PRO MP002628 IP67 Circular Connector
The MP-T13 IP67 series is a durable connector range featuring bayonet couplings for quick and easy connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, enabling cable-to-panel or cable-to-cable connections. Designed with weatherproofing to IP67 standards, they are suitable for both indoor and outdoor applications. The series fits a 13mm cut-out, uses solder termination, and offers versions with 2, 3, 4, 5, or 7 poles. An IP67-rated cap is also available for additional protection.
MULTICOMP PRO MP002628 IP67 Circular Connector Specifications:
- IP67 waterproof rating
- Coupling: Bayonet
- Material: Nylon66 shell, insert PPS
- Contact Material: Brass with gold plating
- Termination: Solder
- Contact Diameter: 1.6mm (2P), 1mm (3-7P)
- Rated Current: 13A (2P), 5A (3-7P)
- Rated Voltage: 250V (2P/3P), 200V (4P), 180V (5P), 125V (7P)
- Test Voltage: 1500V (1 min.)
- Wire Size: 2/14 AWG (0.75mm²)
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Connector Configurations: Panel, cable, in-line
- Outer Diameter Range: 4mm to 6.5mm
- Dimensions: Millimetres, suitable for 13mm cut-outs
- Dust Cap: Part Number MP002656
Buy the Multicomp IP67 Connector – Reliable Weatherproof Connectors for Industrial Applications
Order the IP67 Circular Connector by Multicomp today and experience reliable, weatherproof connections for industrial and outdoor use. Designed with quick bayonet coupling, it offers secure, waterproof connections in multiple configurations including panel, cable, and in-line setups. Perfect for challenging environments, these connectors support up to 500 mating cycles and feature solder termination for secure wiring. Protect your applications from dust and water with the IP67-rated design, and enhance your setup with optional dust caps for maximum protection. Efficient, durable, and easy to install—buy online now.
Get Multicomp IP67 Connector today—built for durability, easy installation, and reliable connectivity in challenging environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002628?
You can click on the BUY or RFQ button to purchase MP002628 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002628?
You can download the MP002628 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002628?
MULTICOMP PRO
