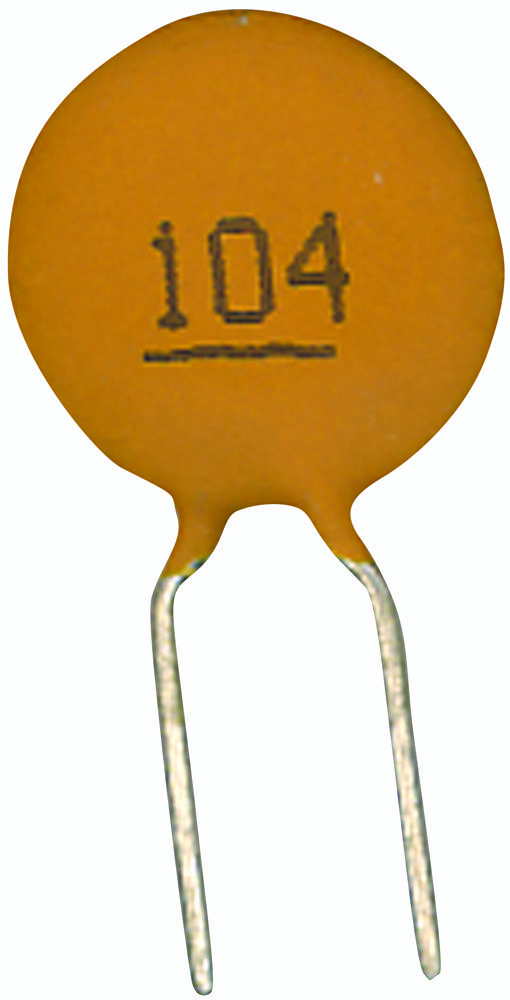

MULTICOMP PRO MC302102M060B20C7B Ceramic Capacitor
Radial leaded ceramic disc capacitors known for reliable performance in electronic circuits. Suitable for various applications requiring stable capacitance and low leakage. Manufactured by Multicomp Pro, a trusted brand in electronic components, and backed by a 12-month limited warranty. Highly recommended by customers for quality and durability.
MULTICOMP PRO MC302102M060B20C7B Ceramic Capacitor Specifications:
- Rated Voltage: 3 KV DC
- Capacitance Tolerance: ±20%
- Capacitance Value: 100 pF
- Product Diameter: 6 mm
- Lead Diameter: 0.6 mm +0.06 mm
- Lead Length Tolerance: 20 mm ±0.5 mm
- Temperature Range: +10°C to +85°C
- Dissipation Factor: Below 2.5% for Z5U class
- Insulation Resistance: Minimum 1,000 MΩ after test
- Test Conditions: Temperature 5°C-35°C, Humidity 45-85%
- Soldering Conditions: Max 350°C tip temperature, 3.5 seconds max
- Wire Diameter: 0.5mm, Load: 0.5kg for 10s
- Bending and Mechanical Strength: No breakdown after test
- Humidity Test: 90-95% at 40°C for 500 hours
- Thermal Cycling: -25°C to +85°C, 5 cycles
Buy the Buy Multicomp Ceramic Disc Capacitor Part Number MC302102M060B20C7B Online
Order the Multicomp ceramic capacitor MC302102M060B20C7B online now to ensure reliable circuit performance with high voltage capacity and stable capacitance. This high-quality component is ideal for applications requiring robustness against temperature variations, low leakage, and long-term durability. Featuring epoxy resin coating and precise dimensions, it meets industry standards and offers excellent insulation resistance. Secure your supply chain by purchasing this trusted product from authorized distributors and enjoy fast delivery, competitive pricing, and technical support for your electronic projects.
Get Multicomp ceramic capacitor MC302102M060B20C7B today—designed for high voltage stability and long-lasting electronic performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC302102M060B20C7B?
You can click on the BUY or RFQ button to purchase MC302102M060B20C7B from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC302102M060B20C7B?
You can download the MC302102M060B20C7B datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC302102M060B20C7B?
MULTICOMP PRO
