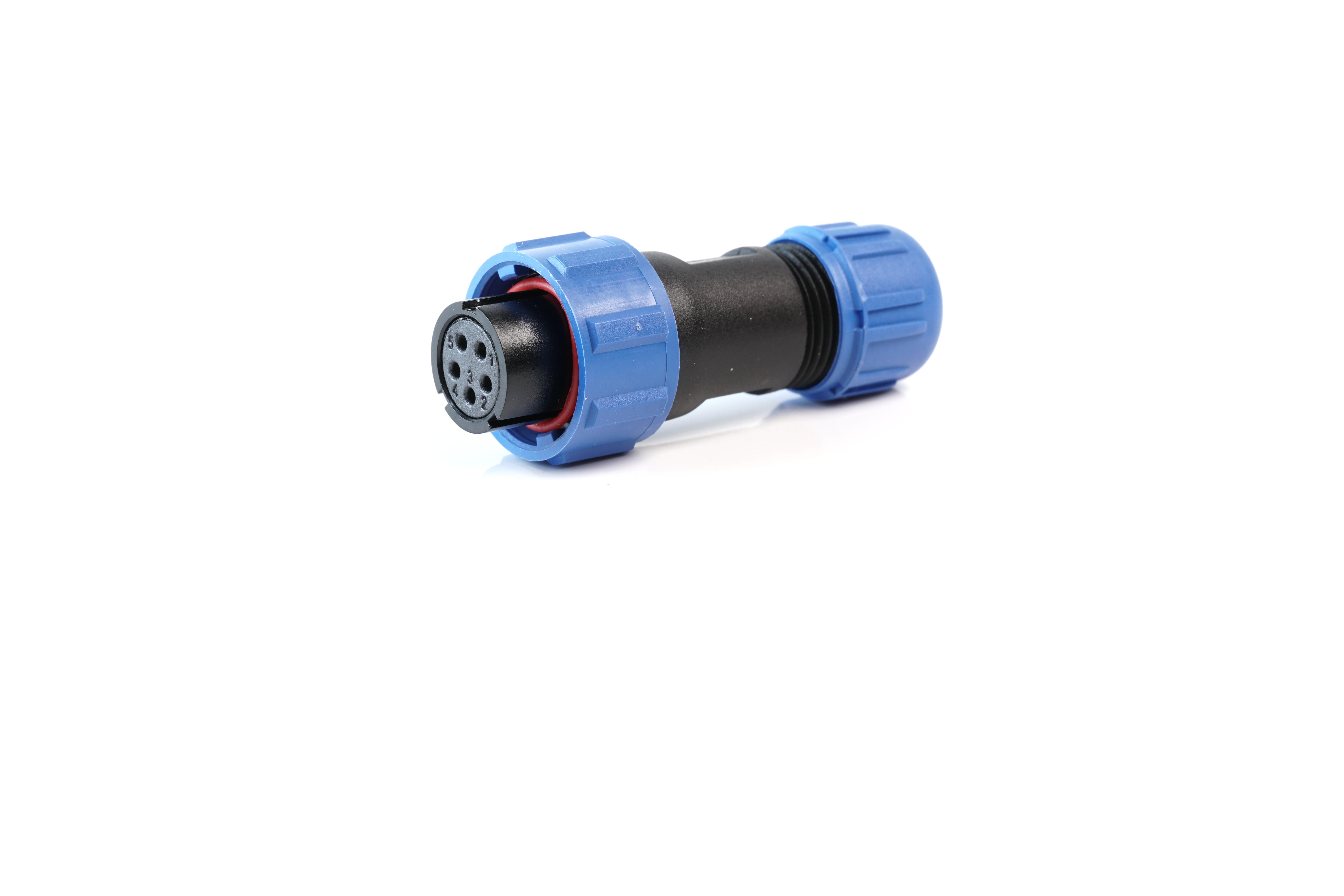

MULTICOMP PRO MP002629 Industrial Circular Connector
The MP-T13 IP67 series connectors are rugged, weatherproof components designed for reliable outdoor and industrial use. Featuring bayonet couplings for quick, secure connections, these connectors are available in panel mount, cable mount, and in-line configurations, supporting various cable and panel applications. Constructed with nylon66 shells and PPS inserts capable of withstanding temperatures up to 260°C, they are rated IP67 for dust and water resistance. Terminated with brass contacts and gold-plated for superior conductivity, suitable for high-current, quick-disconnect needs in automation, security, and process control environments.
MULTICOMP PRO MP002629 Industrial Circular Connector Specifications:
- Material: Nylon66 shell, PPS insert housing, Brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Ingress Protection: IP67, dust and water resistant
- Coupling Type: Bayonet
- Contact Termination: Solder
- Rated Current: 13A (2P), 5A (3P, 4P), 5A (5P, 7P)
- Rated Voltage: up to 250V
- Number of Contacts: 2, 3, 4, 5, 7
- Mating Cycles: 500
- Contact Resistance: 2.5mΩ (2P), 5mΩ (others)
- Cable Outer Diameter Range: 4mm to 8mm
- Connector Configurations: Panel Mount, Cable Mount, Inline
- Accessories: Dust Cap available
- Application: industrial automation, outdoor equipment, control systems
Buy the Multicomp Pro MP002629 – Reliable Weatherproof Connectors for Industrial Applications
Enhance your industrial setup with the rugged and reliable IP67 circular connectors. Designed with quick bayonet coupling, these connectors are suitable for outdoor and harsh environments. Available in multiple configurations with durable materials, brass contacts, and gold plating, they ensure excellent conductivity and longevity. Easy to install on panels or cables, they support a wide range of applications including automation, security, and process control. Purchase online today to secure high-performance, weatherproof connectivity for your critical systems.
Get Multicomp Pro MP002629 today—built for rugged outdoor use with quick bayonet coupling and IP67 weather resistance.
