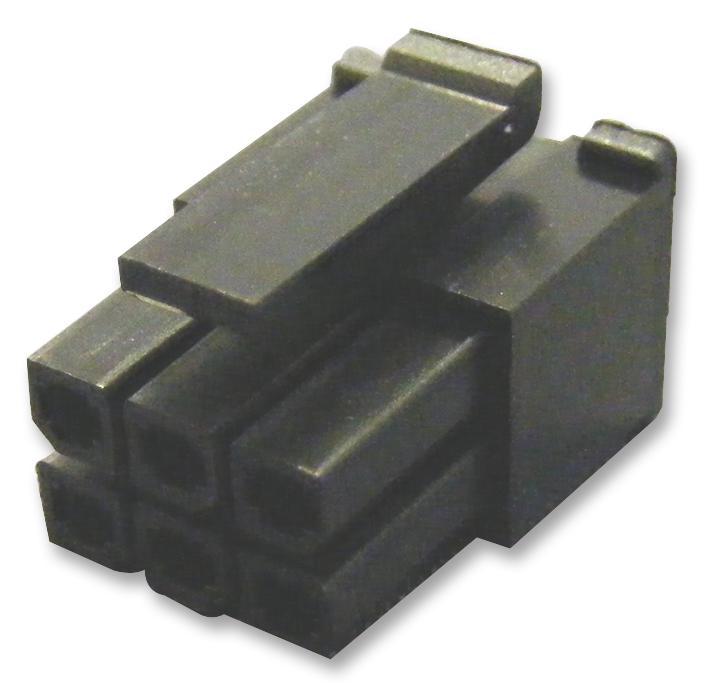

MULTICOMP PRO MC34573 Dual Row Connectors
Multicomp Pro provides a versatile series of 4.2mm wire to wire dual row connectors designed for reliable electrical connections in various electronics applications. These connectors support wire sizes from 26AWG to 16AWG and feature a robust nylon 66 housing with tin-plated phosphor bronze or brass terminals for durability and signal integrity. Rated at 9A AC/DC and 100V AC/DC, they withstand voltages up to 1,500V AC for one minute, with an insulation resistance of 1,000MQ min. Operating temperature ranges from -40°C to +105°C, making them suitable for diverse environments.
MULTICOMP PRO MC34573 Dual Row Connectors Specifications:
- Current Rating: 9A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 00Ω Max.
- Receptacle Insulation Resistance: 1,000MQ Min.
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Wire Size: 26AWG to 16AWG
- Housing Material: Nylon 66
- Terminal Material: Phosphor Bronze or Brass Tin Plated
- Max Panel Thickness: 2mm
- Circuit Variants: 2 to 20 circuits with specific dimensions for each
Buy the Buy Multicomp Pro Electronic Connectors Part Number MC34573 Online
Experience the convenience of online purchasing with Multicomp Pro dual row connectors. Built for reliable electrical connections supporting wire sizes from 26AWG to 16AWG, rated at 9A and 100V, these connectors feature a sturdy nylon 66 housing, tin-plated terminals, and can withstand voltages up to 1,500V AC for one minute. Operating efficiently in temperatures from -40°C to +105°C, they are ideal for various electronic assemblies. Buy online now to ensure quality and quick delivery for your projects.
Buy Multicomp Pro MC34573 now and experience unmatched reliability and high-performance electrical connections with durable nylon housings.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34573?
You can click on the BUY or RFQ button to purchase MC34573 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34573?
You can download the MC34573 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34573?
MULTICOMP PRO
