MULTICOMP PRO MP002633 circular connectors
The IP67-rated circular connector series offers robust connectivity solutions designed for harsh environments. Featuring bayonet coupling for quick installation, these connectors come in panel, cable, and inline configurations, supporting multiple pole counts from 2 to 7 poles. Made with durable nylon66 shells and PPS inserts, they withstand temperatures up to 260°C. Brass contacts with gold plating ensure excellent conductivity, with solder terminations for reliable wiring. Rated for 13A current and 250V voltage, these connectors are suited for industrial automation, process control, and outdoor applications, providing high resilience and easy connectivity.
MULTICOMP PRO MP002633 circular connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MQ
- Rated Current: 13A (2P), 5A (3P,4P,5P,7P)
- Rated Voltage: 250V (2P,3P), 200V (4P), 180V (5P), 125V (7P)
- Contact Diameter: 1.6mm (2P), 1mm (3P,4P,5P,7P)
- Cable Outer Diameter Range: 4mm to 6.5mm/Smm to 8mm
- Mating Cycles: 500, suitable for industrial applications
- Available configurations: panel mount, cable mount, inline connector
- Optional dust cap for protection

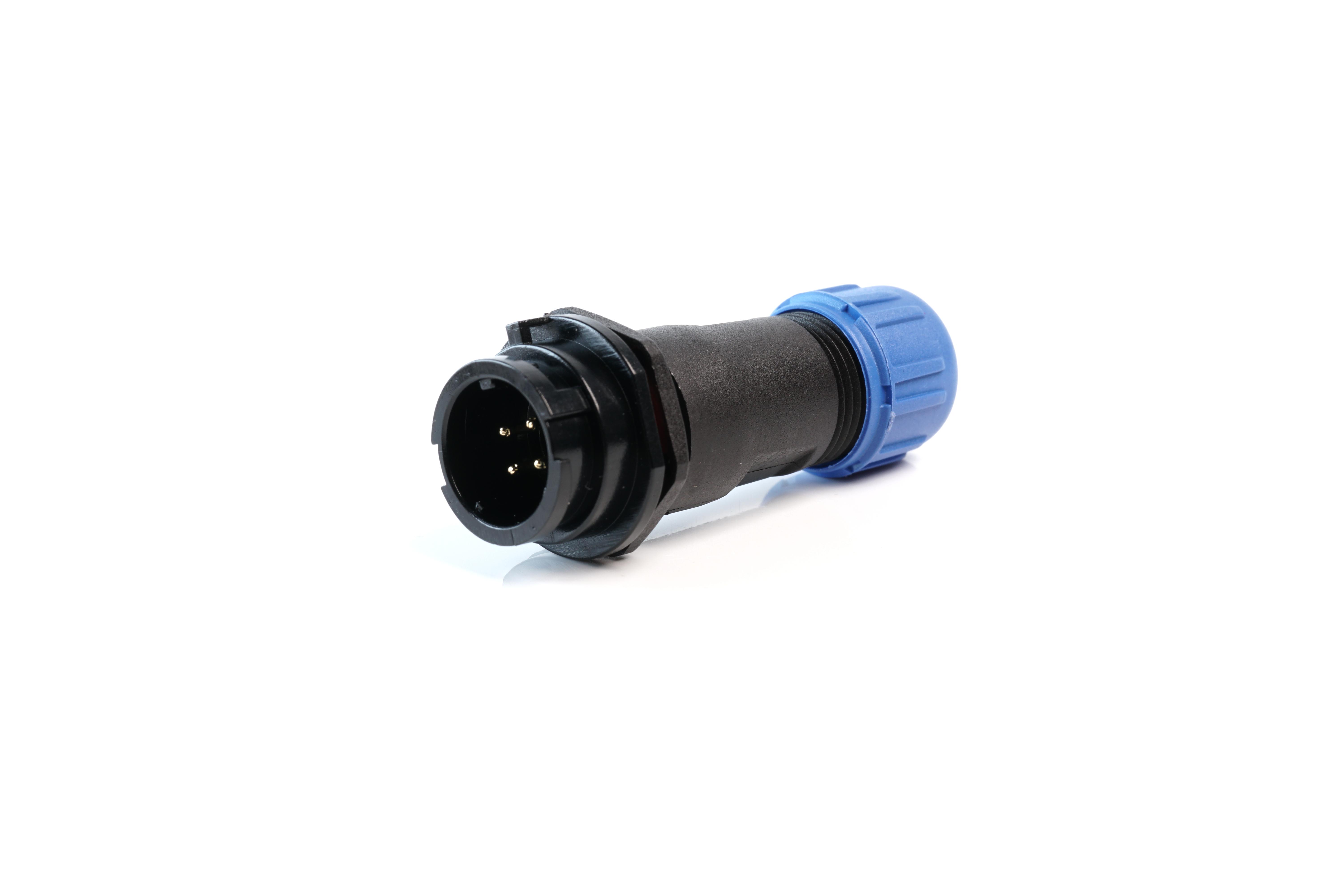

Buy the Industrial Connectors 13- Reliable IP67 Circular Connectors for Industrial Applications
Enhance your industrial connectivity with our durable IP67 circular connectors. Designed with bayonet coupling for quick connection, suitable for outdoor and indoor use. These connectors support various configurations including panel, cable, and inline mount, featuring brass contacts with gold plating for superior conductivity. With a temperature range of -40°C to +80°C, 500 mating cycles, and waterproof sealing, they are ideal for automation, process control, and security systems. Purchase online today to ensure dependable, weatherproof connections in your projects.
Buy IP67 circular connectors now from Multicomp Pro and experience reliable, weatherproof connections suitable for harsh environments and industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002633?
You can click on the BUY or RFQ button to purchase MP002633 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002633?
You can download the MP002633 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002633?
MULTICOMP PRO
