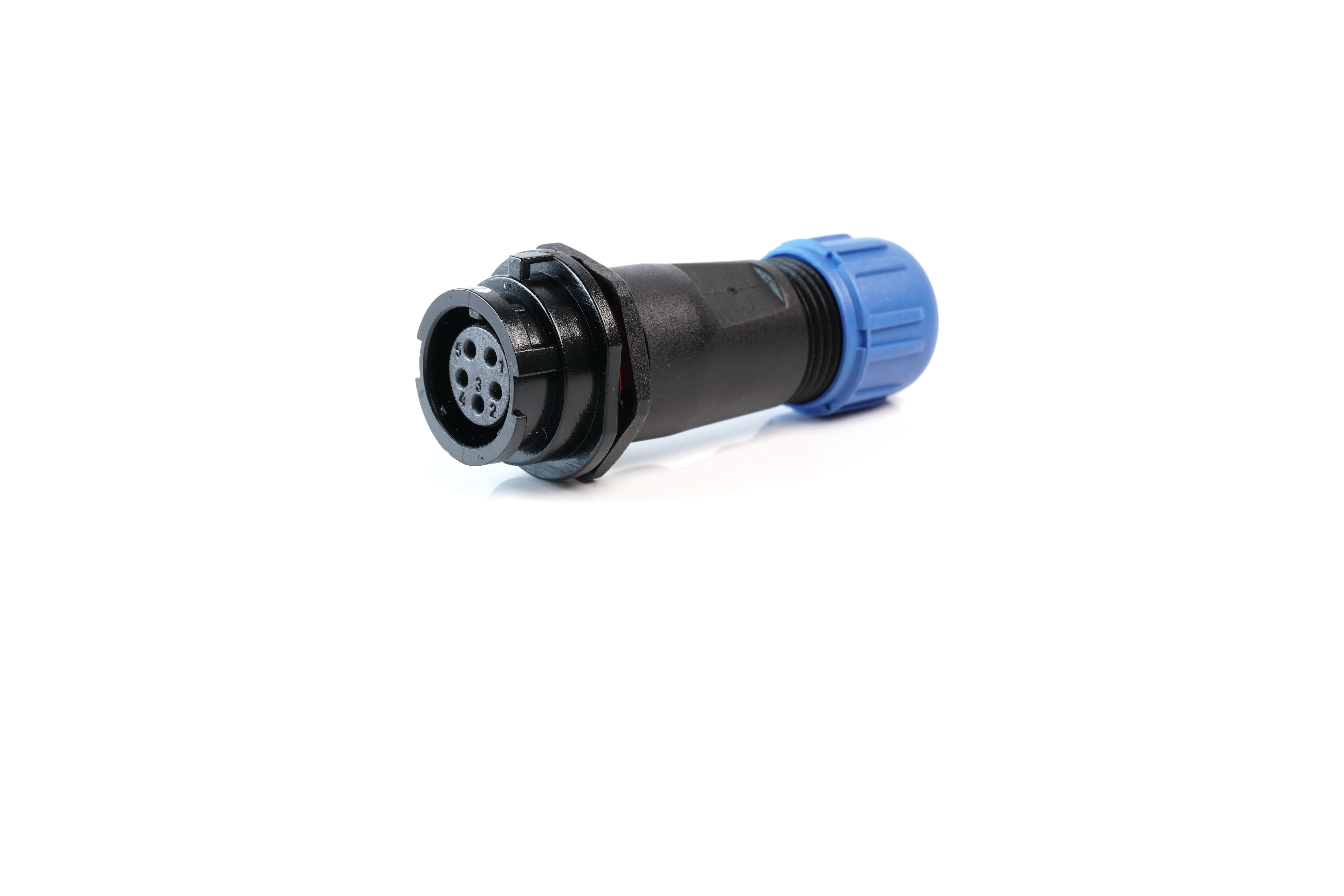

MULTICOMP PRO MP002639 circular connector
The MP-T13 IP67 series connectors offer durable, weatherproof solutions for cable-to-panel or cable-to-cable connections, featuring bayonet coupling mechanisms for quick, secure attachment. Designed with nylon66 shells and PPS inserts capable of withstanding up to 260°C, these connectors are ideal for outdoor and industrial applications. They support multiple pole configurations—2, 3, 4, 5, and 7 poles—and utilize solder termination. Certified with IP67, they provide excellent dust and water resistance, making them suitable for automation, process control, medical, security, testing, and measurement environments. Available with an IP67-rated dust cap for added protection.
MULTICOMP PRO MP002639 circular connector Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- IP Rating: IP67
- Mating Cycle: 500
- Contact Resistance: 2.5 mΩ for 2-4 pole, 5 mΩ for 5-7 pole
- Rated Current: 13A for 2 poles, 5A for 3-7 poles
- Rated Voltage: 250V for 2-4 poles, 200V to 125V for 5-7 poles
- Wire Size: 14 AWG (2 mm²) for 2 poles, 18 AWG (0.75 mm²) for 3-7 poles
- Connector Types: Cable mount, in-line cable mount, rear panel mount
- Dimensions: suitable for 4mm to 6.5mm cable outer diameter, panel cutout about 13mm, overall robustness for industrial use
- Coupling: Bayonet type for quick connect/disconnect
- Compatibility: Suitable for automation, process control, medical devices, security systems, testing and measurement, industrial automation
- Additional: Supports solder termination, features a dust cap for enhanced environmental protection
Buy the Multicomp Series IP67 Circular Connectors: MP002639
Enhance your industrial, automation, or outdoor projects with the high-quality IP67-rated circular connector MP002639. Designed for durability and easy quick connection, these connectors feature bayonet coupling, solder termination, and a robust nylon66 shell. They support multiple configurations with 2, 3, 4, 5, and 7 poles, ensuring flexible installation options. With excellent environmental sealing and a rated temperature range from -40°C to +80°C, these connectors are perfect for demanding environments. Purchase online today for seamless integration and lasting performance.
Buy Multicomp IP67 connectors MP002639 now and experience unmatched reliability and performance in harsh industrial and outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002639?
You can click on the BUY or RFQ button to purchase MP002639 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002639?
You can download the MP002639 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002639?
MULTICOMP PRO
