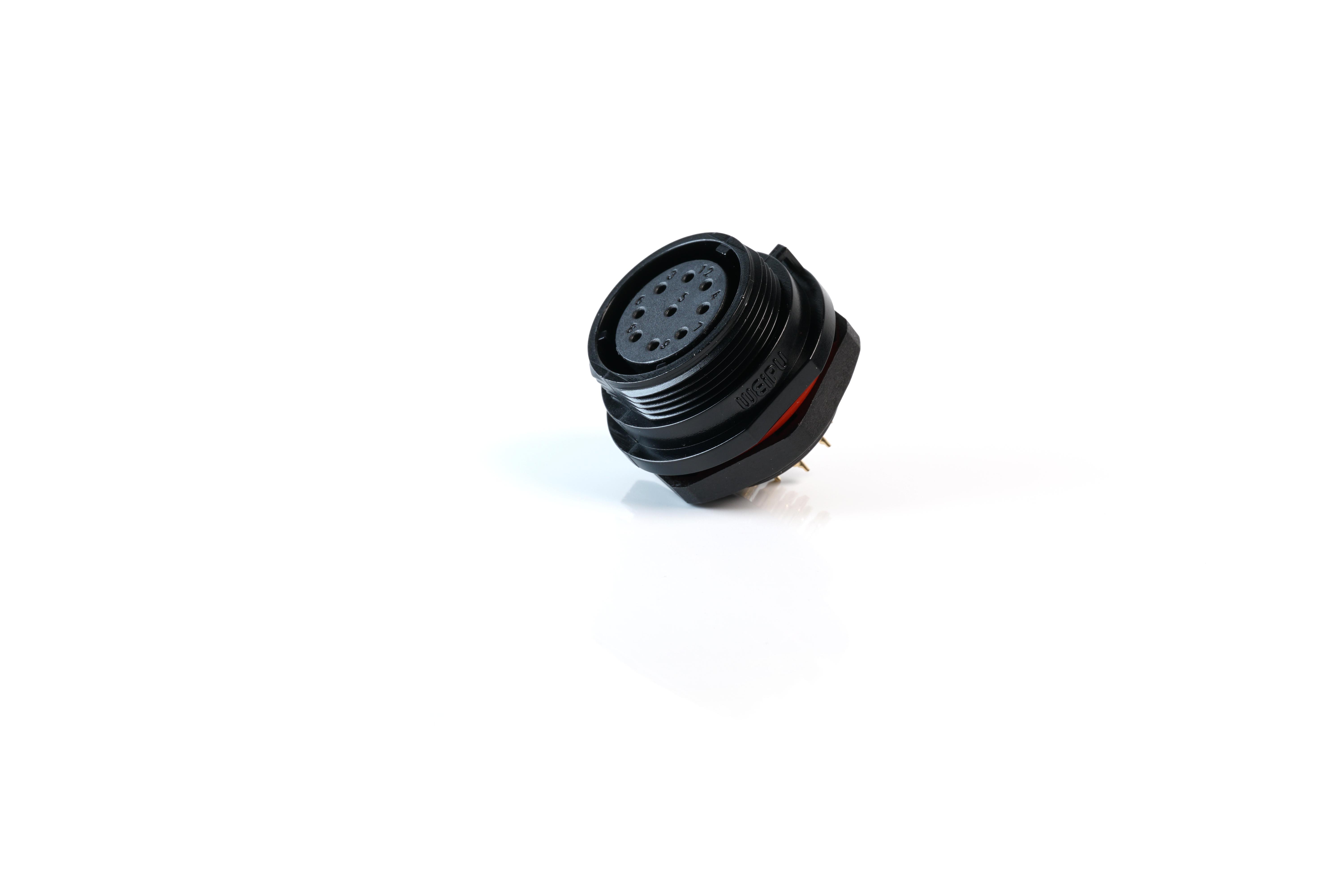

MULTICOMP PRO MP002617 Industrial Connectors
The MP-T21 IP68 series connectors are highly durable, weatherproof, and suitable for demanding indoor and outdoor environments. These cable and panel mount connectors feature threaded coupling, IP68 sealing, and options with solder or screw terminations. Designed to fit 21mm cut-outs, they come in configurations with 2, 3, 4, 5, 7, 9, and 12 poles, making them versatile for industrial automation, security systems, medical devices, and test equipment. An IP68 dust cap provides extra protection, ensuring reliable connections in harsh conditions.
MULTICOMP PRO MP002617 Industrial Connectors Specifications:
- Sealing: IP68
- Coupling: Threaded
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and Screw
- Temperature Range: -40°C to +85°C
- Contact Resistance: 1 mΩ
- Rated Current: 30 A (2-4 poles), 15 A (5 poles), 5 A (7-12 poles)
- Rated Voltage: 500 V (2-5 poles), 400 V (9-12 poles)
- Mating Cycle: 500
- Compliance: RoHS
Buy the Multicomp IP68 – Reliable Industrial Connectors for Rugged Environments
Order the Multicomp IP68 connectors online today for rugged, weatherproof connections in industrial automation, medical, security, and outdoor systems. These connectors provide high durability with threaded coupling, IP68 sealing, and versatile configurations including cable mount, panel mount, and in-line options. Designed for demanding environments, they offer reliable solder or screw termination options across various pole counts. Protect your equipment efficiently with dedicated dust caps. Ensure secure, waterproof connections that withstand harsh conditions by purchasing now from trusted online distributors.
Buy Multicomp IP68 connectors now and experience unmatched reliability and performance in demanding industrial applications.
