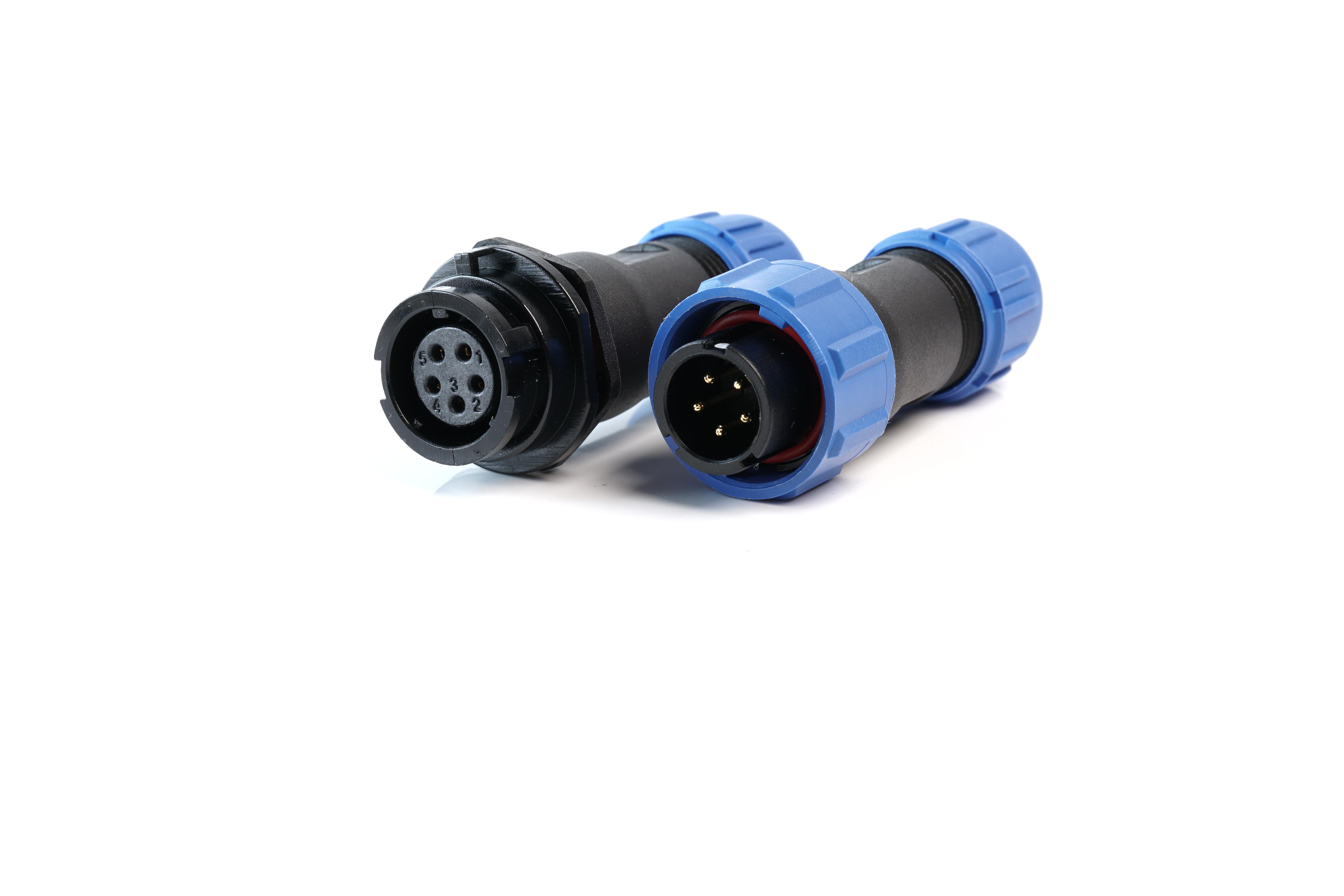

MULTICOMP PRO MP002644 Industrial Connectors
The MP-T13 IP67 series connectors are highly durable and weather-resistant, featuring bayonet coupling for secure, quick connections suitable for outdoor and industrial use. Available in panel, cable, and inline mounting options, they support various configurations with 2, 3, 4, 5, and 7 poles, and are rated IP67 for dust and water protection. Crafted with nylon66 shells, PPS inserts, gold-plated brass contacts, and solder termination, these connectors handle voltages up to 250V and currents up to 13A, with a maximum temperature of 80°C. Ideal for automation, security, and industrial applications, they offer reliable connectivity in harsh environments.
MULTICOMP PRO MP002644 Industrial Connectors Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- IP Rating: IP67 dust and water resistance
- Coupling Type: Bayonet
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Rated Voltage: 250V
- Rated Current: 13A
- Maximum Temperature: 80°C
- Mating Cycles: 500
- Temperature Range: -40°C to +80°C
- Dimensions: 4mm to 6.5mm cable outer diameter range
- Shell Material: Nylon66 V-0 fire resistant
- Insert Material: PPS, max. temperature 260°C
- Contact Resistance: 5mΩ (max)
- Insulation Resistance: 2000MΩ
- Contact Diameter: 1.6mm (male), 1mm (female)
- Test Voltage: 1500V (1 min.)
- Includes optional dust cap for additional environmental protection
Buy the Multicomp Series IP67 Connectors: MP002644
Enhance your outdoor and industrial connectivity with the durable IP67-rated connectors from the Multicomp Series. Featuring bayonet coupling for quick and secure connection, these connectors are available in multiple configurations including 2, 3, 4, 5, and 7 poles. Crafted with high-quality nylon66 shells, PPS inserts, and gold-plated brass contacts, they ensure stable performance even in harsh environments. Suitable for automation, security systems, and process control, these connectors provide waterproof, dustproof, and vibration-resistant connections. Buy online today for dependable industrial performance.
Order your Multicomp Series IP67 Connector MP002644 today and secure reliable, weatherproof connectivity for your industrial projects.
