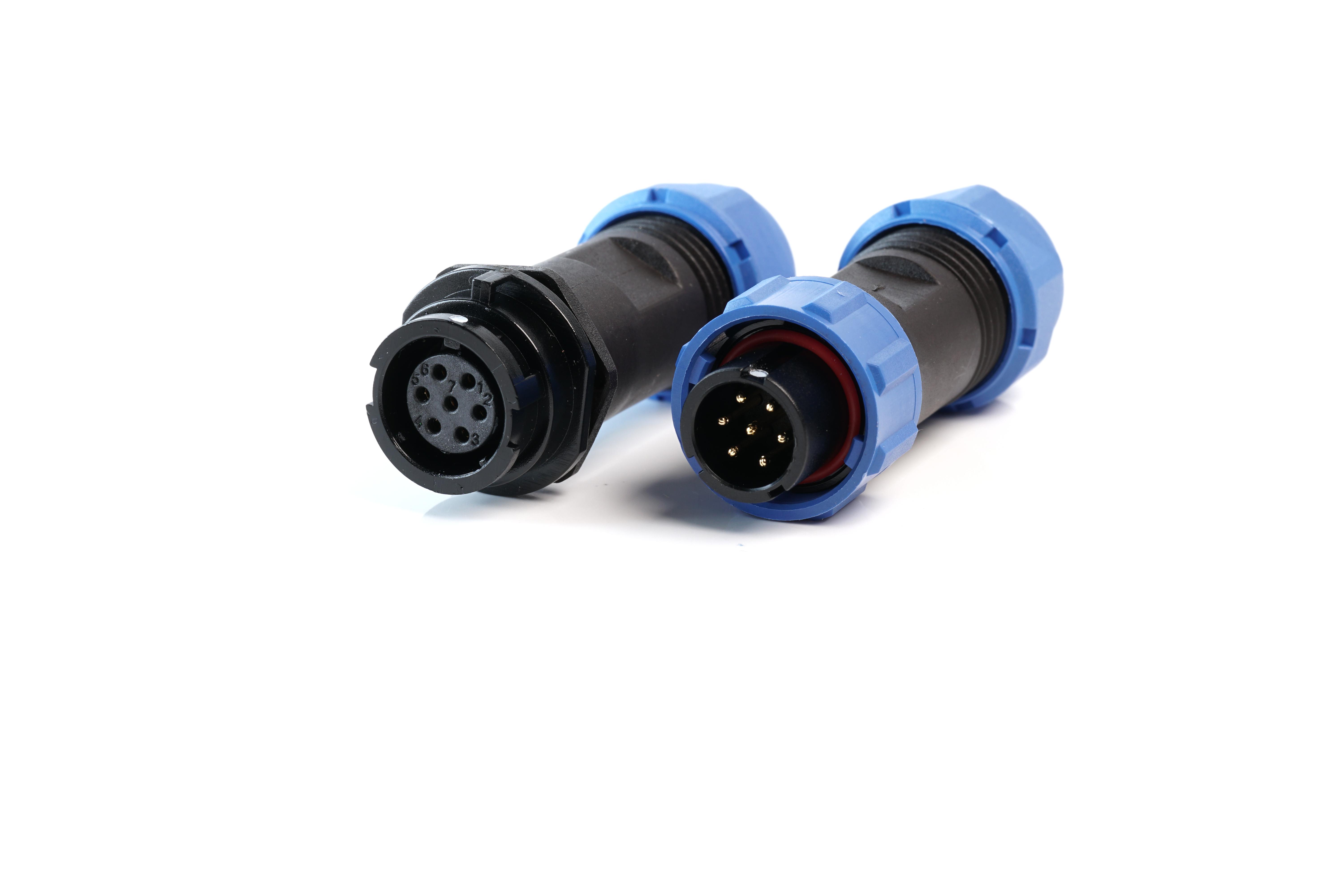

MULTICOMP PRO MP002645 Industrial Connector
The MP-T13 IP67 series offers robust, weatherproof connectors with bayonet coupling for fast connections. Suitable for indoor and outdoor use, these connectors come in panel, cable, and inline mount options, supporting quick assembly. They are rated IP67 for water and dust resistance, featuring solder termination and a 13mm cut-out size. Available in 2, 3, 4, 5, and 7 pole configurations, with an optional sealing cap to ensure long-lasting durability. Perfect for automation, industrial control, medical, and security applications, providing reliable connectivity in harsh environments.
MULTICOMP PRO MP002645 Industrial Connector Specifications:
- Coupling Type: Bayonet
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Resistance: 2.5 mΩ (at 20mV, 100mA)
- Rated Voltage: 250V (up to 3P), 200V (4P), 180V (5P), 125V (7P)
- Rated Current: 13A (2P), 5A (3-7P)
- Wire Size: 2/14 AWG
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Compatible with 13mm cut-out, various pole configurations
- Mating Cycle: 500
- Ingress Protection: IP67
- Operating Temperature: -40°C to +80°C
Buy the Buy Multicomp IP67 Connector Part Number MP002645 Online
Order the Multicomp IP67 industrial connector MP002645 now to ensure durable, waterproof connectivity for automation, control, and outdoor applications. Featuring bayonet coupling for quick connection and multiple pole options, this connector supports harsh environments with its IP67 rating. It is suitable for panel, cable, and inline mounting, offering solder termination for secure electrical connections. With a maximum temperature of 80°C and a robust brass contact with gold plating, this connector guarantees long-lasting, reliable performance in demanding industrial, medical, and security systems. Purchase online today for prompt delivery and quality assurance.
Get Multicomp IP67 Connector MP002645 today—designed for reliable, weatherproof performance in industrial and outdoor environments.
