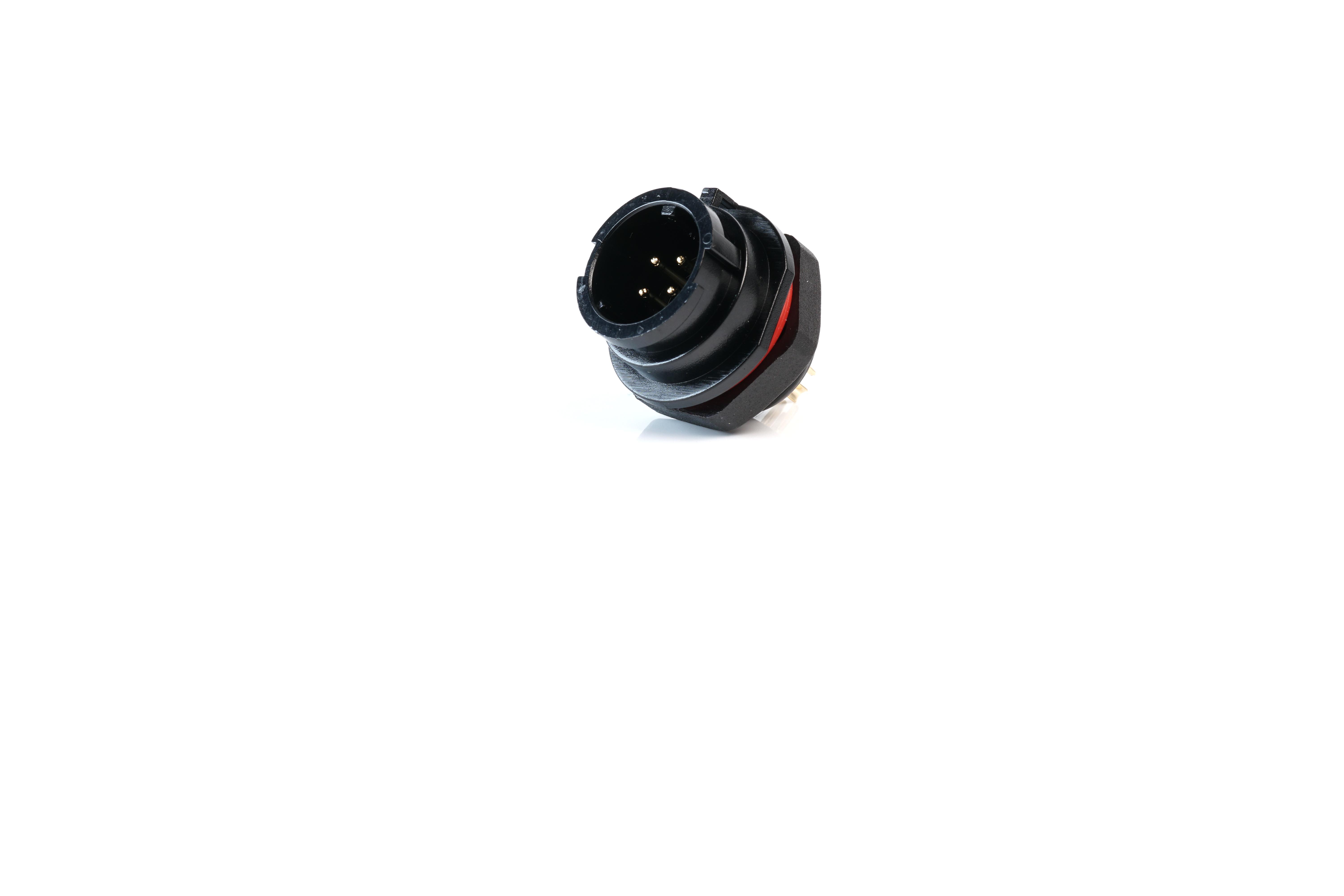

MULTICOMP PRO MP002648 Industrial Connector
The MP-T13 IP67 series is a durable connector range featuring bayonet couplings for quick and easy connection and disconnection. These connectors are available in panel mount, cable mount, and in-line cable mount configurations, enabling cable-to-panel or cable-to-cable connections. They are weatherproof with an IP67 rating, making them suitable for both indoor and outdoor applications. The connectors fit a 13mm cut-out, utilize solder termination, and come in various pole configurations including 2, 3, 4, 5, and 7 poles. An IP67 cap is also available. Ideal for use in automation and process control, medical, security, test and measurement, and industrial automation sectors.
MULTICOMP PRO MP002648 Industrial Connector Specifications:
- IP Rating: IP67
- Material: Nylon66 shell, PC insert housing, Brass contacts with gold plating
- Coupling Type: Bayonet
- Termination: Solder
- Contact Diameter: 1.6 mm (2P), 1 mm (3-7P)
- Rated Current: 13A (2P), 5A (3-7P)
- Rated Voltage: 250V (2P), 200V-125V (3-7P)
- Test Voltage: 1500V (1 min.)
- Contact Resistance: 2.5 mΩ (2P), 5 mΩ (3-7P)
- Cable Outer Diameter Range: 4mm to 8mm
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Dimensions: Fits panel cutout, approximately suitable for 13mm hole
- Available with dust cap for receptacle protection
Buy the Buy Multicomp IP67 Connector Part Number MP002648 Online
Purchase the Multicomp IP67 industrial connector MP002648 online today—engineered for robust outdoor use with weatherproof IP67 protection. Featuring bayonet coupling for quick connection and disconnection, these connectors are perfect for automation, instrumentation, and control applications. Available in various configurations including panel, cable, and in-line mount options with different pole counts. Made from durable nylon66 shell, brass contacts with gold plating, and a solder termination process, ensuring excellent electrical performance, high durability, and long-lasting reliability in harsh environments. Order now for fast delivery and seamless integration into your industrial systems!
Get Multicomp IP67 connector MP002648 today—designed for outdoor durability and reliable quick connect in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002648?
You can click on the BUY or RFQ button to purchase MP002648 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002648?
You can download the MP002648 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002648?
MULTICOMP PRO
