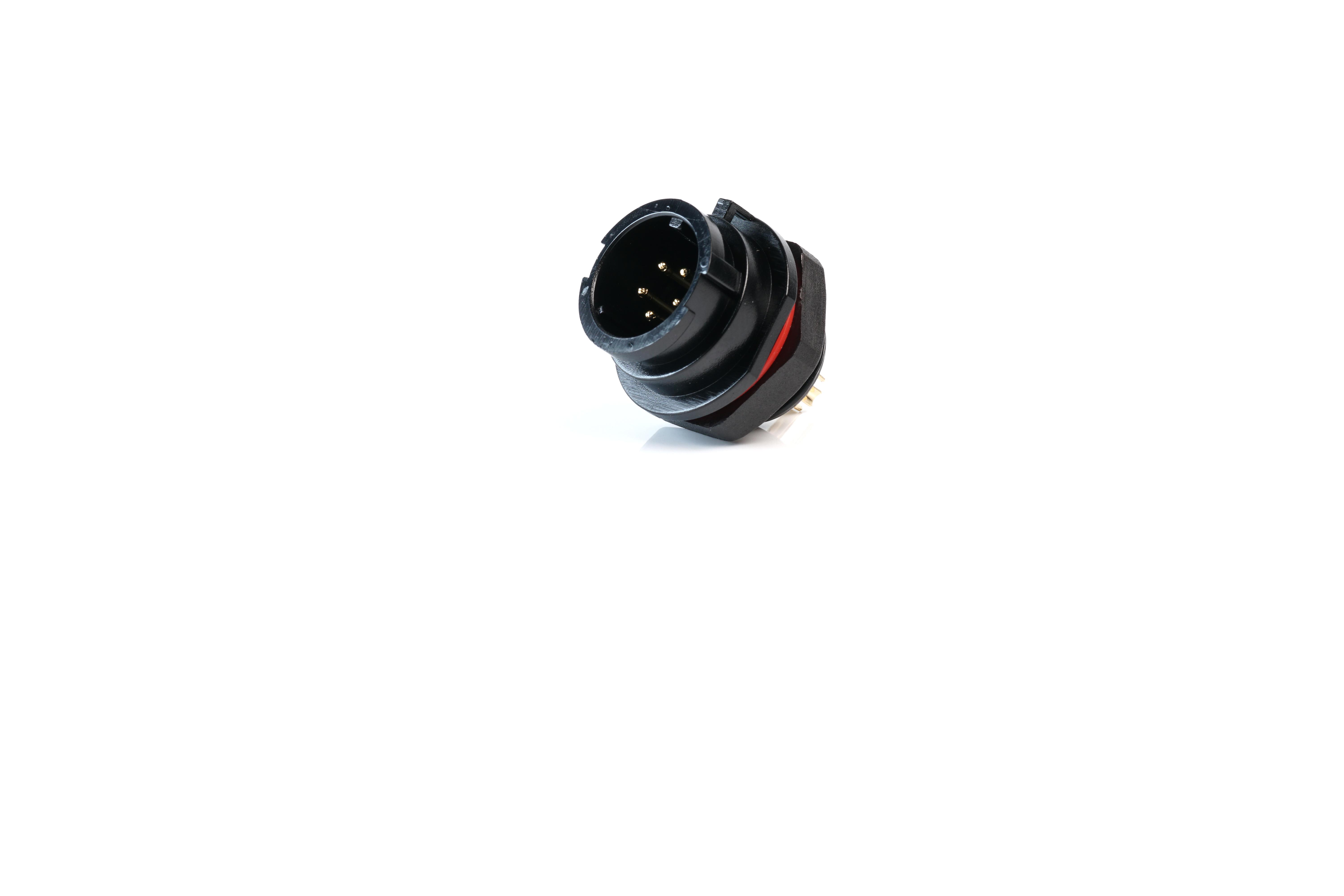

MULTICOMP PRO MP002649 IP67 Connector
The MP-T13 series of IP67-rated connectors offers durable, secure bayonet coupling mechanisms for easy connection and disconnection in various configurations, including panel, cable, and in-line cable mount. Designed for outdoor and harsh environments, these connectors feature weatherproof sealing, solder termination, and options with 2, 3, 4, 5, or 7 poles. They support up to 500 mating cycles, operate within -40°C to +80°C temperatures, and are suitable for automation, medical, security, and industrial applications. An optional IP67 dust cap provides additional environmental protection, ensuring reliable connectivity in demanding conditions.
MULTICOMP PRO MP002649 IP67 Connector Specifications:
- IP67 weatherproof rating for outdoor use
- Bayonet coupling mechanism for quick connection
- Materials: Nylon66 shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Mating Cycles: 500
- Rated Voltage: 125V to 250V
- Rated Current: 5A to 13A depending on configuration
- Contact Diameter: 1mm to 1.6mm
- Solder termination contacts
- Max. cable outer diameter: 4mm to 8mm
- Includes optional dust cap MP002656 for outdoor protection
- Configurations: 2P, 3P, 4P, 5P, 7P
- Panel cutout size: 13mm
- Connector set options available for quick assembly
- RoHS compliant
Buy the Buy Multicomp IP67 Connectors Part Number MP002649 Online
Enhance your project’s reliability with our IP67-rated connector series featuring bayonet coupling for secure, quick connections. Designed for harsh environments, these connectors support cable-to-panel and cable-to-cable configurations with multiple pole options, solder termination, and a weatherproof seal. They are constructed with durable nylon66 shells, brass contacts with gold plating, and support up to 500 mating cycles. An optional dust cap ensures additional environmental protection, making them suitable for automation, industrial, and outdoor applications. Purchase online today for dependable performance.
Order your Multicomp SeriesMP002649 IP67 Connector today and ensure reliable, weatherproof connections for your outdoor or industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002649?
You can click on the BUY or RFQ button to purchase MP002649 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002649?
You can download the MP002649 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002649?
MULTICOMP PRO
