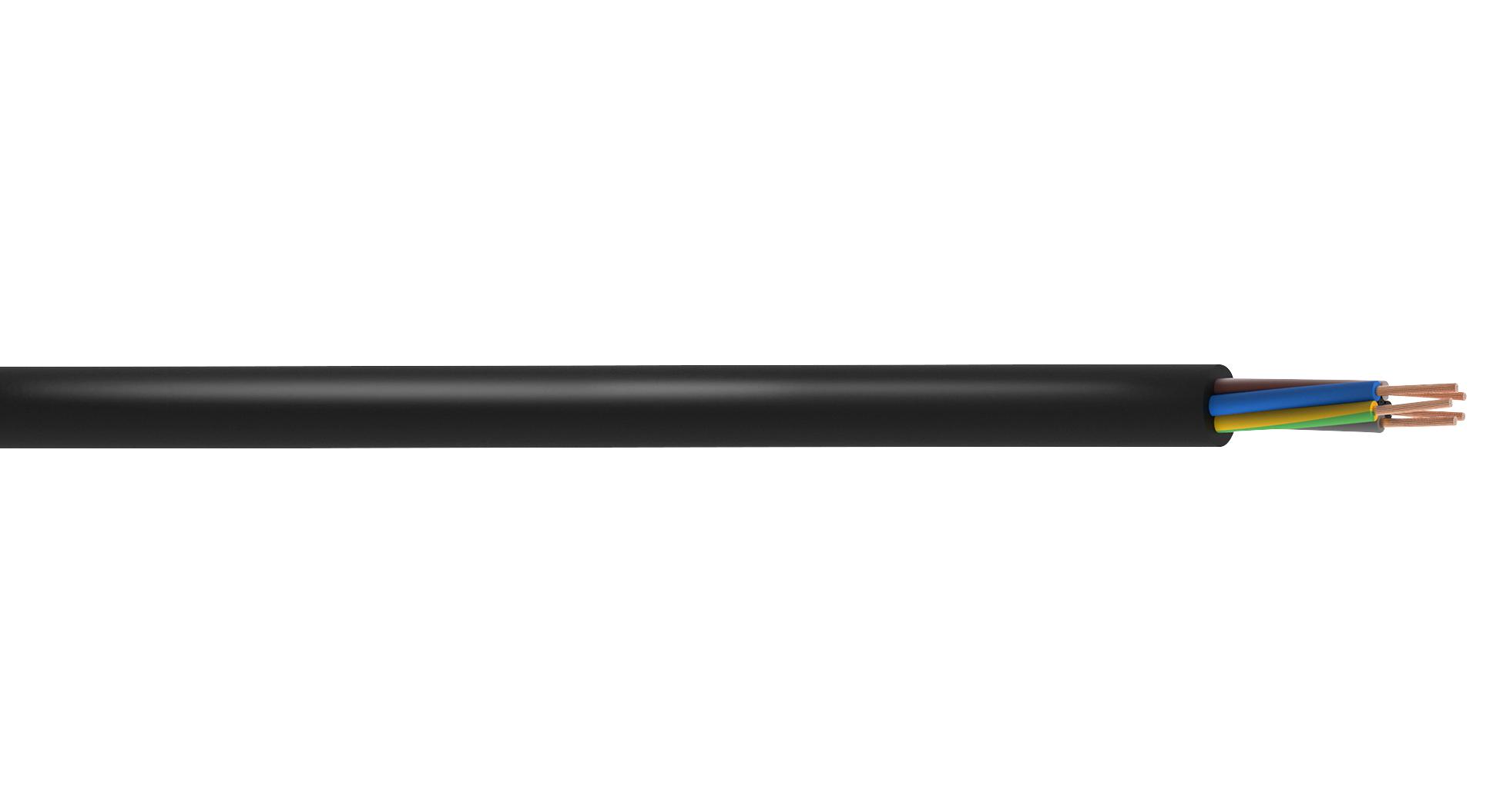

MULTICOMP PRO PP002150 Flexible Rubber Cable
This flexible rubber cable is designed for industrial and outdoor applications requiring high flexibility and resistance to weather, oil, and mechanical stresses. It features a high voltage rating of 450/750V, with a temperature range from -30°C to +85°C for fixed installations and -15°C to +60°C for flexed use. The cable construction includes a Class 5 flexible copper conductor, EPR insulation, and a PCP sheath, conforming to BS EN 50525-2-21 standards. Suitable for handling equipment, power supplies, stage, water treatment, and severe environments. Available in various core configurations and sizes, with durable black sheath and compliant with international safety standards.
MULTICOMP PRO PP002150 Flexible Rubber Cable Specifications:
- Voltage Rating (Uo/U): 450/750V
- Temperature Rating: Fixed: -30°C to +85°C, Flexed: -15°C to +60°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Core Identification: 2 cores: Blue, Brown; 3 cores: Green/Yellow, Blue, Brown; 4 cores: Green/Yellow, Brown, Black, Grey; 5 cores: Green/Yellow, Blue, Brown, Black, Grey
- Sheath Colour: Black
- Conductor: Class 5 flexible copper to BS EN 60228
- Insulation: EPR (Ethylene Propylene Rubber) Type El4
- Sheath: PCP (Polychloroprene) Type EM2
- Construction compliance: BS EN 50525-2-21, BS EN 60811-2-1
- Maximum conductor operating temperature: 60°C
- Wire sizes: 1mm² to 6mm² available with respective dimensions, weights, and part numbers
- Max Resistance of Conductors at 20°C: 19.5Ω for 1mm², 13.3Ω for 1.5mm², 7.98Ω for 2.5mm², 4.95Ω for 4mm², 3.3Ω for 6mm²
Buy the Buy Multicomp PRO Flexible Rubber Cable Part Number PP002150 Online
Discover the superior durability and flexibility of our rubber cable, ideal for industrial, outdoor, and water treatment applications. With a voltage rating of 450/750V and temperature tolerance from -30°C to +85°C, this cable offers excellent resistance to weather, oil, and mechanical stresses. Designed with flexible copper conductors, EPR insulation, and a robust PCP sheath, it conforms to BS EN standards. Available in multiple core configurations and sizes, ensuring compatibility with various handling and power supply needs. Purchase online for fast delivery and reliable performance in demanding environments.
Buy Multicomp PRO PP002150 now and experience unmatched reliability and performance in severe industrial and outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002150?
You can click on the BUY or RFQ button to purchase PP002150 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002150?
You can download the PP002150 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002150?
MULTICOMP PRO
