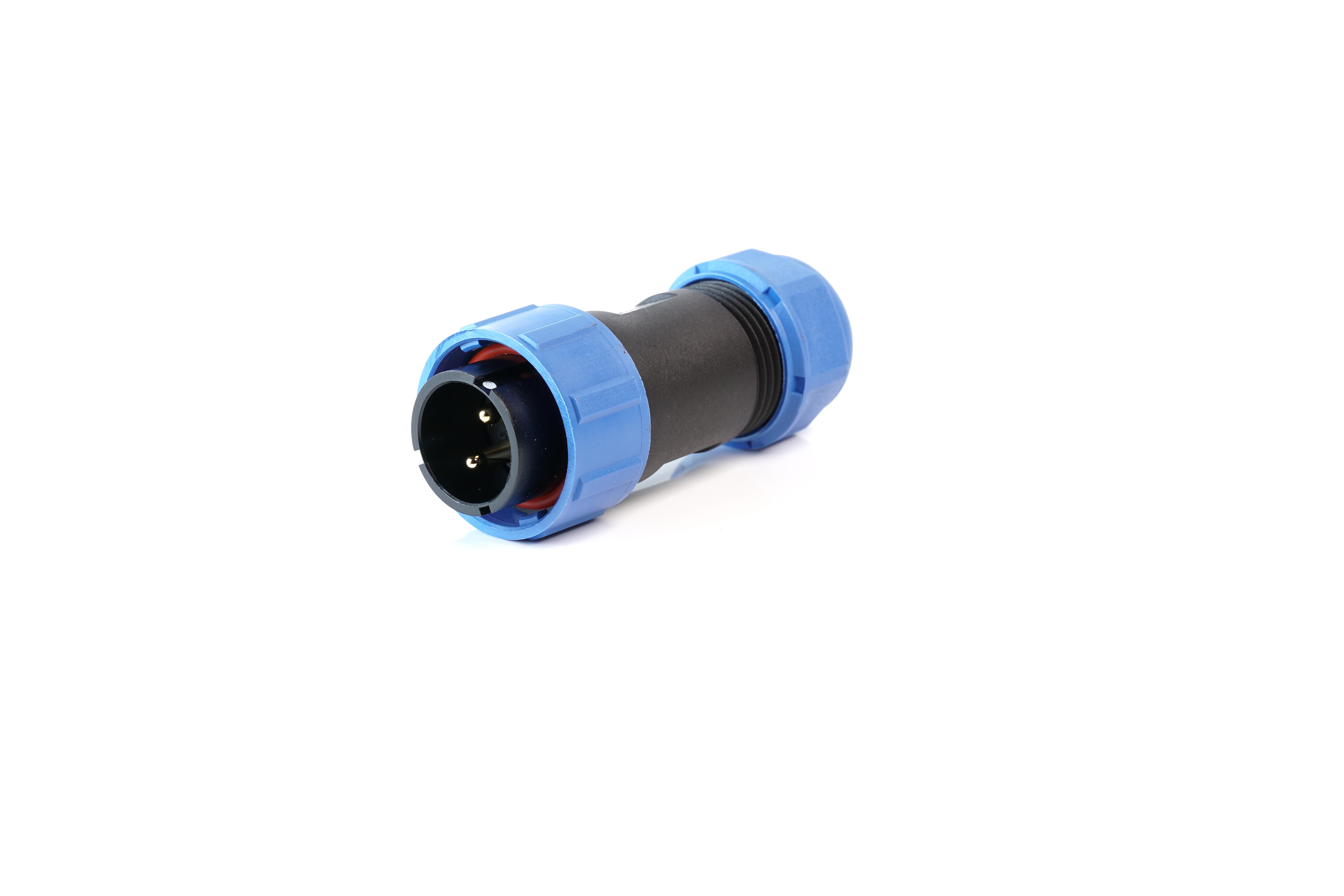

MULTICOMP PRO MP002657 industrial connector
The MP-T21 IP67 series connectors are robust, weatherproof solutions designed for secure and quick bayonet coupling connections in industrial and outdoor environments. These connectors come in panel mount, cable mount, and inline configurations, supporting various pole counts such as 2, 3, 4, 5, 7, 9, and 12 poles. Made with durable nylon66 shells, PPS inserts, and brass contacts with gold plating, they support solder and screw terminations. Featuring an IP67 rating with protection caps, they are ideal for automation, security, medical, and measurement applications with high resistance to dust and water ingress.
MULTICOMP PRO MP002657 industrial connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance (MQ): 2000
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5A to 30A depending on contact, Voltage: 400V to 500V
- Termination: Solder and Screw
- Cable Outer Diameter: up to 12mm
- Insertion Applications: Panel, Cable, Inline, Outdoor
- Protection Cap: Included for sealing when disconnected
Buy the Buy multicomp Series MP002657 Part Number MP002657 Online
Secure your automation and outdoor connection needs with the robust multicomp Series IP67 connectors. Featuring bayonet coupling, flexible configurations, and IP67 protection, these connectors guarantee durability and reliable performance in harsh environments. Suitable for panel, cable, and inline mounting, with options for solder or screw termination. Properly sealed with included caps when not in use, they support multiple poles and meet stringent industrial standards, making them ideal for process control, security systems, or medical equipment where dependable connectivity is essential.
Order your multicomp Series MP002657 IP67 Connector today and ensure reliable, rugged, weatherproof connections for your industrial projects.
