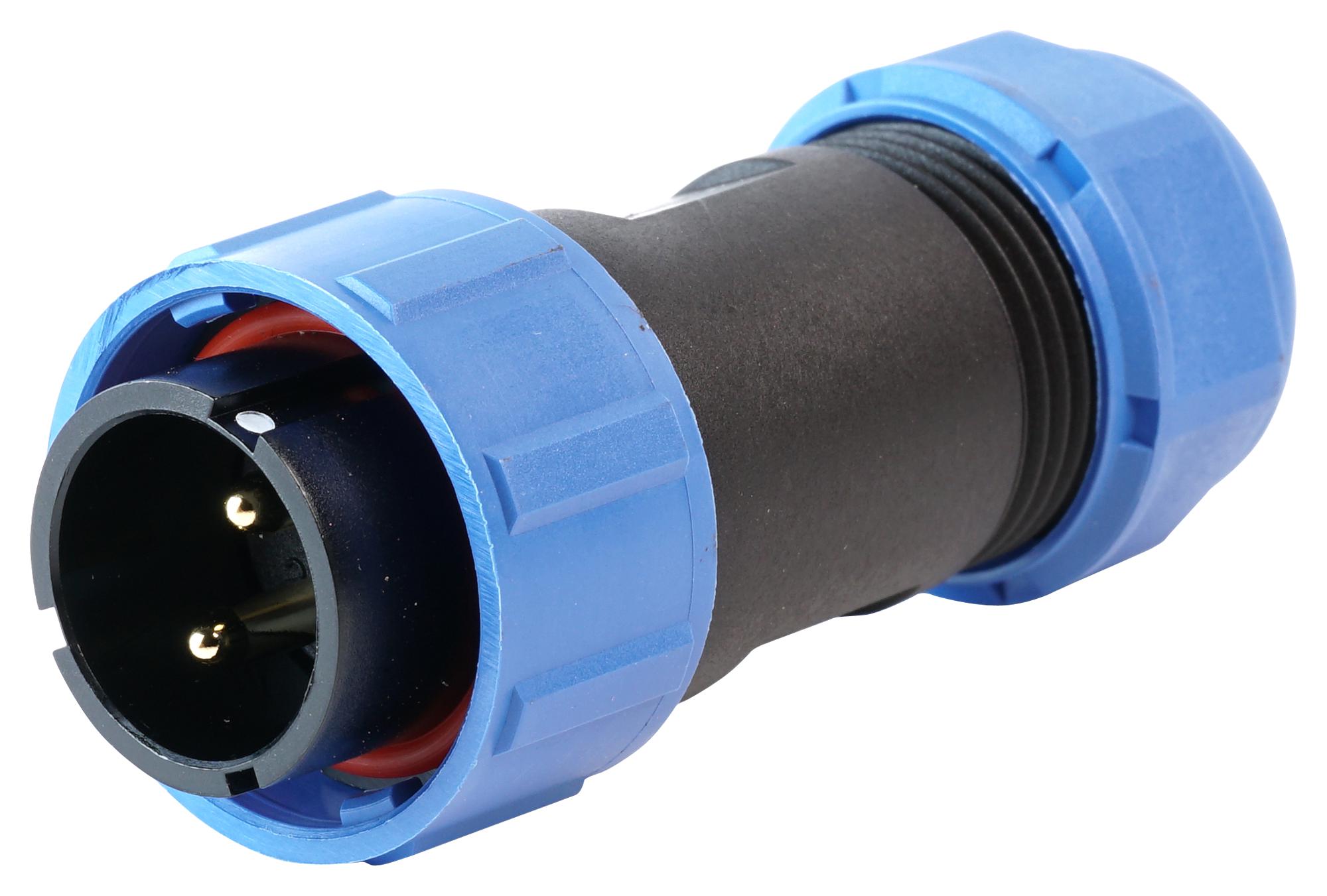

MULTICOMP PRO MP002658 Industrial Connectors
The MP-T21 IP67 series offers robust connectors with bayonet coupling for quick, secure connections suitable for outdoor and indoor applications. Available in panel, cable, and inline mounts, these connectors support versatile wiring options with solder or screw terminations. Rated IP67 for weatherproof performance and supporting various configurations from 2 to 12 poles, they are ideal for automation, process control, security, medical devices, and industrial applications. An IP67 protective cap provides additional sealing, ensuring durability and reliable connections in harsh environments.
MULTICOMP PRO MP002658 Industrial Connectors Specifications:
- Coupling: Bayonet
- Material: Nylon66 for shell, insert material PPS max. 260°C, contact material Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1-3 mm depending on pole count
- Rated Current: 5-30 A depending on contact size
- Rated Voltage: 400-500 V
- Test Voltage: 1200-1500 V
- Contact Resistance: 1-5 mΩ
- Termination: Solder or screw
- Connector Types: Panel, cable, and inline mount
- Suitable for outdoor use, weather-resistant
- Supports connections from 2 to 12 contacts
- Additional: Includes optional IP67 protective dust cap
Buy the Multicomp Series IP67 Industrial Connectors MP002658
Purchase multicomp:ro IP67 connectors online now for durable, weatherproof connections suitable for automation, industrial, and outdoor environments. These connectors feature bayonet couplings for quick installation and support various configurations from 2 to 12 poles. Available in panel, cable, and inline mounts with optional sealing caps, ensuring reliable performance in harsh conditions. Rated IP67 for dust and water resistance, they are ideal for process control, security systems, medical devices, and industrial automation. Order today to enhance your project's connection robustness and operational reliability.
Order your multicomp:ro series IP67 connectors today and give your industrial projects the dependable weather-resistant connection they deserve.
