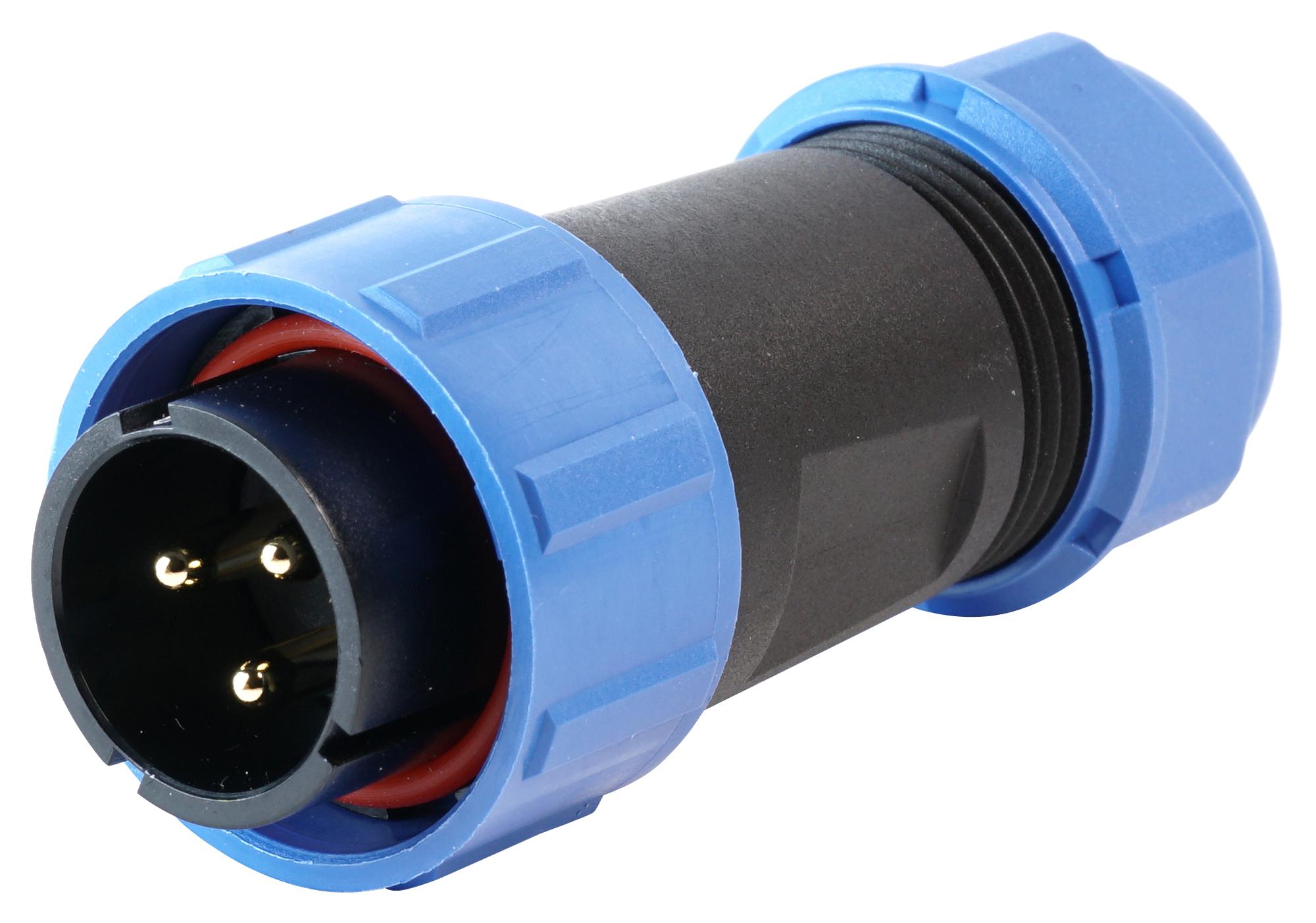

MULTICOMP PRO MP002659 industrial connector
The MP-T21 IP67 series comprises rugged connectors designed for outdoor and industrial environments, featuring bayonet couplings for fast, secure connections. Suitable for cable-to-panel and cable-to-cable setups, these connectors come in panel, inline, and cable mount options with a 21mm cut-out. They support solder and screw terminations, with configurations ranging from 2 to 12 poles, and include weatherproof IP67-rated options plus an cap. Ideal for automation, process control, security, medical, and measurement applications, ensuring durable, reliable electrical connections.
MULTICOMP PRO MP002659 industrial connector Specifications:
- Material: Nylon66 shell, Brass contacts with gold plating, PPS insert, Rubber O-rings
- Fire Resistance: V-0
- IP Rating: IP67
- Coupling: Bayonet
- Temperature Range: -40°C to +80°C
- Contact Number: 2, 3, 4, 5, 7, 9, 12 poles
- Contact Diameter: 1mm to 3mm
- Rated Current: 5A to 30A depending on configuration
- Rated Voltage: up to 500V
- Terminal Types: Solder and screw
- Mating Cycle: 500
- Insert Material: PPS, Max. Temp 260°C
- Cable Outer Diameter Range: Up to 12mm
- WG: Suitable for panel cutouts of 21mm
- Weatherproof: IP67 rated
Buy the Multicomp–Reliable Electrical Connectors for Industrial Applications
Order multicomp IP67 connectors online today—engineered for reliable, weatherproof electrical connections in outdoor and industrial environments. Featuring bayonet coupling for quick, secure connections, these connectors support multiple configurations with solder and screw terminations, ensuring versatility and durability. They are ideal for outdoor automation, security, medical, measurement, and industrial automation applications. With a maximum of 12 poles, IP67 rating, and a range of mount options, these connectors guarantee long-lasting performance and compatibility with various cable sizes, simplifying your installation process.
Get multicomp IP67 connectors today—built for durability, ease of installation, and resistance to harsh environments for industrial automation.
