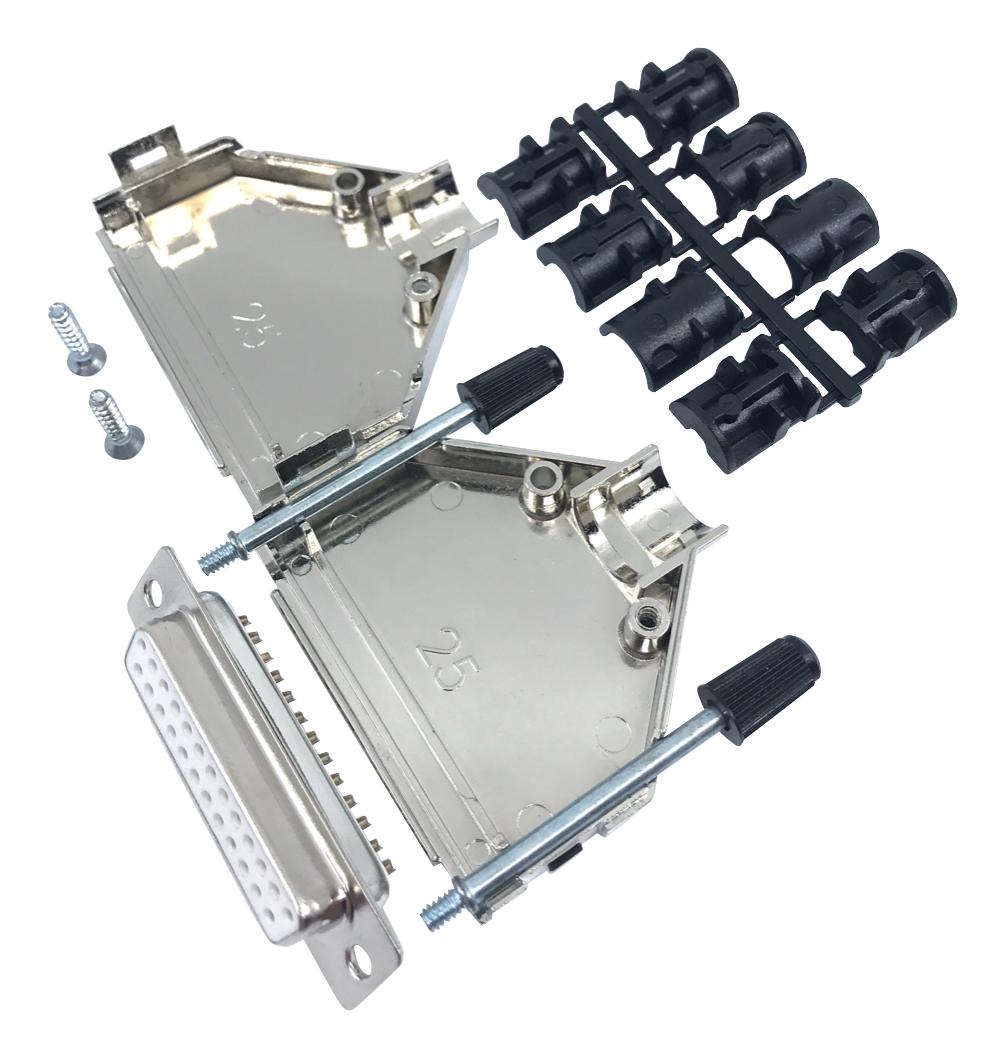

MULTICOMP PRO MP002040 D-Sub Connector
This product is a D-Sub connector with backshell designed for reliable connections in industrial and communication applications. It features a metalized plastic shell, accepts round foil and braided cables, and ensures minimal electromagnetic interference. The connector conforms to standards such as VDE 0871, FCC 20780, and EU directives, with long UNC 4-40 jackscrews for secure fastening. It offers excellent electrical insulation, with a temperature range from -55°C to +105°C, and includes self-tapping assembly screws for easy installation. Suitable for various signal and power transmissions, this connector provides durability and high performance in demanding environments.
MULTICOMP PRO MP002040 D-Sub Connector Specifications:
- Material: ABS, Ni-plated shell; Polycarbonate UL94 VO insulator; Copper alloy contact pins; Steel, tin-plated shell
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, PC UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40, black color, self-tapping assembly screws
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator Resistance: > 1000M
- Withstand Voltage: 2.1kV for 1 minute
- Stamped Contacts: Class 3, minimum 100 inserts
- Dimensions: Part Numbers vary, e.g., MP002016 is 34 mm, MP002018 is 53 mm, MP002019 is 69.5 mm
- Connector Types: DE-9, DA-15, DB-25, DC-37, straight, female/male with backshells
Buy the Multicomp MP002040 – Reliable D-Sub Connector with Backshell for Industrial Applications
Purchase the multicomp MP002040 D-Sub connector with backshell online today to ensure reliable, high-quality connections for your industrial and communication systems. This connector features a durable metalized plastic shell and accepts round foil and braided cables, providing excellent electromagnetic interference protection and long-term reliability. Easy to install with self-tapping screws, it maintains high insulation resistance and withstands extreme temperatures from -55°C to +105°C. Upgrade your equipment with this robust, standards-compliant connector for optimal performance and secure connectivity in demanding environments.
Buy multicomp MP002040 now and experience unmatched durability, EMI shielding, and easy installation for industrial and communication needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002040?
You can click on the BUY or RFQ button to purchase MP002040 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002040?
You can download the MP002040 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002040?
MULTICOMP PRO
