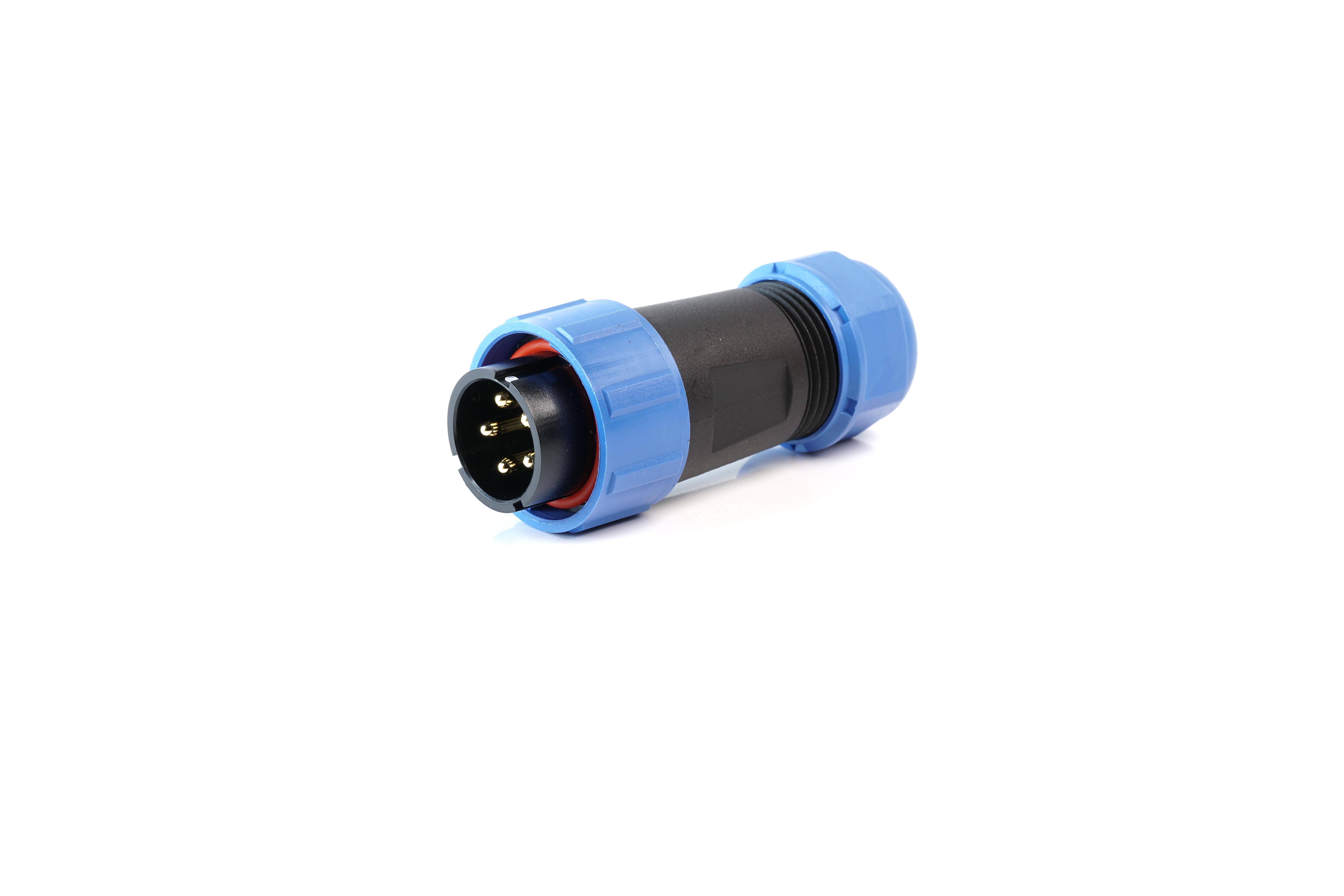

MULTICOMP PRO MP002663 IP67 Circular Connector
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and easy connection and disconnection. These connectors are available in panel mount, cable mount, and in-line cable mount options, enabling versatile connections between cables and panels or between cables themselves. Designed to withstand harsh environments, they offer weather sealing rated at IP67, making them suitable for both indoor and outdoor applications. Key features include a 21mm panel cut-out, solder and screw termination options, and various configurations with 2, 3, 4, 5, 7, 9, and 12 poles. An IP67-cap is also available for added protection. These connectors are ideal for use in automation and process control, medical, security, test and measurement, and industrial automation sectors.
MULTICOMP PRO MP002663 IP67 Circular Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Ingress Protection: IP67
- Coupling: Bayonet
- Termination: Solder and Screw options
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: Up to 30A
- Rated Voltage: Up to 500V
- Test Voltage: 1500V AC for 1 minute
- Contact Resistance: 1mΩ for solder contacts, 2.5-5mΩ for screw contacts
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Cable Outer Diameter Range: up to 12mm
- Panel Cutout: 21mm
- Weather Resistance: IP67
- Compliance: RoHS
- Dimensions: Compatible with cable and panel mounting options
- Additional features: Rubber O-rings, dust caps available
- Application sectors: Industrial automation, medical, security, test and measurement
Buy the Multicomp Series IP67 Circular Connectors: MP002663
Order Multicomp IP67 circular connectors now for reliable, weatherproof connections in industrial, automation, and outdoor environments. Designed with bayonet coupling for quick installation, these connectors support various configurations with 2, 3, 4, 5, 7, 9, and 12 poles, suitable for both panel and cable mounting. Featuring solder and screw termination options, durable nylon66 shells, and gold-plated brass contacts, they ensure long-lasting performance. Plus, the IP67 sealing guarantees protection against dust and water, making them essential for demanding applications.
Get Multicomp IP67 connectors today—engineered for durability in harsh environments and versatile connection options for industrial use.
