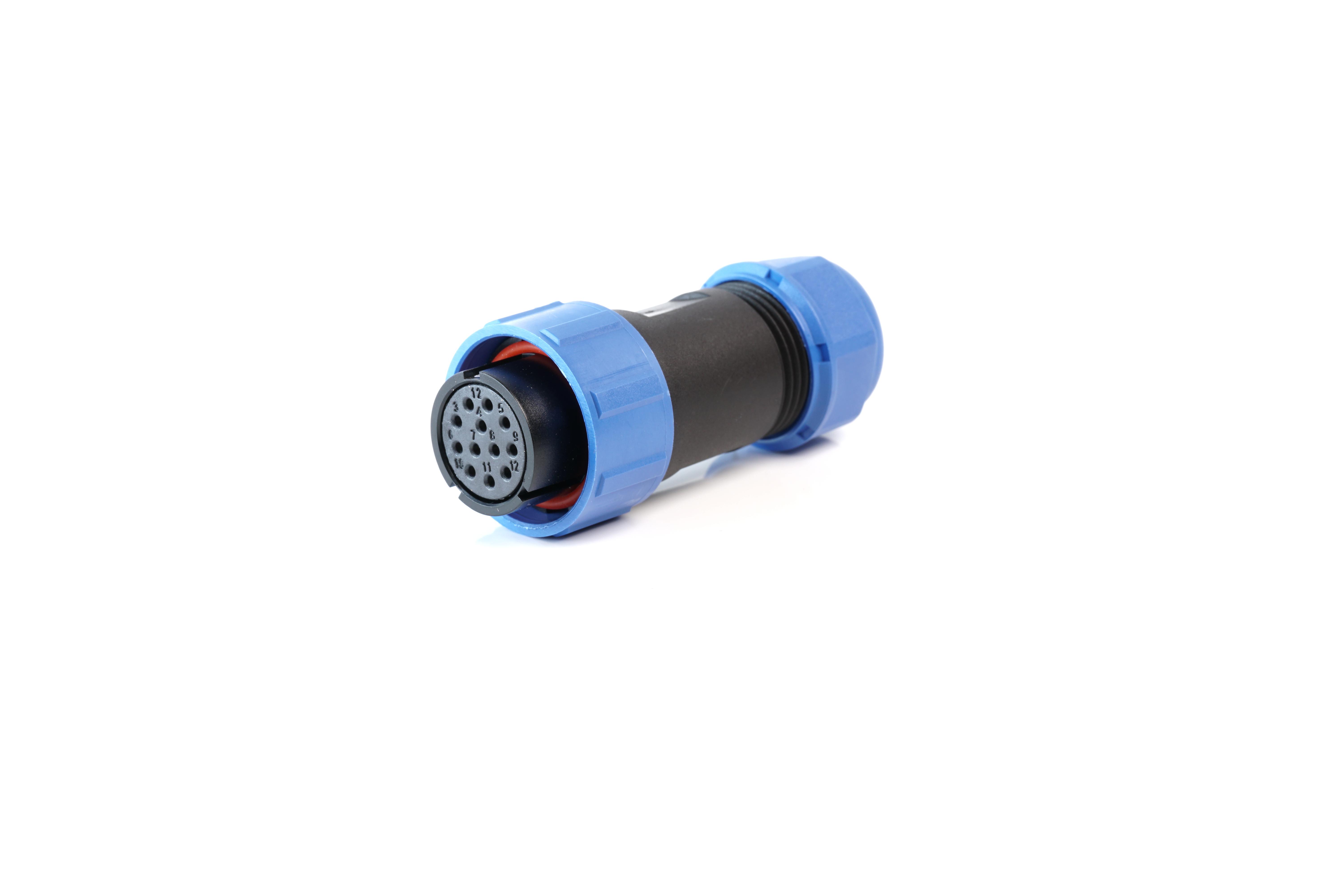

MULTICOMP PRO MP002678 Sealed Power Connectors
The MP-T21 IP67 series is a highly durable range of connectors designed for reliable indoor and outdoor use, featuring weather-sealed IP67 protection. These connectors include panel, cable, and inline cable mount types, with quick bayonet coupling for easy connection and disconnection. They support various pole configurations, from 2 to 12 poles, and are available with solder or screw terminations suitable for wire sizes up to 1.5 mm². Crafted from nylon66 with fire resistance rating V-0, with brass contacts gold-plated for superior conductivity and corrosion resistance, ideal for demanding industrial automation and control applications.
MULTICOMP PRO MP002678 Sealed Power Connectors Specifications:
- Material: Nylon66 with V-0 fire resistance
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Temperature Range: -40°C to +80°C
- Contact Number: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5A to 30A depending on contact size
- Rated Voltage: 400V to 500V AC depending on configuration
- Test Voltage: 1200V to 1500V AC
- Termination: Solder or Screw
- Wire Size for Solder: 0.75/18 mm²
- Wire Size for Screw: 1.5/15 mm²
- Mating Cycle: 500
- Environmental Resistance: Weather-sealed IP67
Buy the multicomp Series MP002678 IP67 Waterproof Connector: MP002678
Order the multicomp MP002678 waterproof power connectors online today for industrial, outdoor, and automation needs. These sealed connectors feature bayonet coupling for quick and secure connection, supporting configurations from 2 to 12 poles with solder or screw terminations. Made of durable nylon66 with V-0 fire resistance and brass contacts with gold plating, they provide excellent corrosion resistance and high conductivity. Certified to IP67, they withstand harsh weather conditions and are perfect for process control, automation, medical, or security sectors. Ensure reliable connections in any demanding environment.
Buy multicomp MP002678 waterproof connectors now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002678?
You can click on the BUY or RFQ button to purchase MP002678 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002678?
You can download the MP002678 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002678?
MULTICOMP PRO
