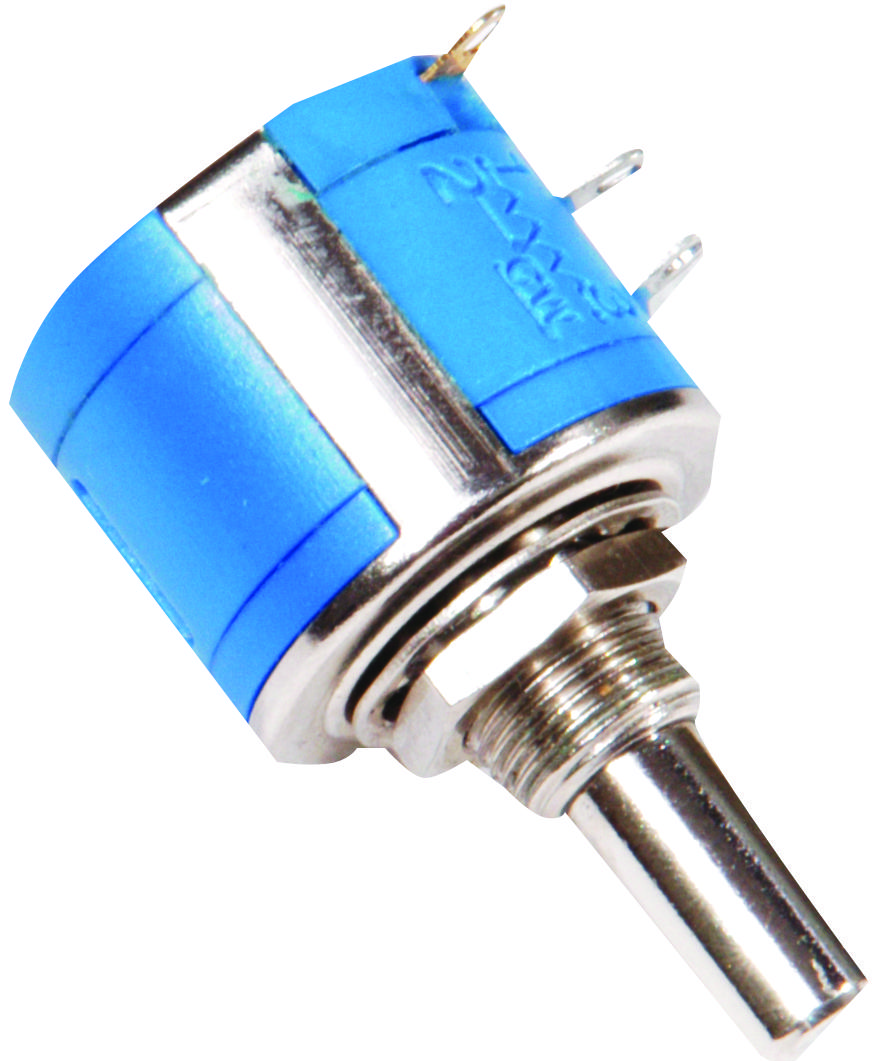

MULTICOMP PRO MCWWPT10503LF Industrial Wirewound Potentiometer
The MCWWPT10503LF from Multicomp Pro is a precision wirewound potentiometer designed for industrial applications. It features a 360° rotation, metal shaft with bushing (6mm diameter), and a resistance range from 100Ω to 100kΩ. Key specifications include a 2W power rating at 70°C, resistance tolerance of ±5%, and an electrical angle of 360°. The device offers excellent environmental stability with a temperature range of -55°C to +125°C, low noise, high insulation resistance, and robust mechanical durability. It is suitable for precise control in industrial and automation systems.
MULTICOMP PRO MCWWPT10503LF Industrial Wirewound Potentiometer Specifications:
- Resistance Range: 100Ω to 100kΩ
- Power Rating: 2 Watt at 70°C, 0 Watt at 125°C
- Resistance Tolerance: ±5%
- Number of Turns: 210
- Electrical Angle: 360°
- Resistance Shift: Max 5%
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: ±100ppm/°C
- Insulation Resistance: 1000MQ min at 500V DC
- Dielectric Withstanding Voltage: 900V AC at 101.3kpa
- Mechanical Rotation: 360° min.
- Stop Strength: 300mN-m max.
- Torque: 36mN-m max.
- Vibration: 98m/s²
- Shock: 490m/s²
- Rotational Life: 1,000,000 shaft revolutions
Buy the Multicomp Series Industrial Wirewound Potentiometer: MCWWPT10503LF
Shop now for the Multicomp Pro MCWWPT10503LF industrial wirewound potentiometer, ideal for precise rotational control in industrial equipment. Featuring a robust metal shaft with bushing, this 360° mult-turn potentiometer handles resistance from 100Ω to 100kΩ with a tolerance of ±5%. Its high environmental stability, temperature range of -55°C to +125°C, low noise, and resistance shift up to 5% ensure reliable performance in demanding industrial settings. Perfect for automation systems, instrumentation, and control panels requiring durability and accuracy.
Get Multicomp Pro MCWWPT10503LF today—built for precise control and long-lasting durability in industrial automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWWPT10503LF?
You can click on the BUY or RFQ button to purchase MCWWPT10503LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWWPT10503LF?
You can download the MCWWPT10503LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWWPT10503LF?
MULTICOMP PRO
