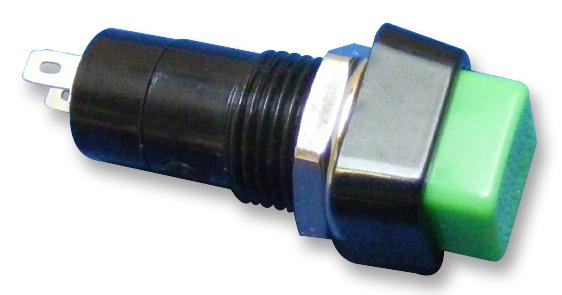

MULTICOMP PRO R1323A05BG Pushbutton Switch
The Multicomp Pro R13-23 series pushbutton switches are mechanically operated with two-pin momentary action, rated for 3A at 125V and 1.5A at 250V AC. They feature a green ABS actuator and a black ABS frame, designed for industrial, power management, automation, and process control applications. Their specifications include a maximum contact resistance of 50 mΩ, insulation resistance of 100 MΩ at 500V DC, and dielectric strength of 1000VAC. The switches are durable and reliable, supporting high electrical performance in demanding environments.
MULTICOMP PRO R1323A05BG Pushbutton Switch Specifications:
- Maximum Contact Resistance: 50 mΩ
- Minimum insulation Resistance: 100 MΩ at 500V DC
- Dielectric Strength: 1000VAC
- Current Rating: 3A at 125V, 1.5A at 250V AC
- Switch Function: 2P SPST, Momentary (MOM)
- Actuator Material: ABS, Green
- Frame Material: ABS, Black
- Rated Voltage: 125V, 250V AC
- Rated Current: 3A, 1.5A
- Pole: 2 P
- Type: Single-pole, single-throw
- Color Options: Red, Black, White, Green
Buy the Buy multicomp Pushbutton Switch Part Number R1323A05BG Online
Purchase the multicomp R1323A05BG pushbutton switch online today for dependable two-pin momentary operation rated at 3A and 125V. Ideal for industrial, automation, and power management applications, it features a durable ABS green actuator and black frame. The switch provides excellent electrical performance with a contact resistance of 50 mΩ, insulation resistance of 100 MΩ, and dielectric strength of 1000VAC. Designed for robustness in demanding environments, ensuring seamless operation and long-lasting service life.
Get multicomp R1323A05BG today—built for industrial automation and reliable electrical switching.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R1323A05BG?
You can click on the BUY or RFQ button to purchase R1323A05BG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R1323A05BG?
You can download the R1323A05BG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R1323A05BG?
MULTICOMP PRO
