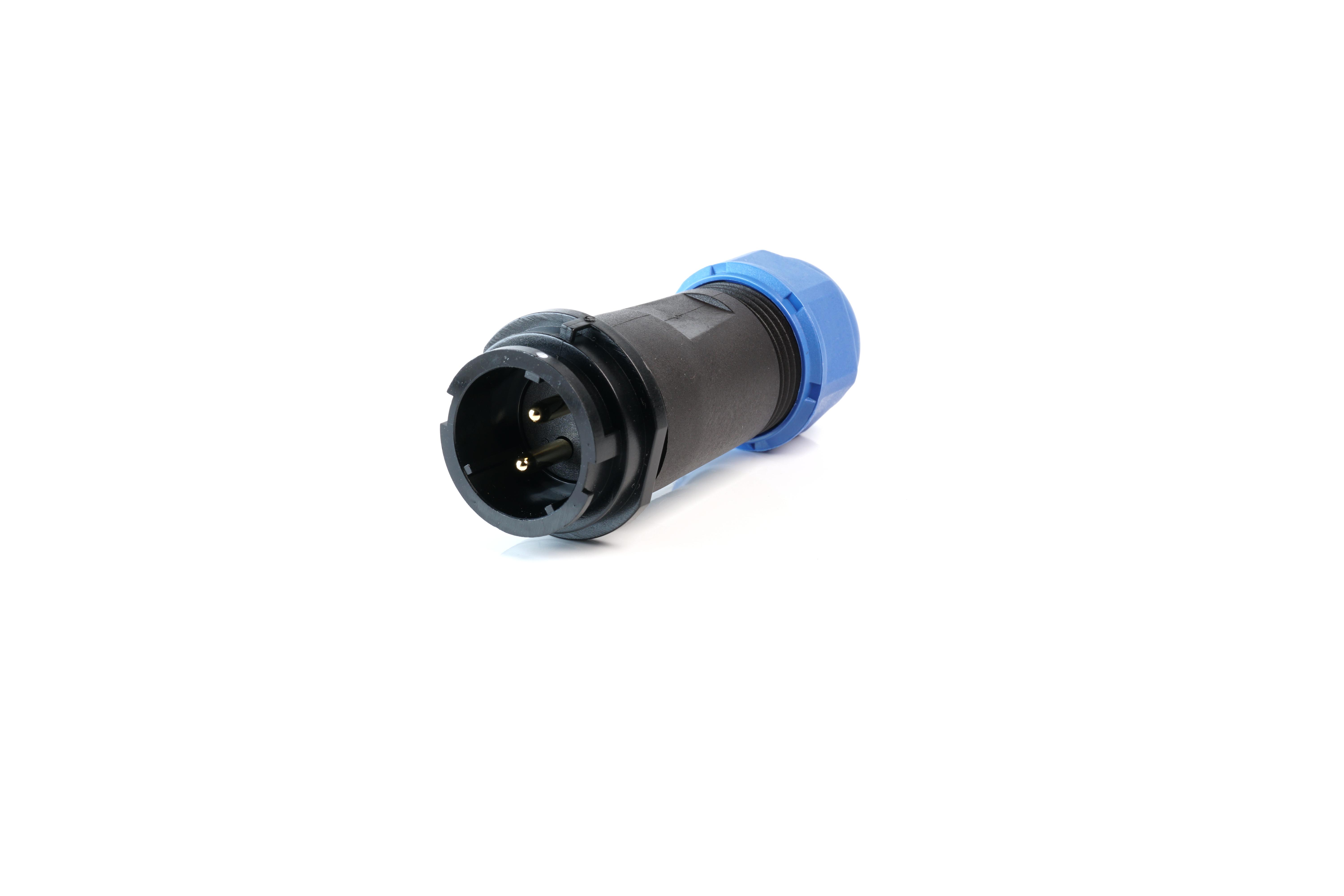

MULTICOMP PRO MP002682 Industrial Connectors
The MP-T21 IP67 series connectors offer a robust solution for industrial and outdoor applications, featuring bayonet coupling for quick installation. Available in panel, cable, and inline mount options, these connectors ensure IP67 weather resistance and durability. They support solder and screw terminations, accommodating multiple configurations including 2, 3, 4, 5, 7, 9, and 12 poles. Designed for seamless cable-to-panel or cable-to-cable connections, they excel in automation, security, medical, and testing environments. An optional dust cap enhances sealing, guaranteeing reliable performance in demanding conditions.
MULTICOMP PRO MP002682 Industrial Connectors Specifications:
- Material: Nylon66 shell, brass contacts with gold plating
- Insert Material: PPS, Max. Temperature 260°C
- Coupling Type: Bayonet
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ
- Rated Current (A): 30 for 2-4 pole, 15-5 pole, 5-12 pole
- Rated Voltage (VAC): 400-500 depending on configuration
- Test Voltage (VAC): 1200-1500
- Contact Diameter: 1-3 mm depending on pole count
- Termination: Solder and Screw options
- Maximum Cable Diameter: 12mm
- Suitable for cable sizes: 0.75/18 AWG for solder, 1.5/15 AWG for screw
- RoHS Compliant
Buy the Multicomp Series MP002682 IP67 Connectors: Robust Industrial Connections
Order multicomp IP67 connectors online today and benefit from quick, reliable connections suitable for outdoor and industrial use. These connectors are designed for durability, featuring bayonet coupling for easy installation, and are available in multiple configurations including 2, 3, 4, 5, 7, 9, and 12 poles. With options for solder and screw termination, they support cable diameters up to 12mm. Whether for automation, security systems, or medical equipment, buying online ensures fast delivery, competitive pricing, and trusted quality for your projects.
Buy multicomp IP67 connectors now and experience unmatched reliability and performance in rugged industrial environments.
