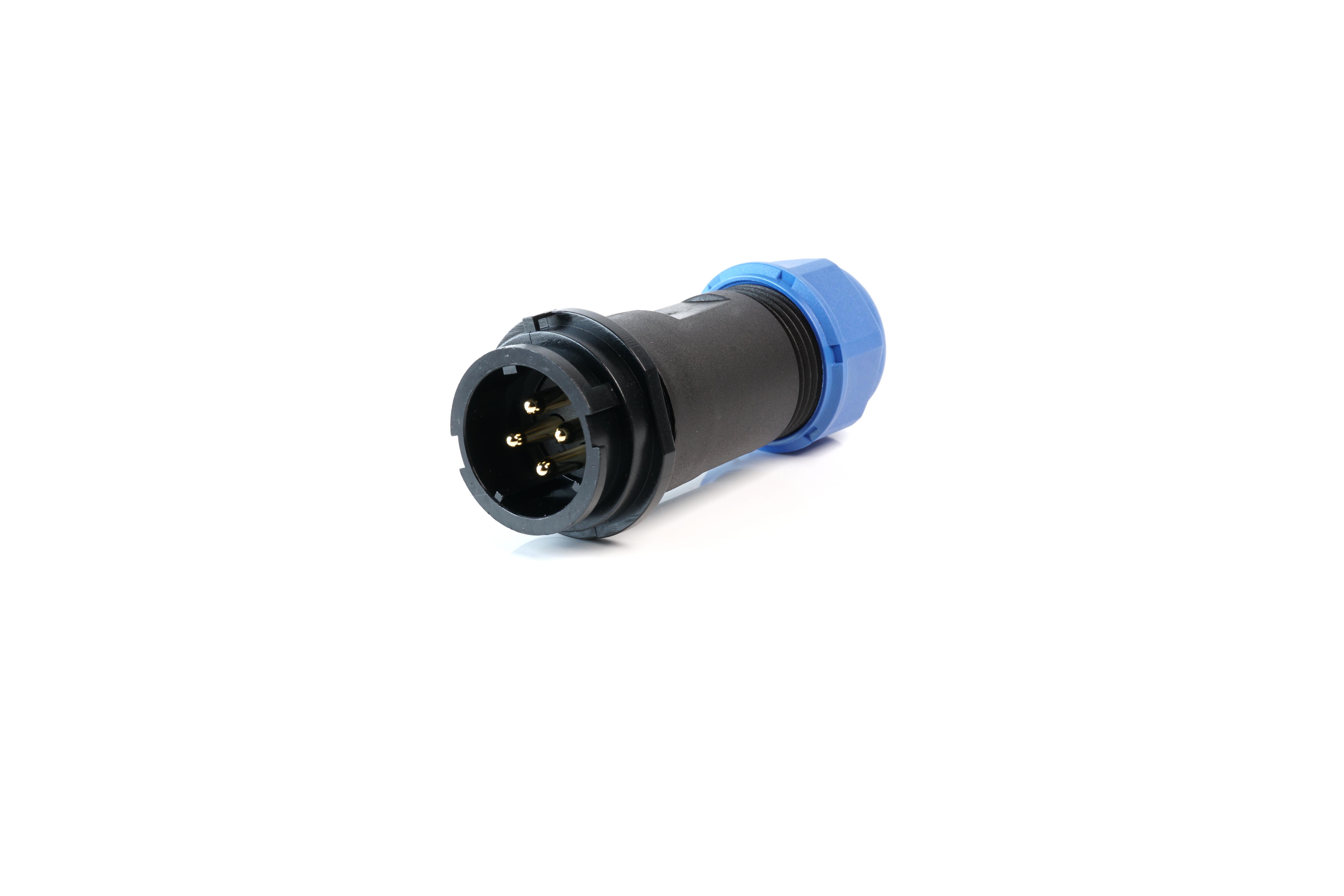

MULTICOMP PRO MP002684 Weatherproof Connector
The MP-T21 IP67 series connectors are robust, weatherproof, and feature bayonet coupling for quick, secure connections suitable for outdoor and indoor applications. They come in panel, cable mount, and in-line configurations, accommodating 2 to 12 poles with solder and screw termination options. Designed with a durable nylon66 shell, gold-plated brass contacts, and PPS insert material rated up to 260°C, these connectors are highly resistant to environmental factors. They are rated IP67 for dust and water resistance, support a maximum voltage of 500V, and feature a locking nut for secure assembly, making them ideal for industrial automation, process control, and security systems.
MULTICOMP PRO MP002684 Weatherproof Connector Specifications:
- Shell Material: Nylon66 with fire resistance V-0
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Temperature Range: -40°C to +80°C
- Rated Voltage: 500 V AC
- Rated Current: 30 A (solder and screw terminals)
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Contact Diameter: 1-3 mm depending on configuration
- Test Voltage: 1500 V AC 1 min
- Connection Types: Solder and screw termination
- Mating Cycle: 500
- Cable Outer Diameter Range: up to 12mm
- Waterproof Cap Included, rated IP67
- Suitable for outdoor, industrial, automation, and security applications
Buy the Multicomp Series T21 IP67 Connector: MP002684
Order the Multicomp T21 IP67 connector now and enjoy secure, weatherproof connections for your industrial and outdoor applications. Featuring bayonet coupling for quick installation, these connectors support multiple configurations from 2 to 12 poles with solder and screw terminations. Crafted with durable nylon66 shells and gold-plated brass contacts, they ensure long-lasting performance and environmental resistance. Ideal for automation, process control, security, and outdoor equipment, these connectors come with an IP67-rated cap for added protection, providing reliable, rugged connectivity in demanding settings.
Get Multicomp T21 IP67 connector today—built for durability in outdoor and industrial environments.
