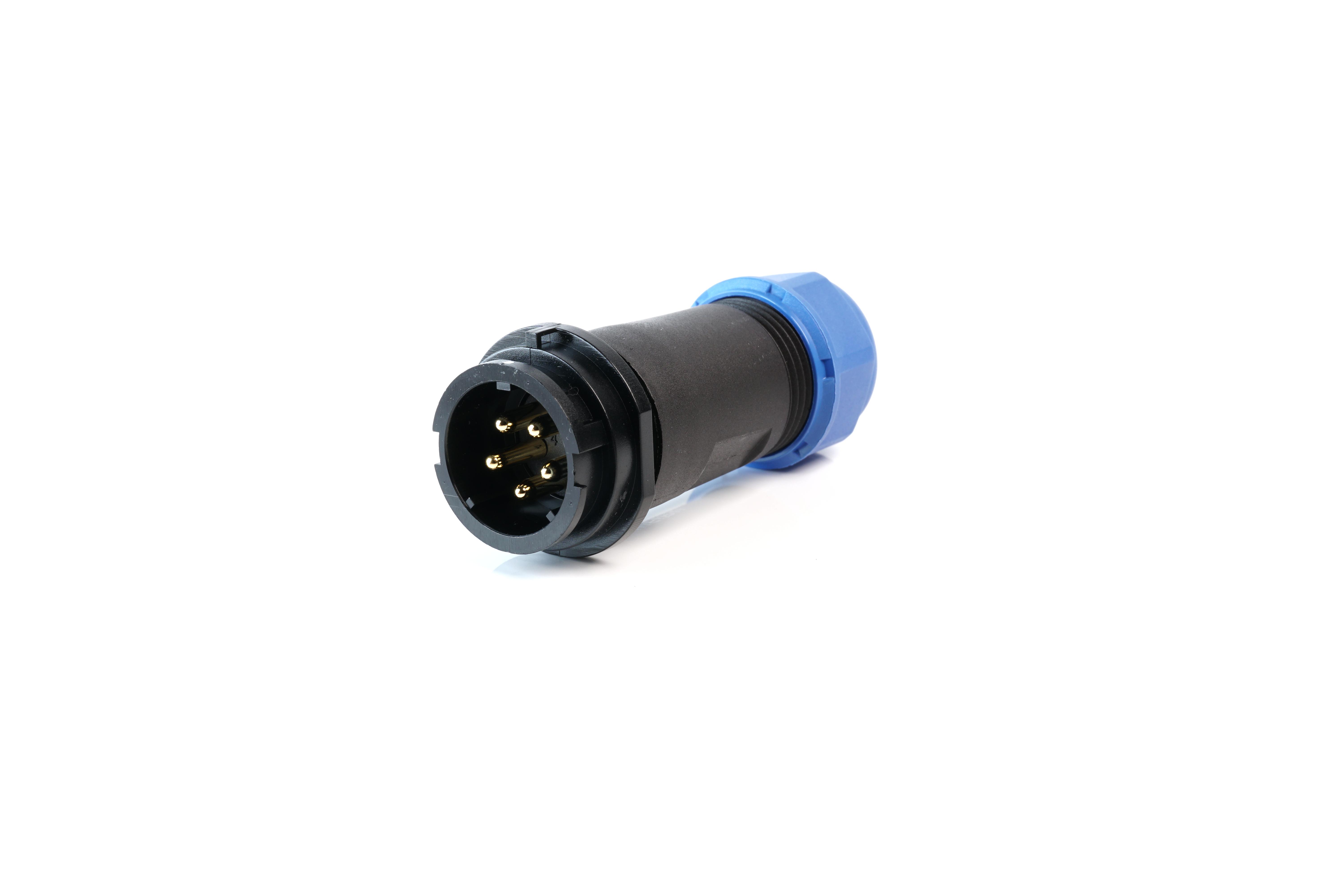

MULTICOMP PRO MP002686 IP67 Connectors
The MP-T21 IP67 series is a highly durable range of connectors designed for robust outdoor and indoor applications, including automation, security systems, and industrial automation. Featuring bayonet couplings for quick, secure connections, these connectors come in panel, cable, and inline configurations, supporting cable-to-panel or cable-to-cable setups. They are weather-sealed to IP67 standards, resistant to dust and water ingress, and support various pole counts from 2 to 12 with solder and screw terminations. An IP67-rated dust cap is available for enhanced protection, ensuring reliable performance in harsh environments.
MULTICOMP PRO MP002686 IP67 Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
- Contact Number: 2, 3, 4, 5, 7, 9, 12 poles
- Rated Current: 30A for 2-4 poles, 15A for 5-7 poles, 5A for 9-12 poles
- Rated Voltage: 400-500V AC depending on configuration
- Test Voltage: 1200-1500 V AC for 1 min
- Contact Resistance: 1-5 mΩ
- Termination: Solder or screw connection
- Cable Outer Diameter: Up to 12mm
- Connector Types: Panel mount, cable mount, inline
- Dust Cap: Part MP002730
Buy the Multicomp Series MP002686 IP67 Connectors: MP002686
Enhance your projects with the reliable and weather-sealed IP67 connectors from the Multicomp Series MP002686. Ideal for outdoor and harsh environments, these connectors support multiple configurations and pole counts, offering high durability and quick bayonet coupling for easy connection and disconnection. Designed with high-quality materials, they resist dust, water ingress, and temperature variations, ensuring stable performance in automation, medical, security, and industrial applications. Order online today for fast delivery and proven dependability.
Order your Multicomp Series MP002686 IP67 connectors now for quick, durable, and weather-resistant connections perfect for industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002686?
You can click on the BUY or RFQ button to purchase MP002686 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002686?
You can download the MP002686 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002686?
MULTICOMP PRO
