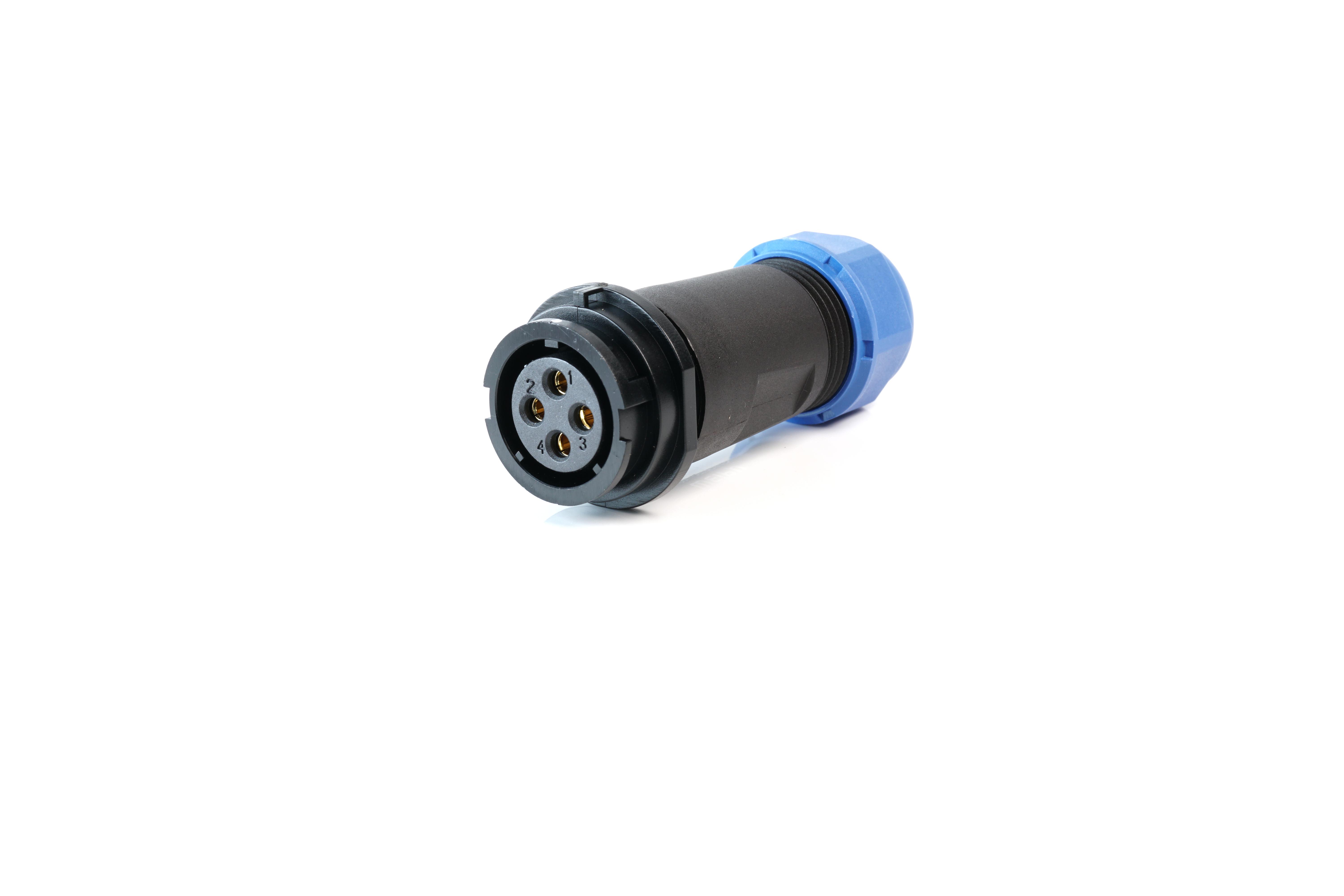

MULTICOMP PRO MP002695 Industrial Connector
The MP-T21 IP67 series connectors are robust, weatherproof connectors with bayonet coupling, suited for indoor and outdoor use. Available in panel, cable, and inline mount types, they support multiple pole configurations from 2 to 12 poles, with both solder and screw terminations. Constructed with nylon66 shells, PPS inserts, and brass contacts with gold plating, they withstand temperatures from -40°C to +80°C and are rated IP67 for water and dust resistance. Ideal for automation, industrial control, medical devices, and security systems, these connectors ensure reliable and quick connections in demanding environments.
MULTICOMP PRO MP002695 Industrial Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Temperature Range: -40°C to +80°C
- Coupling Type: Bayonet
- Termination Options: Solder, Screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: Up to 30A depending on configuration
- Rated Voltage: Up to 500V
- Test Voltage: 1500V for 1 min
- Contact Resistance: 1mΩ to 5mΩ depending on contact
- Mating Cycle: 500
- Cable Outer Diameter Range: up to 12mm
- Operating Temperature: -40°C to +80°C
- Compliance: RoHS
- Suitable for panel, cable, and inline mounting environments
Buy the Buy Multicomp Series MP002695 Part Number MP002695 Online
Purchase the multicomp MP002695 IP67 industrial connector online today and enjoy quick, secure, and weatherproof connections suitable for automation, control, and industrial applications. Its robust design with nylon66 shells, brass contacts with gold plating, and support for various mounting configurations ensures high performance in demanding environments. Whether for sensor, actuator, or power connections, this connector offers exceptional durability, resistance to dust and water, and quick bayonet coupling for efficient installation. Order now to ensure reliable and lasting connectivity for your critical projects.
Order your multicomp MP002695 IP67 connectors today and ensure reliable, weather-resistant connections for your industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002695?
You can click on the BUY or RFQ button to purchase MP002695 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002695?
You can download the MP002695 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002695?
MULTICOMP PRO
