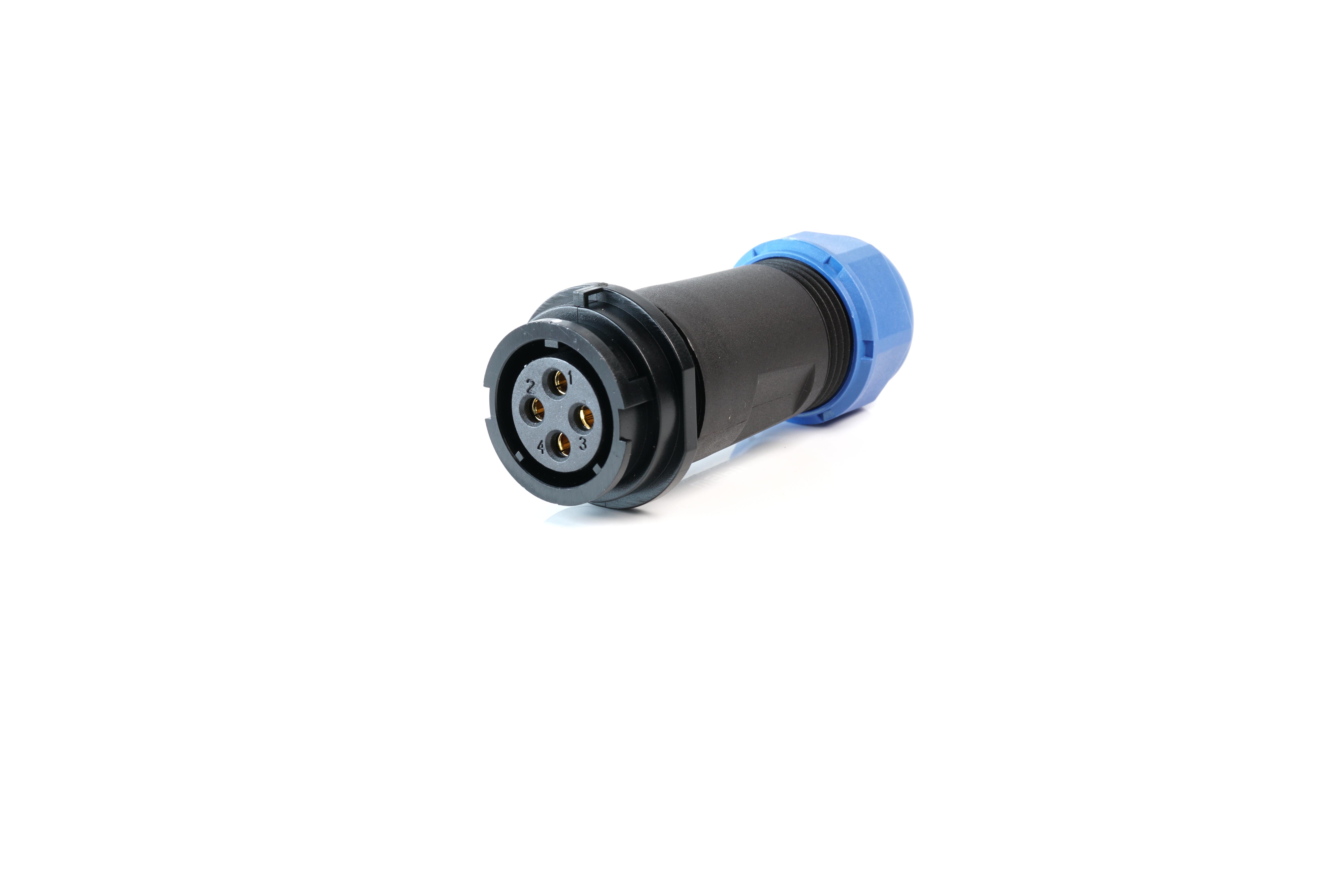

MULTICOMP PRO MP002697 industrial connectors
The MP-T21 IP67 series offers robust connectors with bayonet coupling for quick, secure connections in outdoor and industrial applications. Available in panel, cable, and inline configurations, they support cable-to-panel or cable-to-cable setups. Rated IP67 for weather resistance, these connectors are suitable for harsh environments, featuring gold-plated brass contacts, nylon66 shells, and high-temperature PPS inserts up to 260°C. Terminations include solder and screw options with various pole counts—2, 3, 4, 5, 7, 9, 12. Designed for reliable automation, security, medical, and test systems, the series ensures durability and versatile connectivity.
MULTICOMP PRO MP002697 industrial connectors Specifications:
- Material: Nylon66 shell, brass contacts with gold plating, PPS insert up to 260°C
- IP Rating: IP67
- Coupling: Bayonet
- Terminations: Solder and screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5–30 A depending on contact size
- Rated Voltage: 400–500 V AC
- Test Voltage: 1200–1500 V AC for 1 min
- Contact Resistance: 1–5 mΩ
- Operating Temperature: -40°C to +80°C
- Mating Cycle: 500
- Cable Outer Diameter Range: up to 12mm
- Certification: RoHS compliant
- Dimensions: Supports 21mm panel cut-out
- In-line, panel, cable mount configurations
- Sealing: Rubber or O-ring gaskets
Buy the Multicomp Series T21 IP67 Connectors Reliable Industrial Connectivity: MP002697
Order multicomp IP67 connectors today and enjoy reliable, weatherproof connections for industrial automation, security systems, and outdoor applications. Featuring quick bayonet coupling, versatile configurations, and high-quality materials, these connectors provide secure, waterproof connections even in harsh environments. They support various pole counts, solder and screw terminations, and are rated for temperature extremes up to 80°C, ensuring durability and consistent performance. Purchase online now and enhance your operational efficiency with trusted connectivity solutions designed for industrial use.
Buy multicomp IP67 connectors now and experience unmatched durability and secure outdoor connections for industrial automation and more.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002697?
You can click on the BUY or RFQ button to purchase MP002697 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002697?
You can download the MP002697 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002697?
MULTICOMP PRO
