MULTICOMP PRO MP002700 IP67 Connector
The MP-T21 IP67 series connectors are rugged, weatherproof solutions designed for reliable cable-to-panel and cable-to-cable connections in harsh environments. Featuring bayonet coupling for quick, secure mating, these connectors are suitable for outdoor and indoor applications in automation, security, medical, and industrial fields. Available in panel mount, cable mount, and in-line configurations with solder and screw terminations, they support multiple pole counts from 2 to 12. They include a protective IP67-rated dust cap, ensuring durability and long-term performance against dust and water ingress.
MULTICOMP PRO MP002700 IP67 Connector Specifications:
- Material: Nylon66 shell, PPS insert, Brass contact with gold plating
- Rating: IP67 waterproof and dustproof
- Coupling: Bayonet type for secure connection
- Termination: Solder or screw options
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1 to 3 mm depending on number of contacts
- Rated Current: Up to 30A
- Rated Voltage: Up to 500V
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Panel Cutout: 21 mm diameter
- Mating Cycle: 500
- Weather-resistant: Yes, suitable for outdoor use
- Cap: IP67-rated dust and water protection cap

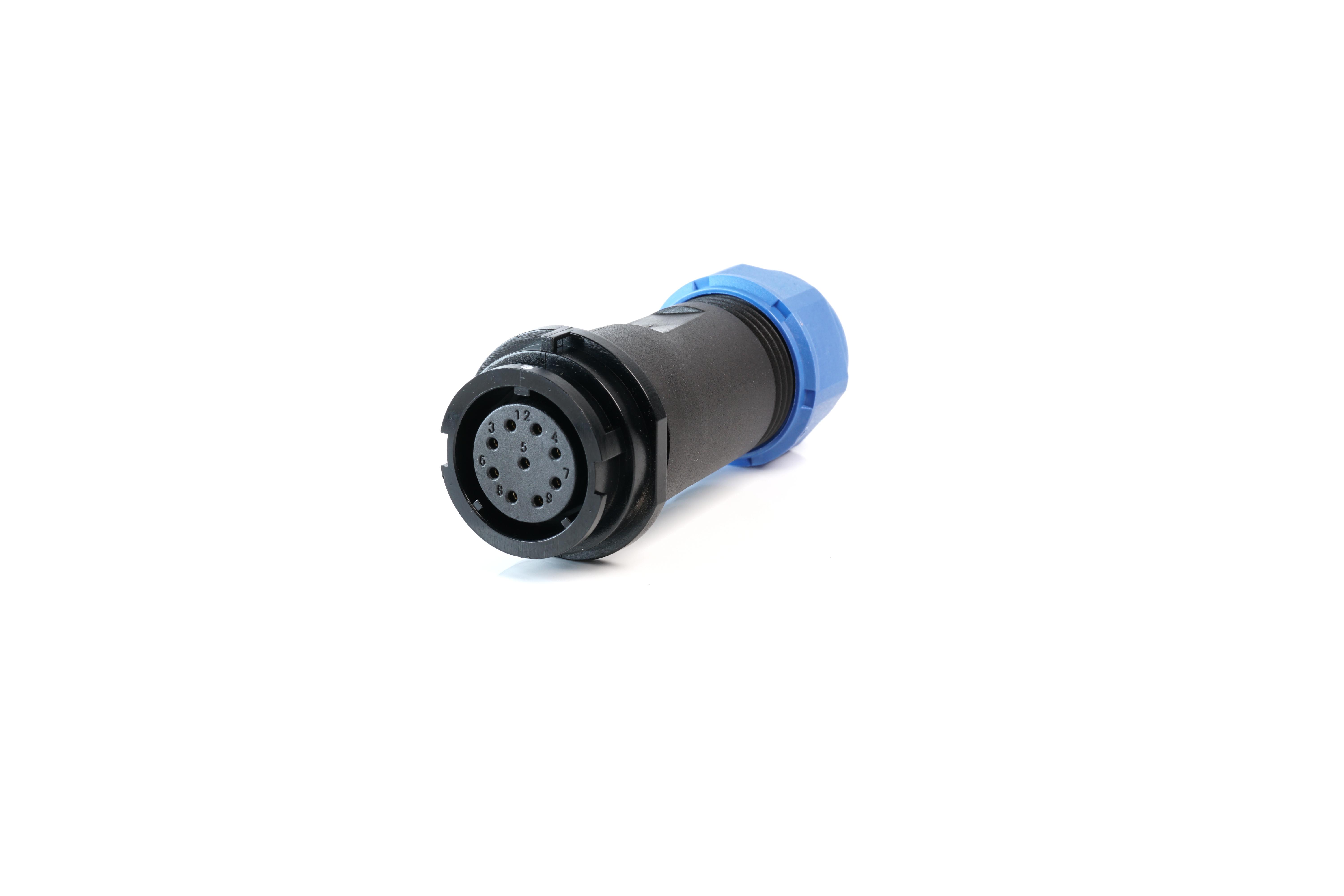

Buy the Buy multicomp IP67 Connector Part Number MP002700 Online
Experience the durability and reliability of our IP67-rated connector series, designed for quick, secure connections in harsh environments. This series supports various configurations with solder and screw termination options, supporting multiple contact poles from 2 to 12. Made from high-quality nylon and brass with gold plating, these connectors are suited for outdoor, industrial, medical, and security applications. The protective dust cap and bayonet coupling feature ensure long-lasting performance and easy assembly, making them ideal for demanding environments requiring waterproof and dustproof connectors.
Buy multicomp IP67 connectors MP002700 now and ensure reliable, weatherproof connections for industrial automation, outdoor applications, and testing needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002700?
You can click on the BUY or RFQ button to purchase MP002700 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002700?
You can download the MP002700 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002700?
MULTICOMP PRO
