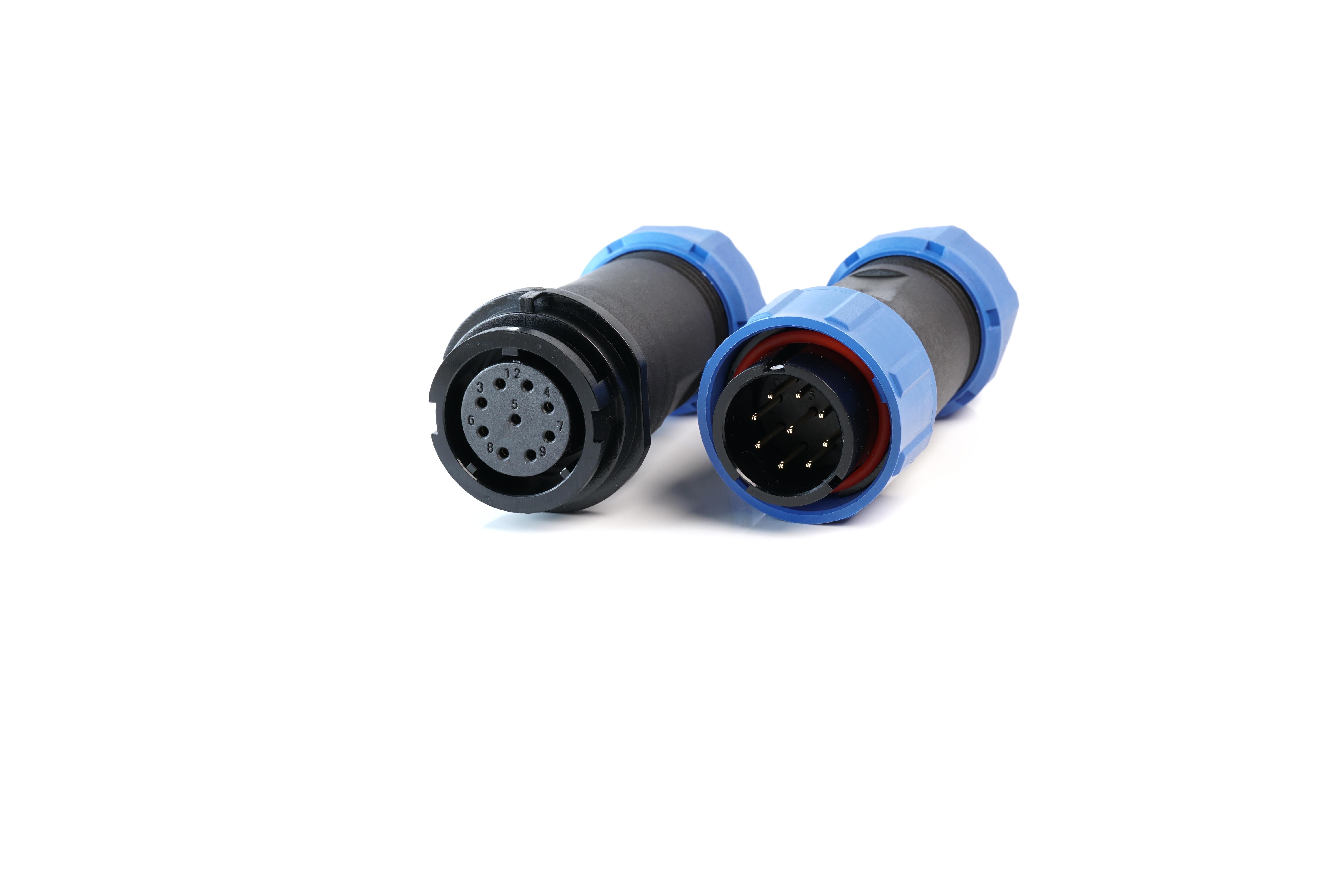

MULTICOMP-PRO MP002706 IP67 Connectors
The MP-T21 IP67 series offers robust and versatile connectors designed with bayonet coupling for quick, secure connections in outdoor or harsh environments. Available in panel, cable, and inline configurations, these connectors support various pole options from 2 to 12, suitable for automation, industrial control, medical devices, and security systems. Rated IP67 for weather resistance, they feature solder or screw terminations, a 21mm cut-out size, and include an IP67 cap for added protection. Constructed with durable nylon66 shells, brass contacts with gold plating, and PPS inserts, these connectors ensure reliable, corrosion-resistant performance in demanding applications.
MULTICOMP-PRO MP002706 IP67 Connectors Specifications:
- Material: Nylon66 shell, brass contacts with gold plating, PPS insert
- IP Rating: IP67 for weather resistance
- Coupling: Bayonet
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder or screw
- Pole Options: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5A to 30A depending on contact
- Rated Voltage: 400V to 500V AC
- Test Voltage: 1200V to 1500V AC, 1 min.
- Contact Resistance: 1 to 5 mΩ
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Cable Compatibility: Outer diameter up to 12mm
- Includes an IP67 cap for dust and water protection
- Suitable for automation, industrial, medical, security, test, environment resilience
Buy the Multicomp Series IP67 Connectors: MP002706
Purchase the IP67-rated connectors from Multicomp online today and enjoy durable, weatherproof solutions for automation, control systems, and outdoor applications. These versatile connectors feature bayonet coupling for quick, secure connection and disconnection, with options for solder or screw termination. Available in various pole configurations from 2 to 12, they are constructed with high-quality nylon66 shells, brass contacts with gold plating, and PPS inserts rated for high temperatures. Protect your devices and ensure reliable connections in harsh environments by buying online now.
Order your Multicomp Series IP67 connectors MP002706 today and ensure reliable, weatherproof connections for industrial and outdoor projects.
