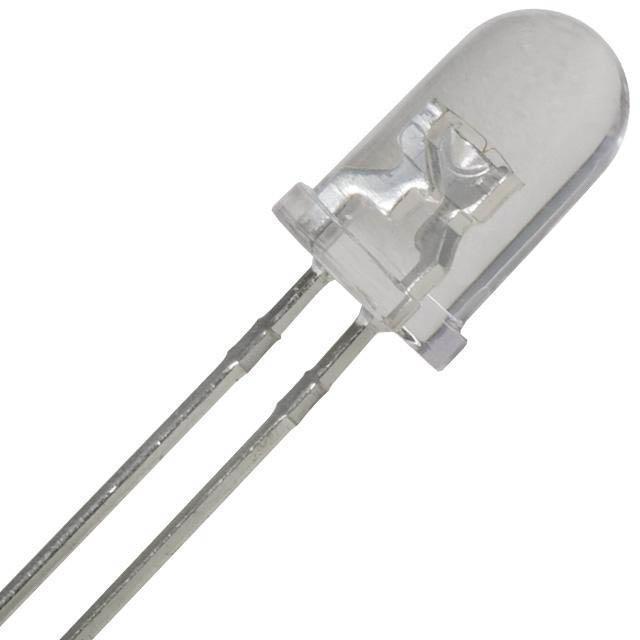

MULTICOMP PRO MC20394 Bi-color LED
The 3mm Round Lens Bi-color LED combines high-intensity red and yellow emissions in a standard T-1 3/4 package, making it ideal for general-purpose applications. It features a rugged, reliable design with RoHS compliance. The LED's electrical characteristics include a maximum power dissipation of 100 mW, continuous forward current of 30 mA, and a peak forward current of 100 mA at a 1/10 duty cycle. It operates within -25°C to +80°C and has a viewing angle of 30°. The device is suitable for various indicators and display lighting, offering consistent brightness and spectral performance.
MULTICOMP PRO MC20394 Bi-color LED Specifications:
- Lens Diameter: 3mm
- Package: Standard T-1 3/4 diameter
- Lead Spacing: Measured from where leads emerge
- Source Colors: Red (GaAsP), Yellow
- Spectral Line Half-Width: 20-25 nm
- Dominant Wavelength: Red 640-648 nm, Yellow 585-590 nm
- Luminous Intensity: 30 Iv at 20mA (typical)
- Viewing Angle: 30°
- Forward Voltage: Red 1.8-2.4 V, Yellow 1.9-2.5 V
- Reverse Voltage: 5 V
- Power Dissipation: 100 mW
- Continuous Forward Current: 30 mA
- Peak Forward Current: 100 mA (1/10 Duty Cycle, 0.1ms Pulse)
- Operating Temperature Range: -25°C to +80°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Multicomp Series 3mm Round Lens Bi-color LED: MC20394
Order the Bi-color 3mm LED online today and enjoy quick delivery, genuine quality, and consistent performance. Perfect for indicators, displays, and general lighting applications, this rugged LED offers bright red and yellow emissions in a compact round lens package. Built with RoHS compliance and high reliability, it provides excellent brightness and spectral performance for professional and hobby projects alike. Enhance your electronic device with this versatile, durable LED—the ideal choice for clear, multi-color indicators and lighting solutions.
Buy Multicomp Series 3mm Round Lens Bi-color LED MC20394 now and experience reliable, vibrant red and yellow illumination for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC20394?
You can click on the BUY or RFQ button to purchase MC20394 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC20394?
You can download the MC20394 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC20394?
MULTICOMP PRO
