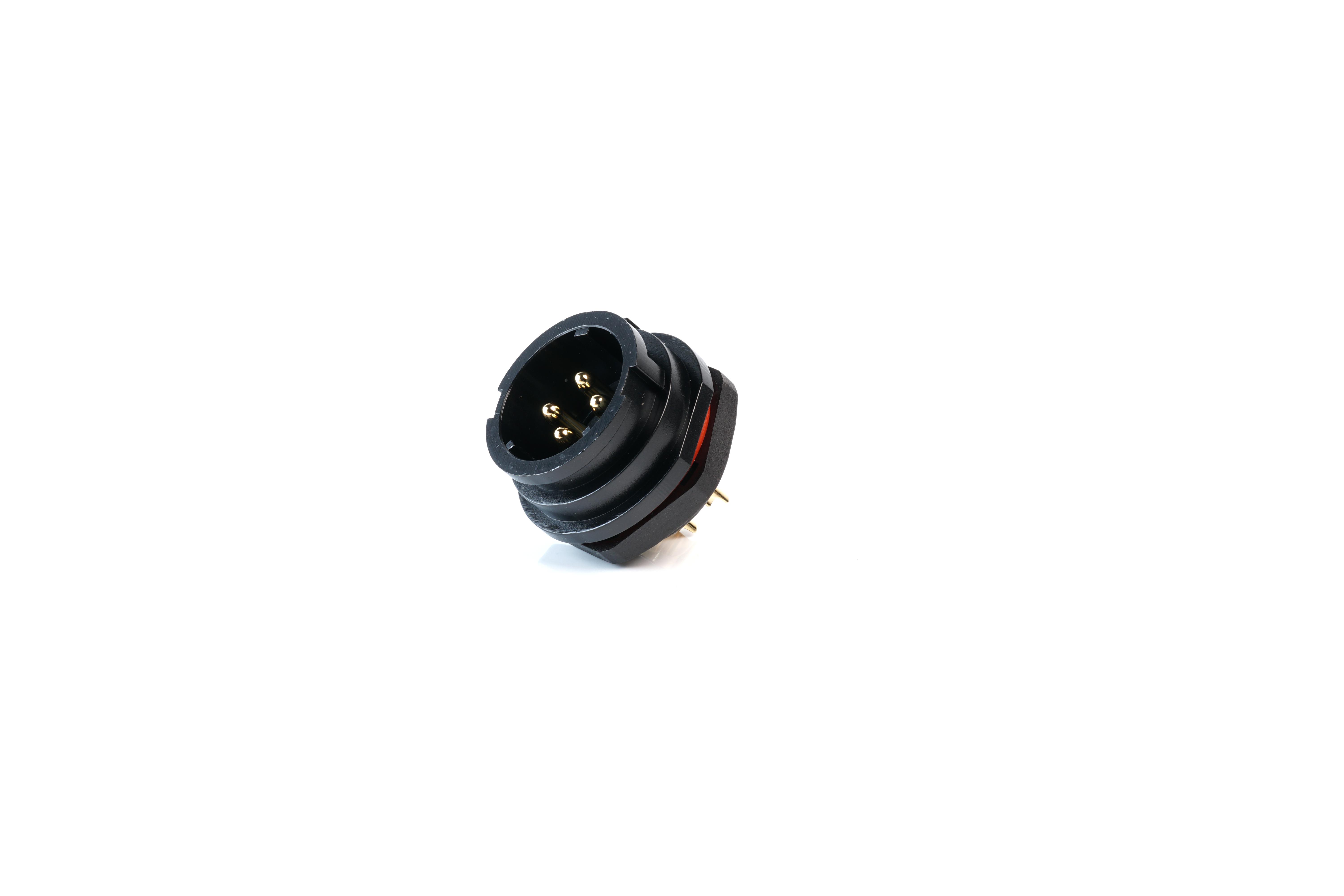

MULTICOMP PRO MP002713 Circular Connector
The MP-T21 IP67 series offers rugged, weatherproof circular connectors with bayonet coupling for quick and secure connections in harsh environments. Featuring panel, cable, and inline mount options, these connectors support 21mm mounting holes for versatile installation. Constructed from nylon66 shells with V-0 fire resistance and gold-plated brass contacts, they ensure high durability and corrosion resistance. They support solder and screw terminations, accommodate multiple contact configurations from 2 to 12 poles, and are rated IP67 for protection against water and dust. Ideal for industrial automation, medical, security, and outdoor applications, with a protective cap available for added sealing.
MULTICOMP PRO MP002713 Circular Connector Specifications:
- Material: Nylon66 shell, brass contacts with gold plating
- Fire Resistance: V-0
- Ingress Protection: IP67
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Contact Diameter: 1-3 mm depending on contact , Rated Current: 5-30 A, Rated Voltage: 400-500 V
- Cable Mount, panel mount, and inline configurations available
- Maximum cable outer diameter compatible: 12mm
- Supports solder and screw termination
- Number of contacts: 2 to 12 poles
- Locking mechanism: Bayonet coupling
- Contact Resistance: 1-5 mΩ
- Test Voltage (AC): 1200-1500 V for 1 min
Buy the Multicomp Series T21 IP67 Circular Connectors: MP002713
Order the multicomp T21 IP67 circular connector online today for reliable, weatherproof connectivity suitable for industrial automation, outdoor and harsh environments. Designed with quick bayonet coupling, available in multiple configurations supporting 2 to 12 contacts, and supporting both solder and screw terminations, these connectors ensure secure and durable connections. They are constructed from flame-resistant nylon66 shells with gold-plated brass contacts, rated IP67 for waterproof and dustproof protection, making them ideal for demanding applications. Purchase now for quality, durability, and quick installation.
Get multicomp T21 IP67 connector today—built for harsh environments and secure connections in industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002713?
You can click on the BUY or RFQ button to purchase MP002713 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002713?
You can download the MP002713 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002713?
MULTICOMP PRO
