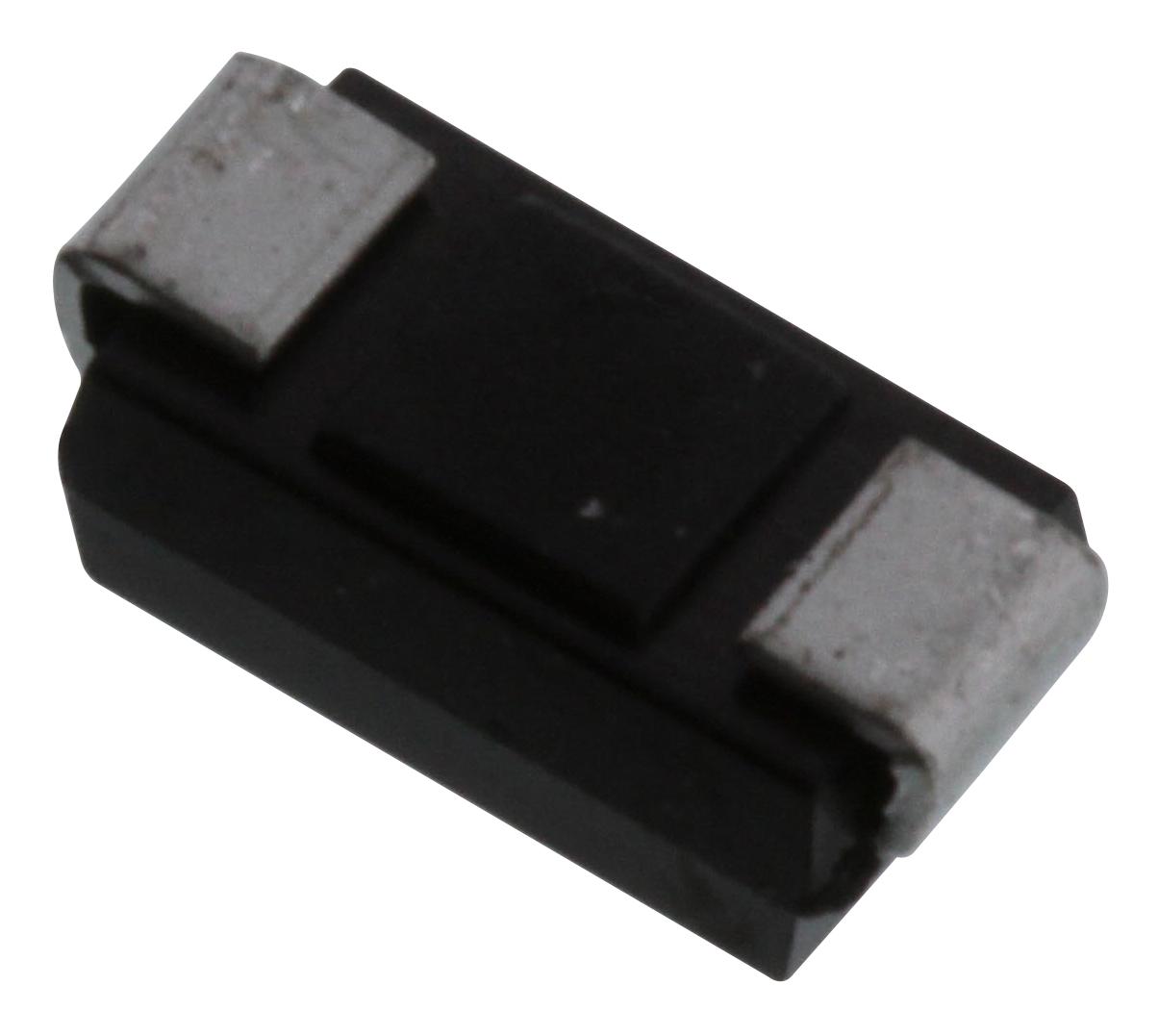

MULTICOMP PRO S1M high capacity rectifier
This surface mount glass passivated rectifier features high current capacity, low reverse leakage, and a robust plastic case with UL 94V-0 flammability rating. Designed for reliable operation in various applications, it can handle reverse voltages from 50V to 1000V and forward currents up to 1A. Its compact mold design allows installation in any position, making it suitable for high-performance power rectification in industrial, electronic, and automation systems. Temperature range from -55°C to +150°C ensures durability in harsh environments, supporting resistive or inductive loads efficiently.
MULTICOMP PRO S1M high capacity rectifier Specifications:
- Case: Molded Plastic, UL 94V-0 flammability rating
- Polarity: Indicated by cathode band
- Weight: 0.002 ounces, 0.053 grams
- Mounting Position: Any
- Reverse Voltage: 50 to 1000 Volts
- Forward Current: 1 Ampere
- Peak Forward Surge Current: 30 A
- Maximum Ratings at 25°C ambient
- Temperature Range: -55°C to +150°C
- Max. RMS Voltage: 70V to 700V (depending on model)
- Maximum Recurrent Peak Reverse Voltage: 50V to 1000V
- Maximum DC Blocking Voltage: 50V to 1000V
- Thermal Resistance junction to ambient: 30 °C/W
- Typical Junction Capacitance: 10 pF
- Dimensions: .065(1.65) x .049(1.25) inches, with various profiles
- Material: Glass passivated chip for improved reliability
- Application: Power rectification in industrial, automation, and electronic circuits
Buy the Multicomp S1M – Reliable Rectifier for Industrial Applications
Purchase the Multicomp Series S1M high capacity rectifier online today to enhance your power circuits with dependable performance. This surface mount component offers excellent rectification capabilities, low leakage, and high voltage handling up to 1000V, making it ideal for industrial and electronic applications. Its robust plastic case with UL 94V-0 classification ensures safety and durability in harsh environments. Enjoy fast delivery and secure shopping—get your surface mount rectifier now to guarantee optimal functionality in your power systems.
Order your Multicomp Series S1M glass passivated rectifier today and ensure reliable power conversion in your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO S1M?
You can click on the BUY or RFQ button to purchase S1M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part S1M?
You can download the S1M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of S1M?
MULTICOMP PRO
