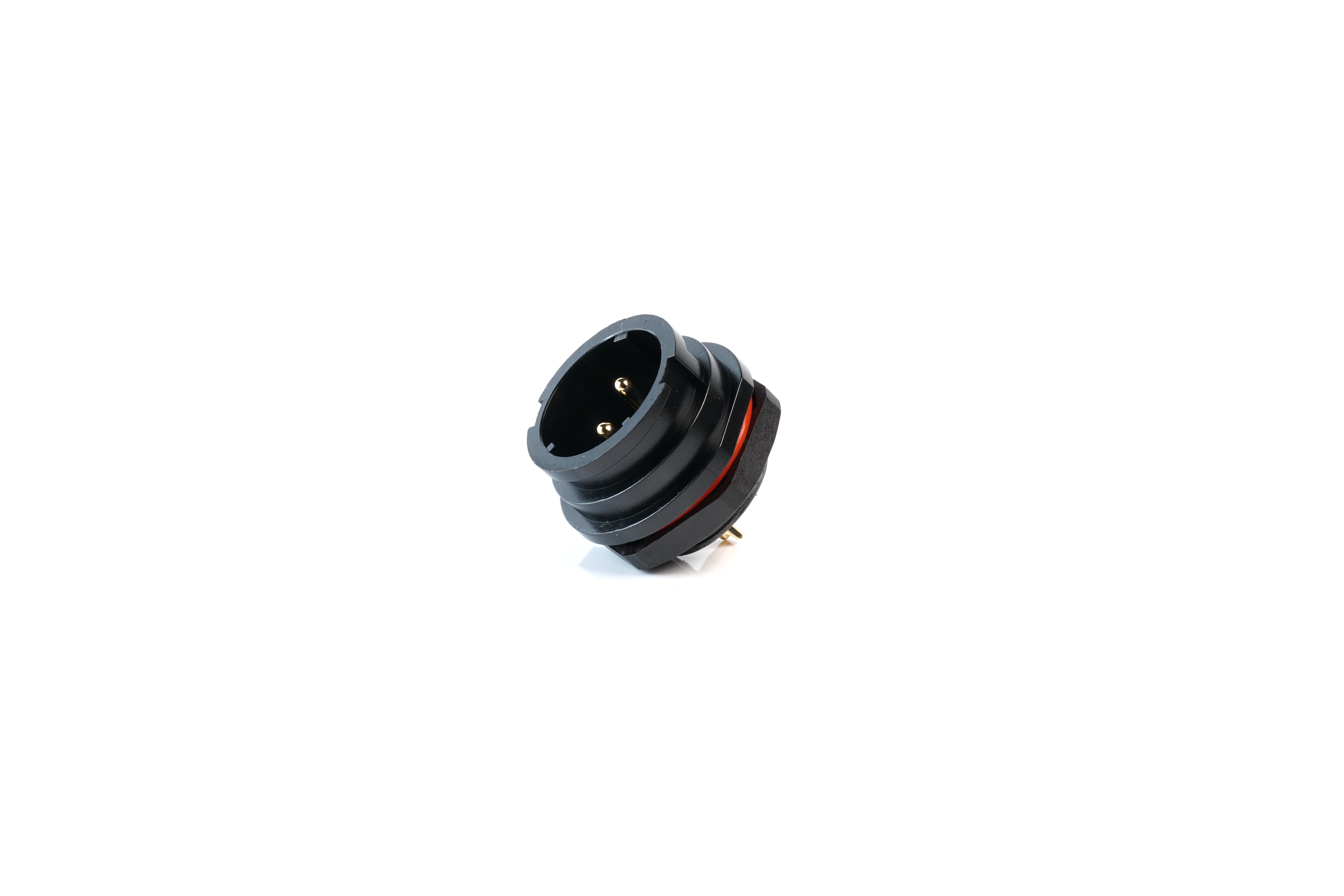

MULTICOMP PRO MP002715 IP67 Connector Set
The MP-T21 IP67 series offers robust connectors with bayonet couplings for quick, secure connections, designed for outdoor and indoor applications. Available in panel, cable, and inline mounts, they provide excellent weather sealing according to IP67 standards. These connectors accommodate 2 to 12 poles, featuring solder and screw termination options for versatility. Suitable for automation, control systems, medical, security, and industrial automation, they ensure reliable performance in harsh environments. An IP67-rated protective cap is included for enhanced durability and environmental protection, making these connectors versatile for various demanding applications.
MULTICOMP PRO MP002715 IP67 Connector Set Specifications:
- Housing Material: Nylon66
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling Type: Bayonet
- Termination Options: Solder, Screw
- Rated Current: 5A to 30A depending on contact number
- Rated Voltage: 400V to 500V
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ to 5 mΩ
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Cable Outer Diameter Range: Up to 12mm
- Protection Cap: IP67 rated, optional
Buy the Buy multicomp:ro IP67 Connectors Part Number MP002715 Online
Order the IP67 connector set MP002715 online today to benefit from durable, weatherproof sealing for demanding environments. These high-performance connectors feature bayonet couplings for quick, secure connections and multiple mounting options including panel, cable, and inline mounts. Suitable for automation, medical, security, and industrial uses, they support 2 to 12 poles with solder or screw terminations for flexible wiring. An IP67-rated protective cap is included, ensuring long-lasting protection against dust and water, making them ideal for outdoor and harsh environment projects.
Buy multicomp:ro IP67 connectors MP002715 now and experience unmatched reliability and weatherproof performance for outdoor and industrial applications.
