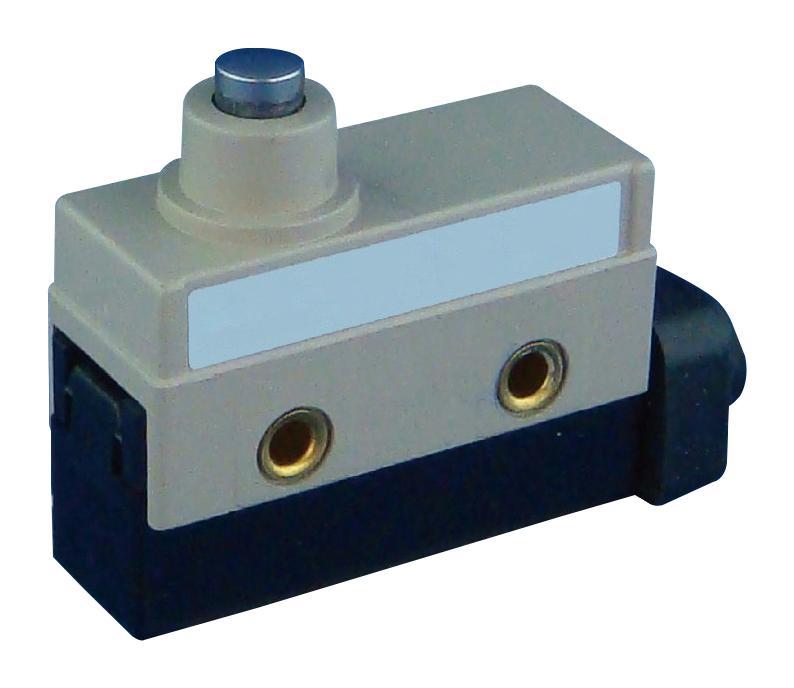

MULTICOMP PRO MC002398 Industrial Enclosure Switch
High-precision, compact enclosure switch with IP67 rating designed for durability and reliable operation in industrial environments. Capable of over 10 million mechanical operations, it features low operating force, UL, CE, CCC, and CUL approvals, making it suitable for various automation and control applications. The switch offers a versatile range of mounting options including panel and plunger mountings, with various lever configurations like roller, hinge, and crossroller. Its insulation resistance exceeds 100MQ, dielectric strength is 2000V AC, and it withstands harsh conditions from -10°C to +80°C with humidity up to 95%. Ideal for automation, machinery, and safety systems.
MULTICOMP PRO MC002398 Industrial Enclosure Switch Specifications:
- Degree of protection: IP67
- Electrical Ratings: IEC 60947-5-1 AC-12 250V AC / 10A, UL508 A300 250V AC /15A, 30V DC /0.1A
- Mechanical durability: 10,000,000 operations min.
- Electrical durability: 500,000 operations min.
- Operating Speed: 0.05mm/s to 0.5m/s
- Insulation Resistance: 100MQ min. (at 500V DC)
- Contact Resistance: 15mQ max. (initial)
- Dielectric Strength: 2000V AC between current-carrying parts and ground, and across terminals
- Rated Insulation Voltage: 1000V AC
- Pollution Degree: 3
- Short-circuit Protective Device: 10A fuse gG type
- Rated Open Thermal Current: 10A
- Operating Temperature Range: -10°C to +80°C
- Humidity Range: 35% to 95% RH
- Vibration Resistance: 1.5mm double amplitude, 10-55Hz
- Shock Resistance: 300m/sec²
- Weight: varies depending on model from 91.1g to 115.39g
- Operating Force: range 2.75N to 11.8N depending on model
- Travel: 1.5mm to 3mm
- Durability: Mechanical 10 million operations, Electrical 500,000 operations
- Part Numbers: MC002398, MC002399, MC002400, MC002401, MC002402, MC002403, MC002404, MC002405, MC002406, MC002407
Buy the Multicomp U+2013 Reliable Switches for Industrial Applications
Purchase the high-durability industrial enclosure switch from Multicomp Pro online today. Suitable for automation and safety systems, it offers IP67 protection, over 10 million mechanical operations, UL and CE approvals, and versatile mounting options. Designed to operate reliably from -10°C to +80°C with humidity up to 95%, this switch ensures long-lasting performance in harsh environments. Easy to install and maintain, it is ideal for controlling machinery, safety systems, and automation projects, ensuring safety and operational efficiency.
Get Multicomp MC002398 today—built for precision and long-lasting durability in industrial environments.
