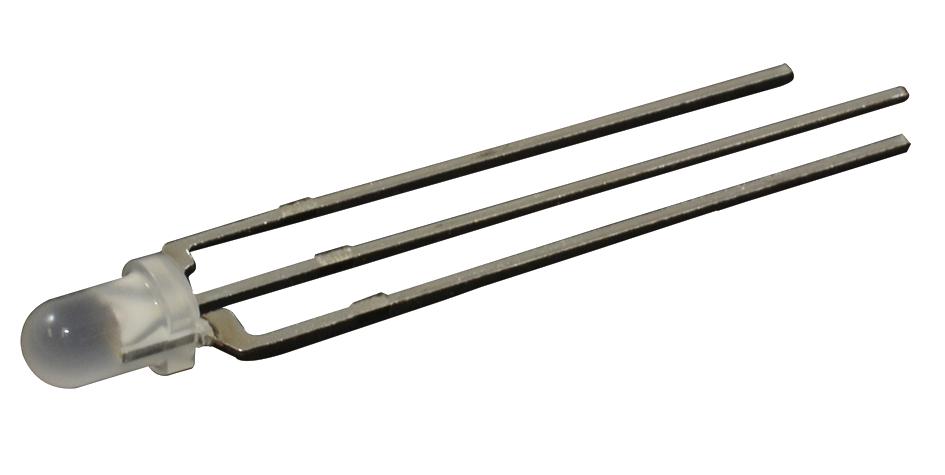

MULTICOMP-PRO MCL039PURGW Multi-Color LED
The MCL039PURGW is a high-quality multi-color LED featuring super red and green emission with wavelengths of 660nm and 568nm. Constructed with AlIGas/GaP dice and a white diffused lens, it offers excellent visibility at a 176° viewing angle. Designed for durability, it operates safely within a temperature range of -40°C to 85°C and withstands lead soldering temperatures up to 260°C for 5 seconds. Ideal for indicator lighting and signaling, it provides reliable performance in various electronic applications, ensuring long-lasting illumination and high brightness for professional electronic projects.
MULTICOMP-PRO MCL039PURGW Multi-Color LED Specifications:
- Dice Material: AlIGas/GaP
- Emitted Colours: Super Red, Green
- Peak Wavelength: 660nm (Red), 568nm (Green)
- Lens Colour: White Diffused
- Viewing Angle: 176°
- Luminous Intensity: 30/10 med
- Reverse Voltage: 5V
- Reverse Current: 10μA at Ve=5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Forward Voltage: 1.7V (Red), 1.8-2.1V (Green), Max 2.6V
- Forward Current: Recommended 20mA, Peak 100mA at 1/10 duty cycle
- Peak Wavelength: 660nm (Red), 568nm (Green)
- Spectral Line Half-Width: 20/30 nm
- Viewing Angle: 76°
Buy the Multicomp Series Multi-Colour LED: MCL039PURGW
Order the multicomp MCL039PURGW multi-color LED online today for reliable, bright red and green illumination perfect for signaling and lighting in electronic projects. Engineered with AlIGas/GaP dice, it features a white diffused lens, a wide 176° viewing angle, and operates in a temperature range from -40°C to 85°C. This durable LED withstands lead soldering temperatures up to 260°C for 5 seconds, ensuring long-lasting performance. Ideal for professional applications, it provides consistent brightness and visibility, making it the perfect choice for engineers and technicians seeking quality indicator lighting components.
Get multicomp MCL039PURGW multi-color LED today—designed for high visibility and durable performance in electronic indicator applications.
