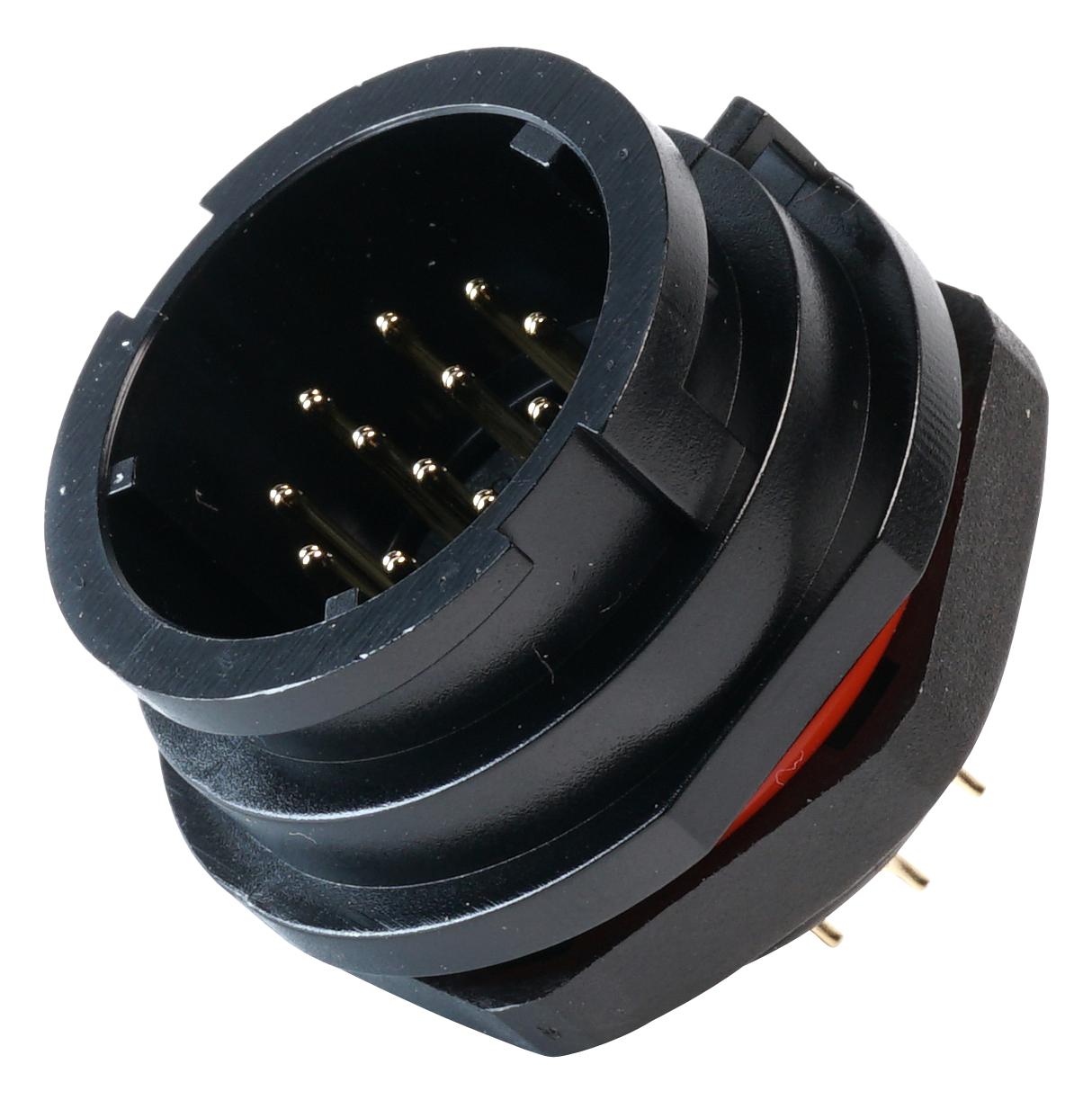

MULTICOMP-PRO MP002718 IP67 Circular Connectors
The MP-T21 IP67 series connectors are rugged, weatherproof solutions with bayonet coupling for quick, secure connections in various configurations. Available in panel mount, cable mount, and in-line options, they support both solder and screw terminations, fitting cable diameters up to 12mm. Designed to meet IP67 standards, they offer durability for outdoor and industrial environments. These versatile connectors come in different pole counts, including 2, 3, 4, 5, 7, 9, and 12 contacts. Additional IP67 dust caps are available for sealing and protection, making them suitable for automation and industrial applications.
MULTICOMP-PRO MP002718 IP67 Circular Connectors Specifications:
- Material: Nylon66 shell, insert PPS, brass contacts with gold plating
- Connectivity: Solder and screw termination options
- IP Rating: IP67 for water and dust resistance
- Coupling Mechanism: Bayonet
- Cable Diameter Range: Up to 12mm
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ
- Rated Current: 5-30A depending on contact
- Rated Voltage: 400-500V
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Dimensions: Fits 21mm panel cut-out, cable diameter up to 12mm
- Additional: Dust caps available for sealing
Buy the Multicomp Series IP67 Circular Connectors 12-Pin: MP002718
Get the latest IP67 circular connectors from Multicomp. Designed for rugged outdoor and industrial environments, these versatile connectors feature bayonet coupling, supporting multiple configurations with solder or screw terminations. Suitable for indoor and outdoor use, they support cable diameters up to 12mm and have a rated current up to 30A. Ensure secure, water-resistant connections in automation, medical, security, or test applications. Compatible with different pole counts including 2, 3, 4, 5, 7, 9, and 12, with dust caps available for added protection. Shop online now for reliable performance.
Order your Multicomp IP67 series connectors today and ensure dependable, weatherproof connections for your industrial projects.
