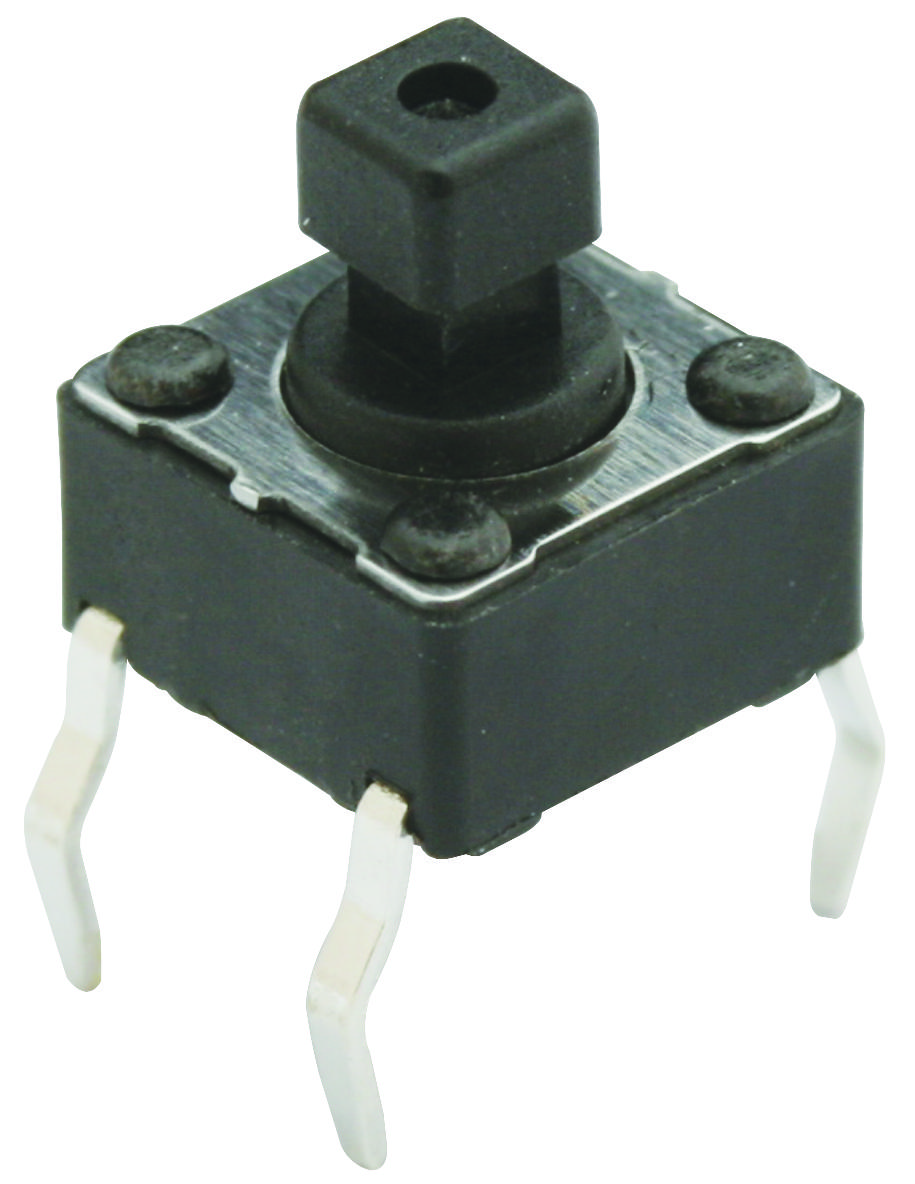

MULTICOMP PRO MC32865 Tactile Switch
This tactile switch features a stainless steel cover and contact disc with silver cladding, rated for 50mA at 12VDC, with a maximum of 1,000,000 cycles. It is designed for high durability with a low contact resistance of 100mΩ and an insulation resistance of 100MΩ at 500VDC. The switch operates within -25°C to +70°C and is made from UL94V-0 nylon thermoplastic, providing excellent heat resistance. With a stroke of 0.35±0.1mm and stop strength of up to 3kgf, it suits various demanding electronic applications and environments.
MULTICOMP PRO MC32865 Tactile Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min at 500VDC
- Dielectric Strength: 250VAC / 1 min
- Stroke: 0.35±0.1mm
- Stop Strength: Max. 3kgf
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Material: Cover stainless steel, contact stainless steel with silver clad, terminals brass with silver plating, base and stem UL94V-0 Nylon
- Cycle Life: Up to 1,000,000 cycles (black), 200,000 cycles (brown)
- Dimensions: Not specified, compatible with standard tactile switch sizes
Buy the Electronic Switch Series Tactile: MC32865
Experience the reliability of the tactile switch MC32865 by ordering online today. Designed with stainless steel and high-quality thermoplastic, it provides long-lasting performance with up to 1,000,000 cycles. Suitable for demanding electronic applications, the switch operates within -25°C to +70°C, ensuring stability in various environments. Its compact size and robust build make it ideal for custom circuits, automation, and control systems. Purchase now and benefit from fast shipping and trusted quality for your electronic projects.
Order your Multicomp Pro tactile switch MC32865 today and enhance your electronic projects with high durability and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32865?
You can click on the BUY or RFQ button to purchase MC32865 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32865?
You can download the MC32865 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32865?
MULTICOMP PRO
