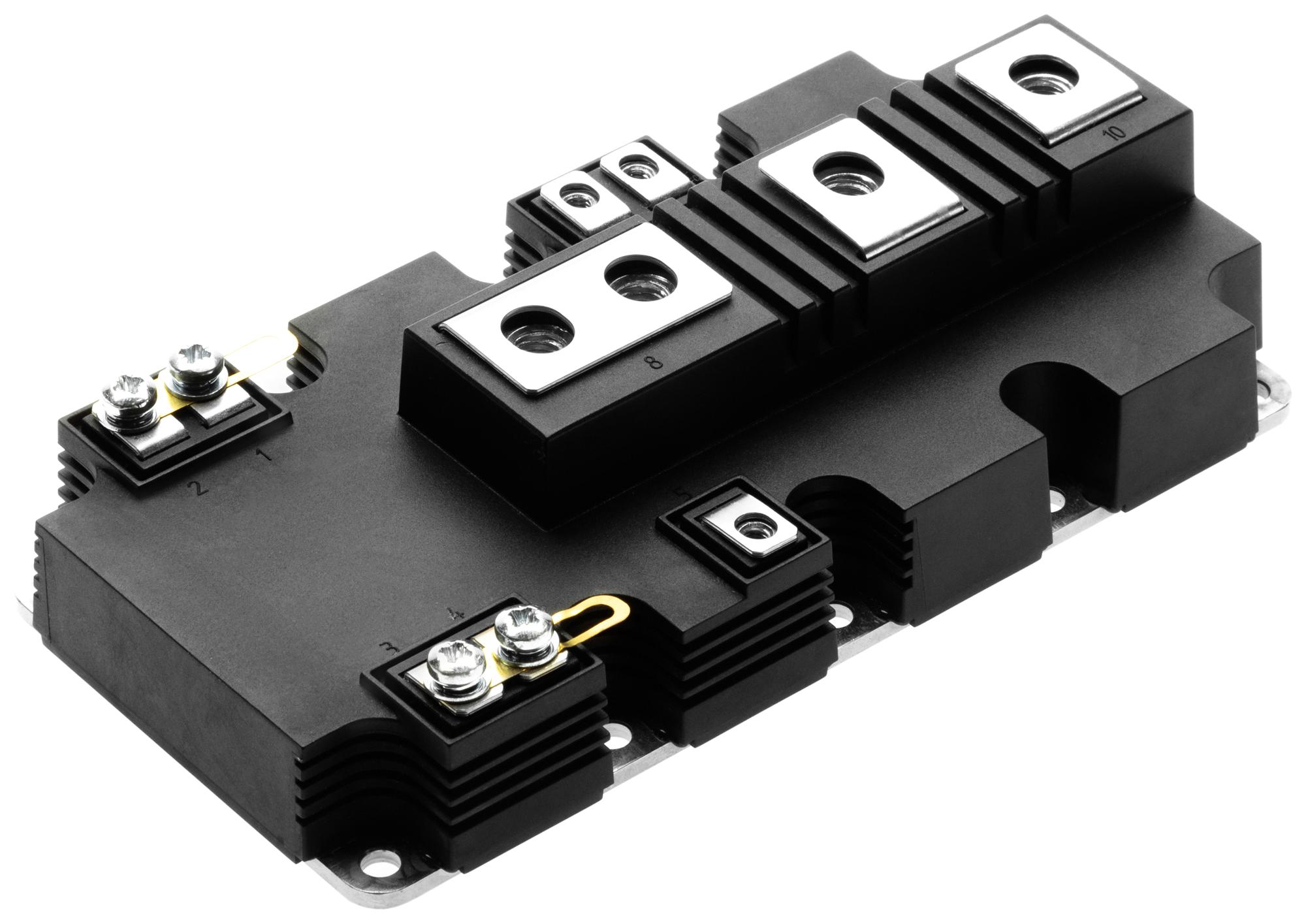

MULTICOMP PRO MPIM900H212TG5 IGBT Half Bridge Module
The multicomp Pro MPIM900H212TG5 is a high-performance half bridge IGBT module designed for industrial applications requiring reliable power switching. It features a 1200V collector-emitter voltage, 900A continuous collector current, and 1800A peak for short circuits, making it ideal for motor drives, high-power converters, renewable energy systems, and inverters. Constructed with Cu base and Al2O3 insulation, it offers high thermal cycling capabilities, a low inductance design, and RoHS compliance. Enhanced field stop technology and robust thermal management ensure durability and operational stability in demanding environments.
MULTICOMP PRO MPIM900H212TG5 IGBT Half Bridge Module Specifications:
- Collector-emitter voltage Vce: 1200 V
- Continuous collector current Ic: 900 A (at 90°C)
- Peak collector current Ipeak: 1800 A (at 1ms)
- Power dissipation Pmax: 4.23 kW at 25°C
- Isolation voltage Visol: 4000 V
- Thermal resistance junction to case: 55°C/W
- Thermal resistance case to heatsink: 14°C/W (with mounting torque 5Nm)
- Gate-emitter voltage Vge: +20 V
- Gate threshold voltage Ve(th): 5-7 V
- Collector-emitter saturation voltage Vce(sat): 2.1-2.6 V at 900A
- Operating temperature range: -40°C to 150°C
- Creepage distance terminal to heatsink: 33mm
- Internal insulation: Al2O3
- Baseplate material: Copper
- Module weight: 900g
- RoHS compliant
Buy the Multicomp Pro MPIM900H212TG5 – Reliable IGBT Half Bridge for Industrial Applications
Secure your multicomp Pro MPIM900H212TG5 half bridge IGBT module online today and experience dependable switching performance for industrial motor drives, high-power converters, and renewable energy systems. Designed with advanced trench gate technology, enhanced thermal cycling, and low inductance construction, this module ensures your applications operate efficiently and reliably under demanding conditions. Its high current capacity, RoHS compliance, and robust insulation make it the ideal choice for engineering professionals seeking durable and high-performance power modules for industrial automation and energy projects.
Order your multicomp Pro series MPIM900H212TG5 today and enhance your power conversion projects with high current capacity, robust thermal management, and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPIM900H212TG5?
You can click on the BUY or RFQ button to purchase MPIM900H212TG5 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPIM900H212TG5?
You can download the MPIM900H212TG5 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPIM900H212TG5?
MULTICOMP PRO
