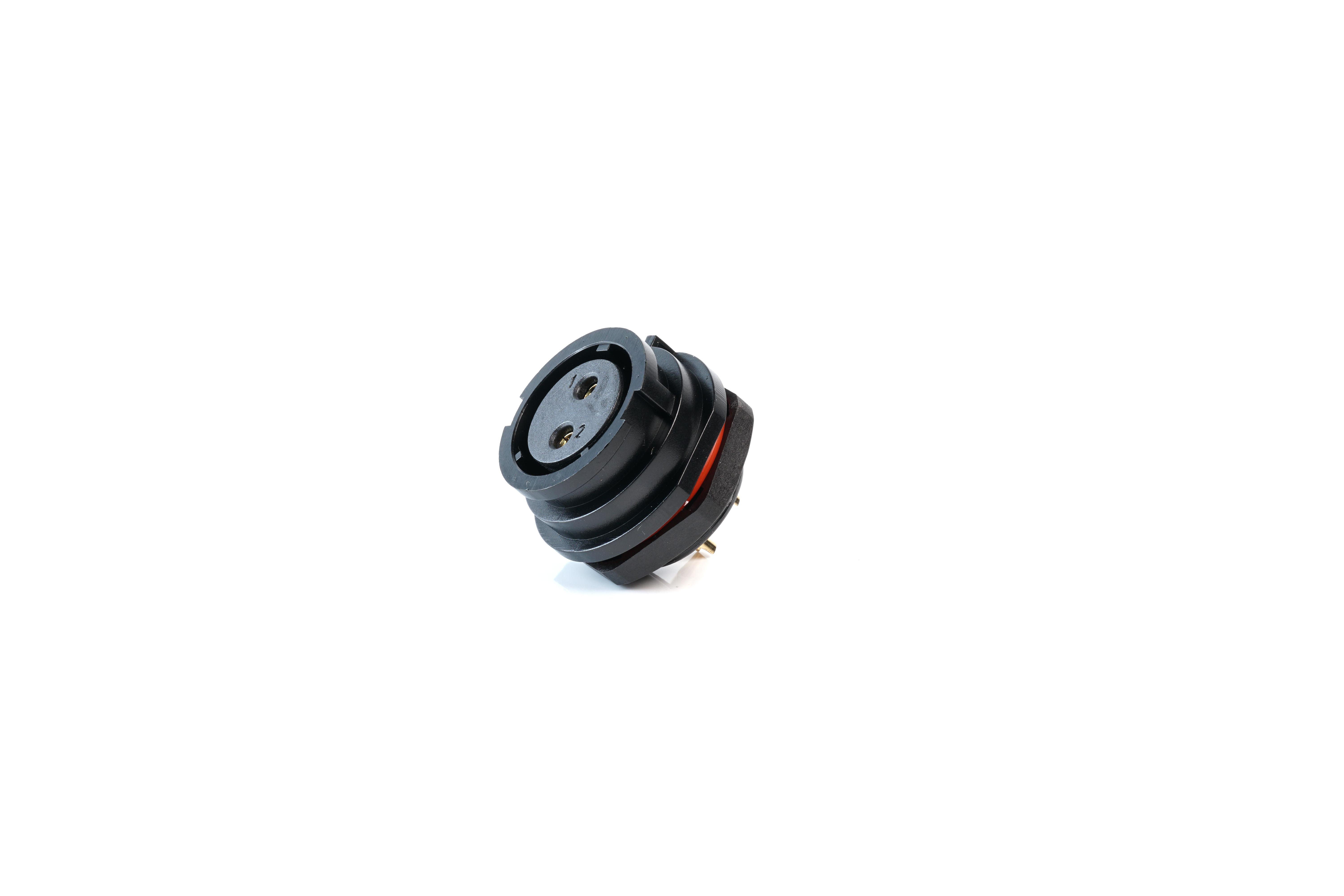

MULTICOMP PRO MP002721 Weatherproof Connector
The MP-T21 IP67 series connectors are robust, weatherproof connectors with bayonet couplings for quick connection. Suitable for indoor and outdoor use, these IP67-rated connectors come in panel, cable, and in-line mount options to ensure reliable cable-to-panel or cable-to-cable connections. They support solder and screw terminations and feature various pole configurations, including 2, 3, 4, 5, 7, 9, and 12 positions. Designed for tough environments, they include an optional protective cap, making them ideal for automation, industrial, medical, security, and measurement applications.
MULTICOMP PRO MP002721 Weatherproof Connector Specifications:
- IP67 rated for weatherproof connection
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Coupling Type: Bayonet for quick connection
- Supported Mountings: Panel, cable, and inline cable mount
- Dimensions: Compatible with 21mm cut-out, outer diameter range up to 12mm
- Contact Configurations: 2, 3, 4, 5, 7, 9, 12 poles
- Termination: Solder and screw options
- Current Rating: 5A to 30A depending on contact size
- Voltage Rating: Up to 500V AC
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Insulation Resistance: 2000 MQ
- Fire Resistance: V-0
- RoHS Compliant
- Additional: IP67 sealed cap available for protection
Buy the Buy multicomp IP67 Connectors Part Number MP002721 Online
Enhance your projects with the multicomp IP67 connector series featuring durable construction, quick bayonet coupling, and versatile mounting options. Suitable for harsh environments, these connectors provide reliable electrical connections with solder and screw terminations, supporting various pole configurations. Designed to resist weather and dust, they ensure optimal performance in industrial automation, medical, security, and measurement applications. Their IP67 rating guarantees protection against water and dust ingress, making them the perfect choice for outdoor and rugged environments. Order online now and secure quality connection solutions effortlessly.
Order your multicomp series MP002721 IP67 connector today and ensure reliable, weatherproof connections for your industrial or outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002721?
You can click on the BUY or RFQ button to purchase MP002721 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002721?
You can download the MP002721 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002721?
MULTICOMP PRO
